FUEL COCK (MODEL X)

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

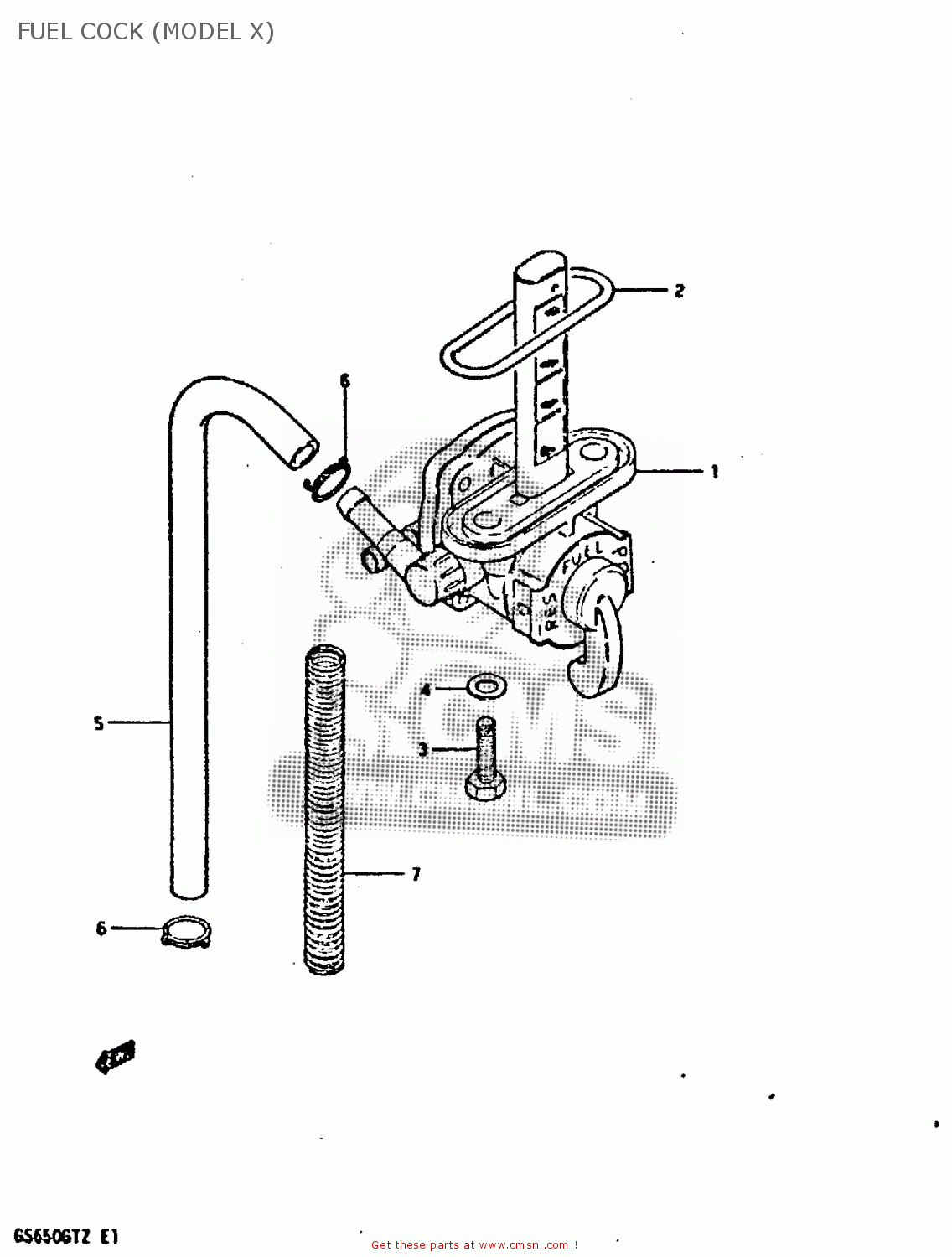

Fuel cock (model x) diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FUEL COCK (MODEL X) GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FUEL COCK (MODEL X) GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1

4430034570
ref: 1

COCK ASSEMBLY,FUEL

€ 106.00

2

4434849170
ref: 2

O RING

€ 3.50

3

0912806006
ref: 3

BOLT(6X20)

€ 2.00

4

0916806010
ref: 4

GASKET

€ 2.00

5

0934307026
ref: 5

HOSE

€ 17.50

6

0940110403
ref: 6

CLIP

€ 7.00

7

0944013017
ref: 7

SPRING

€ 14.50
