REAR BRAKE

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

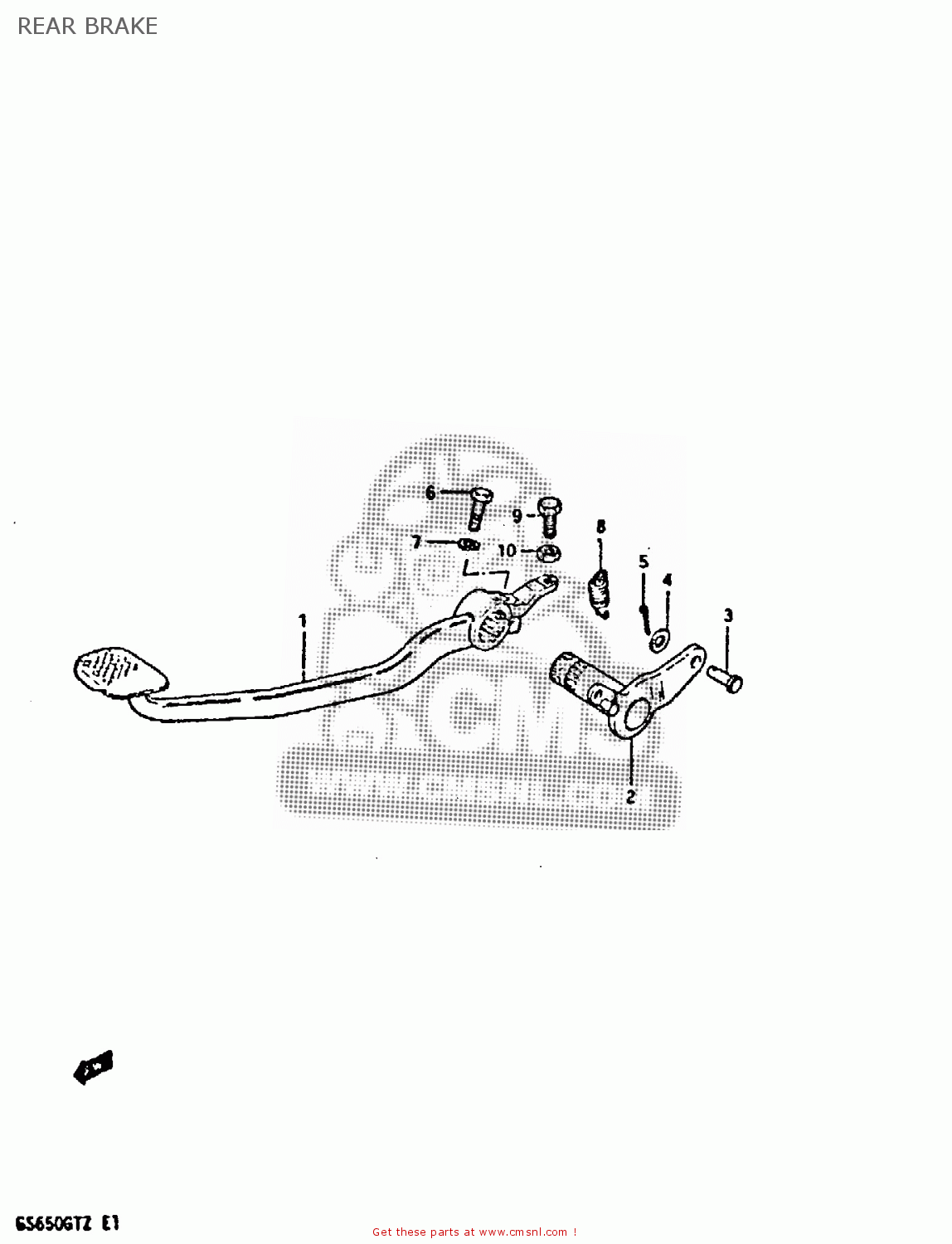

Rear brake diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR BRAKE GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR BRAKE GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1

4311034200
ref: 1

PEDAL,BRAKE

€ 52.00

2

4312034200
ref: 2

ARM,BRAKE PEDAL

€ 0.00

3

0920006029
ref: 3

PIN

€ 1.50

4

0832221068
ref: 4

WASHER

€ 2.00

5

0411120158
ref: 5

PIN

€ 1.50

6

0110708258
ref: 6

BOLT

€ 2.50

7

0832121088
ref: 7

LOCK WASHER

€ 2.00

8

0944314013
ref: 8

SPRING

€ 21.50

9

0110706208
ref: 9

BOLT

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50
