CYLINDER

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

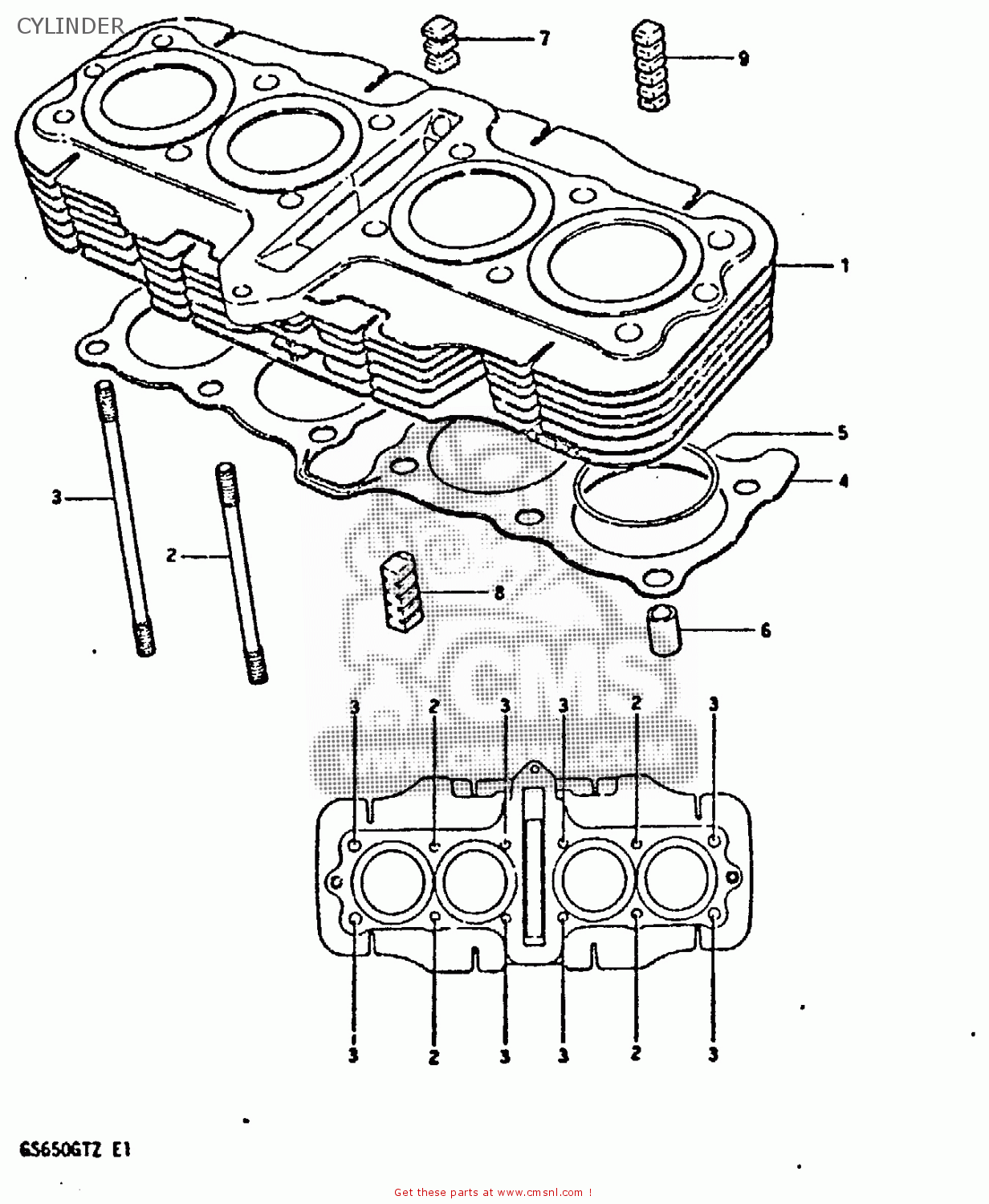

Cylinder diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1121034202
ref: 1

CYLINDER

€ 0.00

0910808061
ref: 2

BOLT,STUD

€ 7.00

0910808062
ref: 3

BOLT,STUD

€ 4.50

1124134201
ref: 4

GASKET,CYLINDER (MCA)

€ 24.00

0928061001
ref: 5

O RING(D:2,ID:61)

€ 4.00

0920613001
ref: 6

PIN

€ 2.50

1125134200
ref: 7
TO 11253-34200

PAD,CYLINDER

€ 6.50

1125234200
ref: 8
TO 11253-34200

PAD,CYLINDER

€ 6.50

1125334200
ref: 9

PIN,EXHAUST VALVE

€ 6.50
