LEFT HANDLE SWITCH (MODEL Z)

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

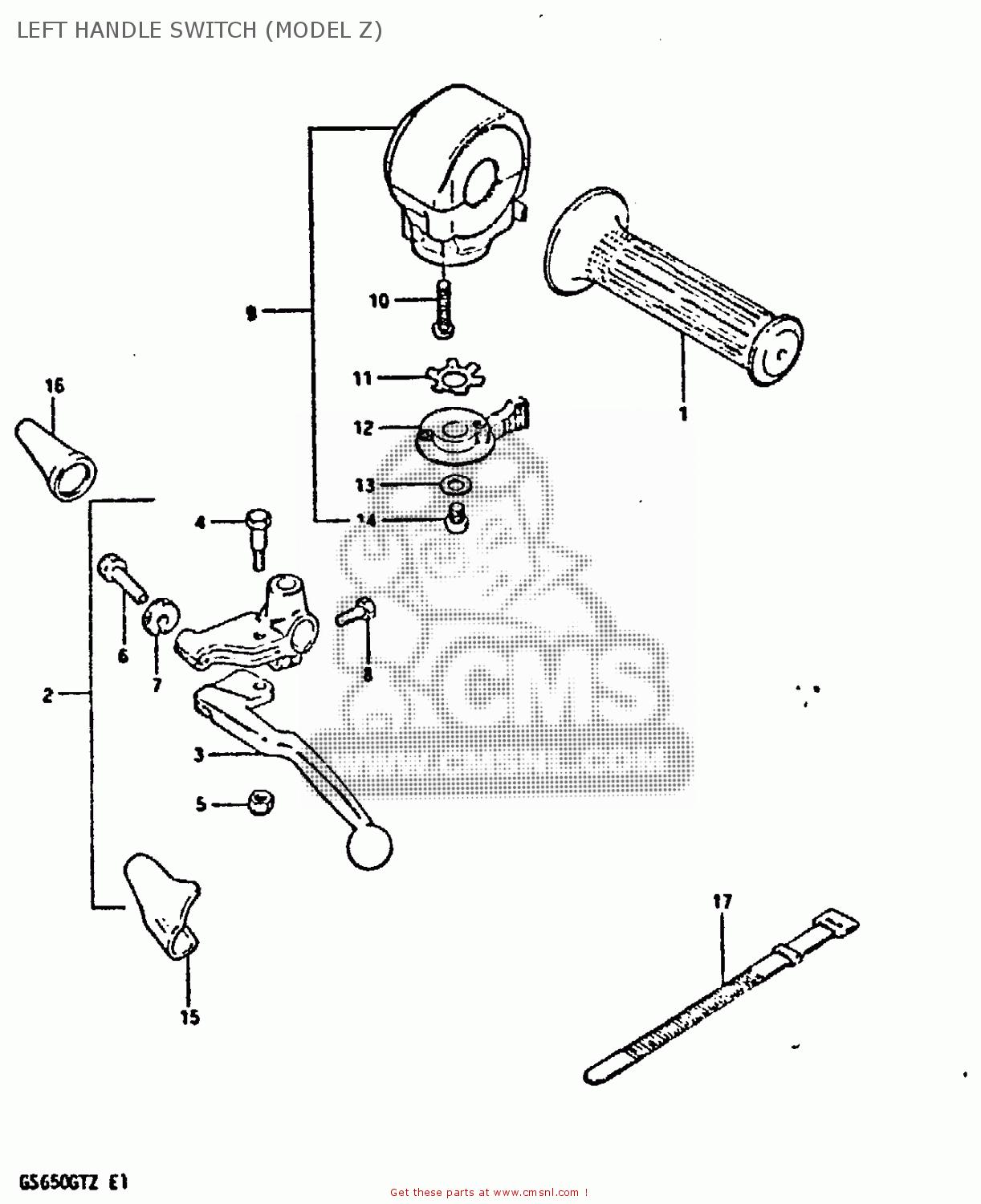

Left handle switch (model z) diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

5721145030
ref: 1

GRIP,LEFT

€ 18.50

5750049102
ref: 2

LEVER ASSEMBLY

€ 49.50

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

5743111011
ref: 4

BOLT,LEVER

€ 6.00

0831921068
ref: 5

NUT 6MM

€ 2.00

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

5745118621
ref: 8

BOLT

€ 3.00

9-1

3740045150
ref: 9-1

SWITCH ASSY, HANDLE LH

€ 161.00

9-2

3740045110
ref: 9-2

SWITCH ASSY, HANDLE LH

€ 161.00

0211205258
ref: 10

SCREW

€ 2.00

3757345110
ref: 11

WASHER

€ 2.00

3757145110
ref: 12

LEVER,STARTER

€ 19.00

0832211068
ref: 13

WASHER 6MM

€ 2.00

0211206088
ref: 14

SCREW

€ 2.00

5766131000
ref: 15

COVER,CLUTCH LEVER

€ 5.50

5827331000
ref: 16

BOOT,CLUTCH CABLE

€ 2.50

0940712402
ref: 17

CLAMP(L:120)

€ 3.00

LEFT HANDLE SWITCH (MODEL Z)
