FRAME COVER (MODEL Z)

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

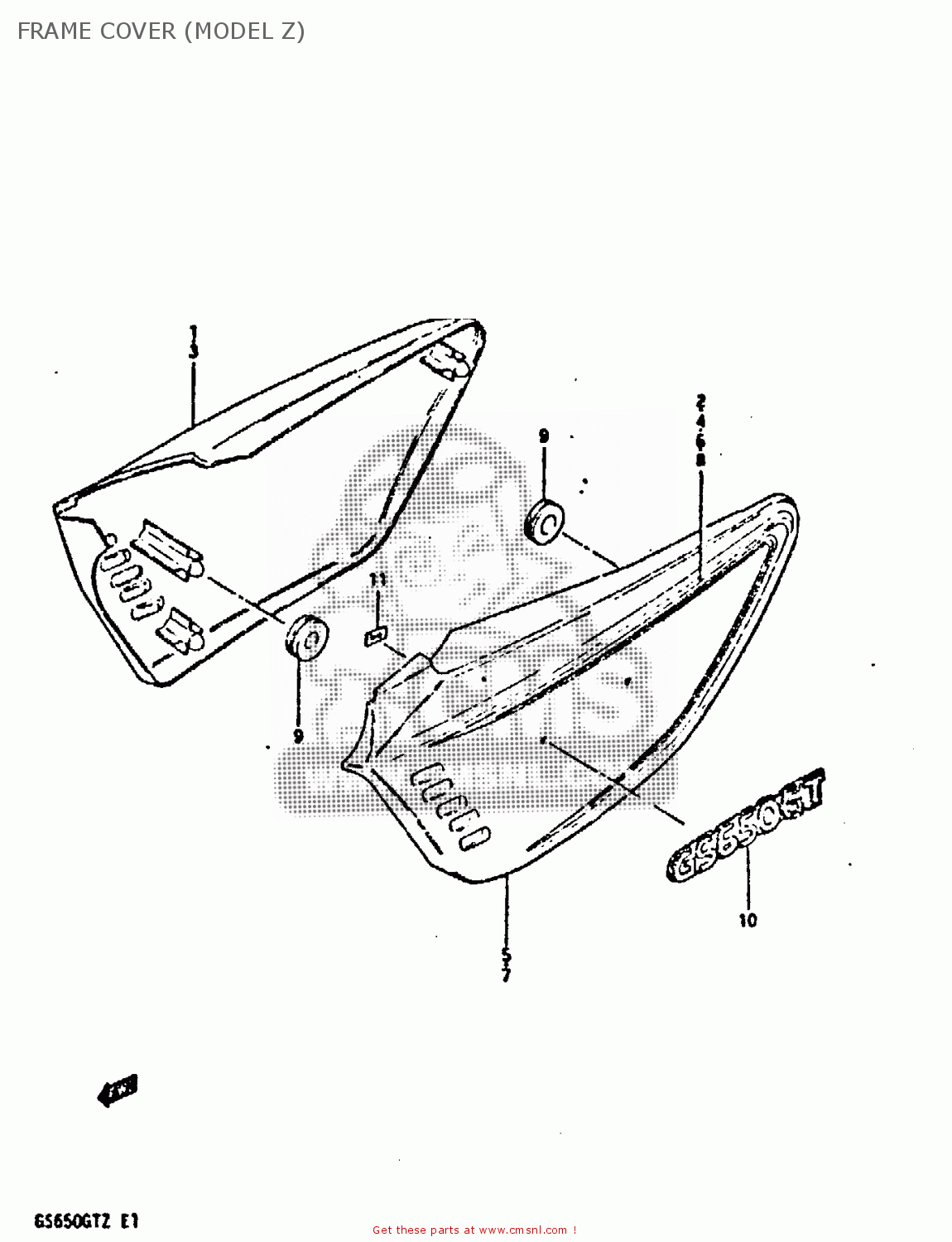

Frame cover (model z) diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

471103421013Z
ref: 1

COVER,FRAME,RIGHT

€ 57.50

681363421070G
ref: 2

TAPE,FRAME COVER,RIGHT

€ 0.00

471103421010S
ref: 3

COVER, FRAME RH (MAROON)

€ 57.50

681363421071F
ref: 4

TAPE,FRAME COVER

€ 0.00

472103421013Z
ref: 5

COVER,FRAME,LEFT

€ 109.50

681463421070G
ref: 6

TAPE,FRAME COVER

€ 0.00

472103421010S
ref: 7

COVER, FRAME LH (MAROON)

€ 109.50

681463421071F
ref: 8

TAPE,FRAME COVER

€ 0.00

0932008018
ref: 9

CUSHION

€ 4.00

6813134220
ref: 10

EMBLEM

€ 0.00

0914803002
ref: 11

NUT

€ 3.00
