FUEL TANK (MODEL X)

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

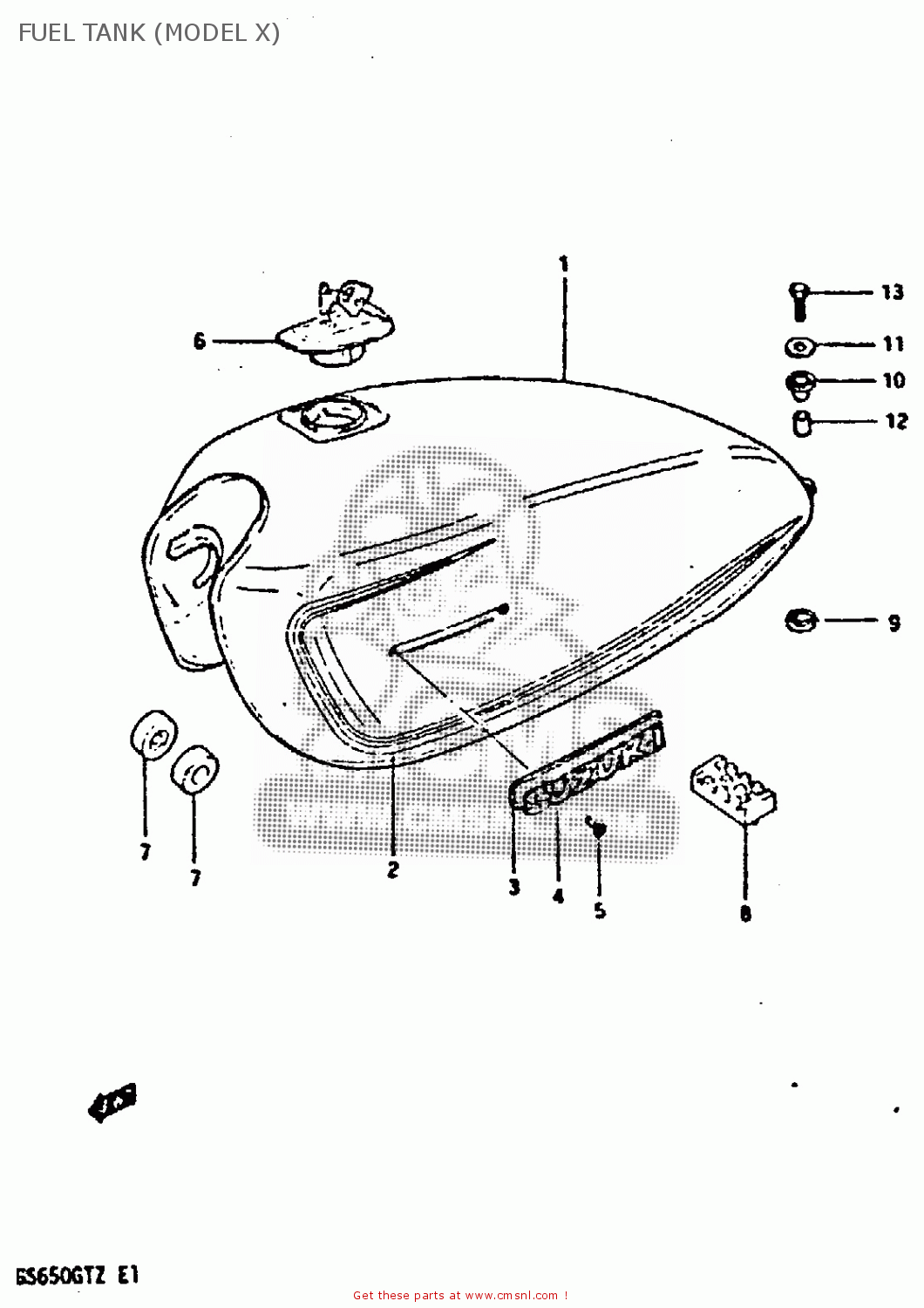

Fuel tank (model x) diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FUEL TANK (MODEL X) GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FUEL TANK (MODEL X) GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FUEL TANK (MODEL X) GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1-1
4410034200019
ref: 1-1
TANK ASSEMBLY,FUEL
€ 447.50
1-2
441003420005L
ref: 1-2
TANK, FUEL (RED)
€ 447.50
2
681103420067M
ref: 2
TAPE SET,FUEL TANK
€ 29.00
3
NOTUSED
ref: 3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
6311111400
ref: 4
EMBLEM
€ 0.00
5
0213203065
ref: 5
SCREW 3X6
0213203065
€ 2.00
6
4420049702
ref: 6
CAP SET,FUEL TANK
€ 121.00
7
0932910007
ref: 7
CUSHION
0932910007
€ 3.00
8
4454134500
ref: 8
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
9
0932014013
ref: 9
CUSHION
0932014013
€ 3.00
10
0932010020
ref: 10
CUSHION
0932010020
€ 4.00
11
0916006004
ref: 11
WASHER (6.5X24X1.6)
0916006004
€ 1.50
12
0918006072
ref: 12
SPACER
0918006072
€ 2.00
13
0110706308
ref: 13
BOLT
0110706308
€ 2.50
