SEAT TAIL COVER (MODEL X)

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

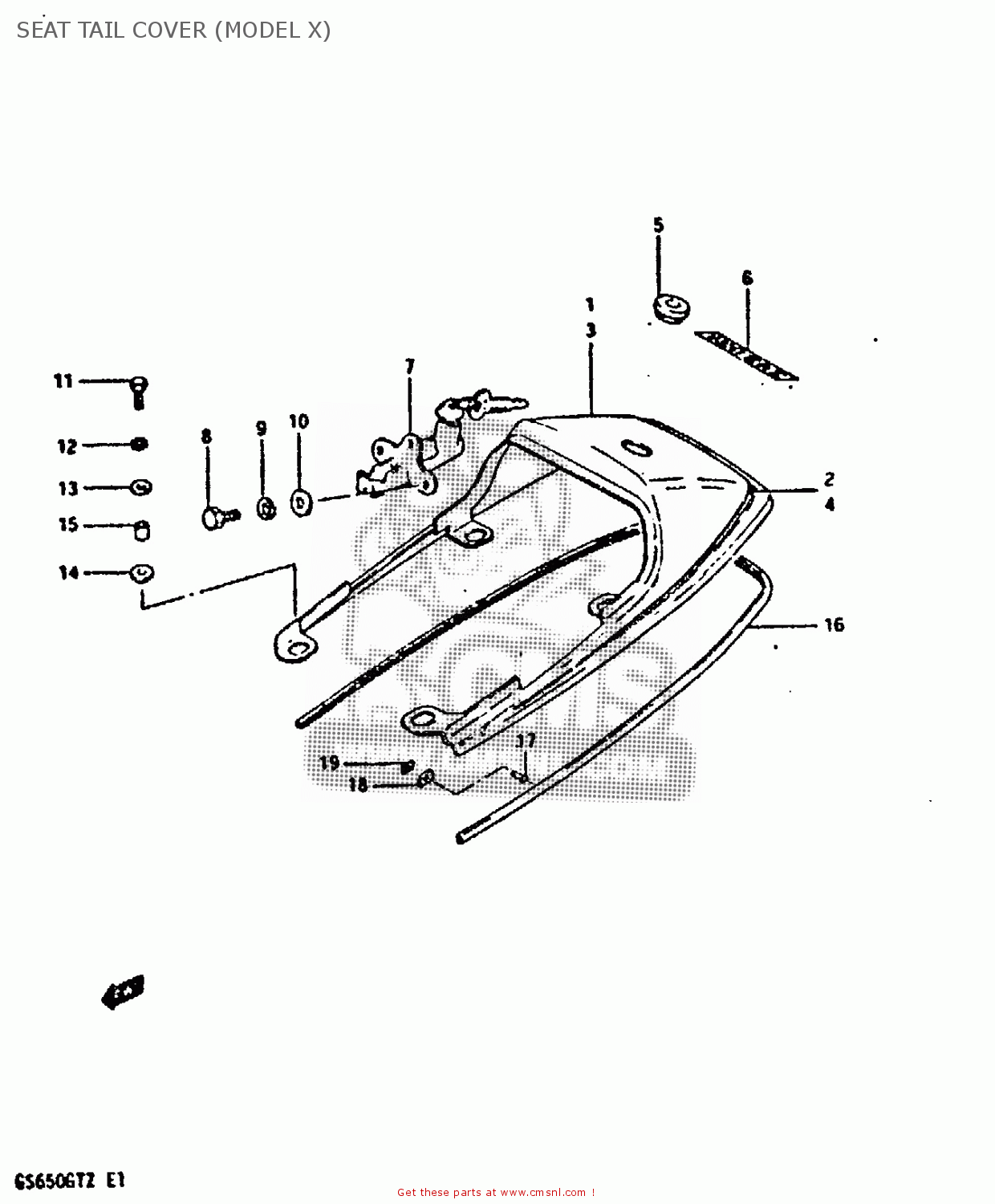

Seat tail cover (model x) diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

4550034200019
ref: 1

COVER ASSEMBLY,SEAT TAIL

€ 0.00

681603420079Y
ref: 2

TAPE SET,BOX SEAT TAIL

€ 20.00

455003420005L
ref: 3

COVER, SEAT TAIL (RED)

€ 0.00

681603420079Z
ref: 4

TAPE SET,BOX SEAT TAIL

€ 20.00

4552249200
ref: 5

GROMMET,SEAT LOCK HOLE

€ 5.50

6816649200998
ref: 6

EMBLEM (GOLD/BLACK)

€ 3.00

9570049830
ref: 7

LOCK SET,SEAT

€ 81.50

0110706128
ref: 8

BOLT

€ 2.00

0832121068
ref: 9

LOCK WASHER

€ 2.50

0832221068
ref: 10

WASHER

€ 2.00

0110706208
ref: 11

BOLT

€ 2.00

0832121068
ref: 12

LOCK WASHER

€ 2.50

0916006012
ref: 13

WASHER(6,5X22X1.6)

€ 2.00

0932010011
ref: 14

CUSHION

€ 5.50

0918007004
ref: 15

SPACER(6.5X10.5X12)

€ 2.50

4552034200
ref: 16

MOLDING,SEAT TAIL COVER

€ 11.50

0922003002
ref: 17

RIVET

€ 3.00

4552834200
ref: 18

CUSHION,SEAT TAIL

€ 2.50

0914803002
ref: 19

NUT

€ 3.00

SEAT TAIL COVER (MODEL X)
