HEADLAMP HOUSING - FRONT FENDER

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

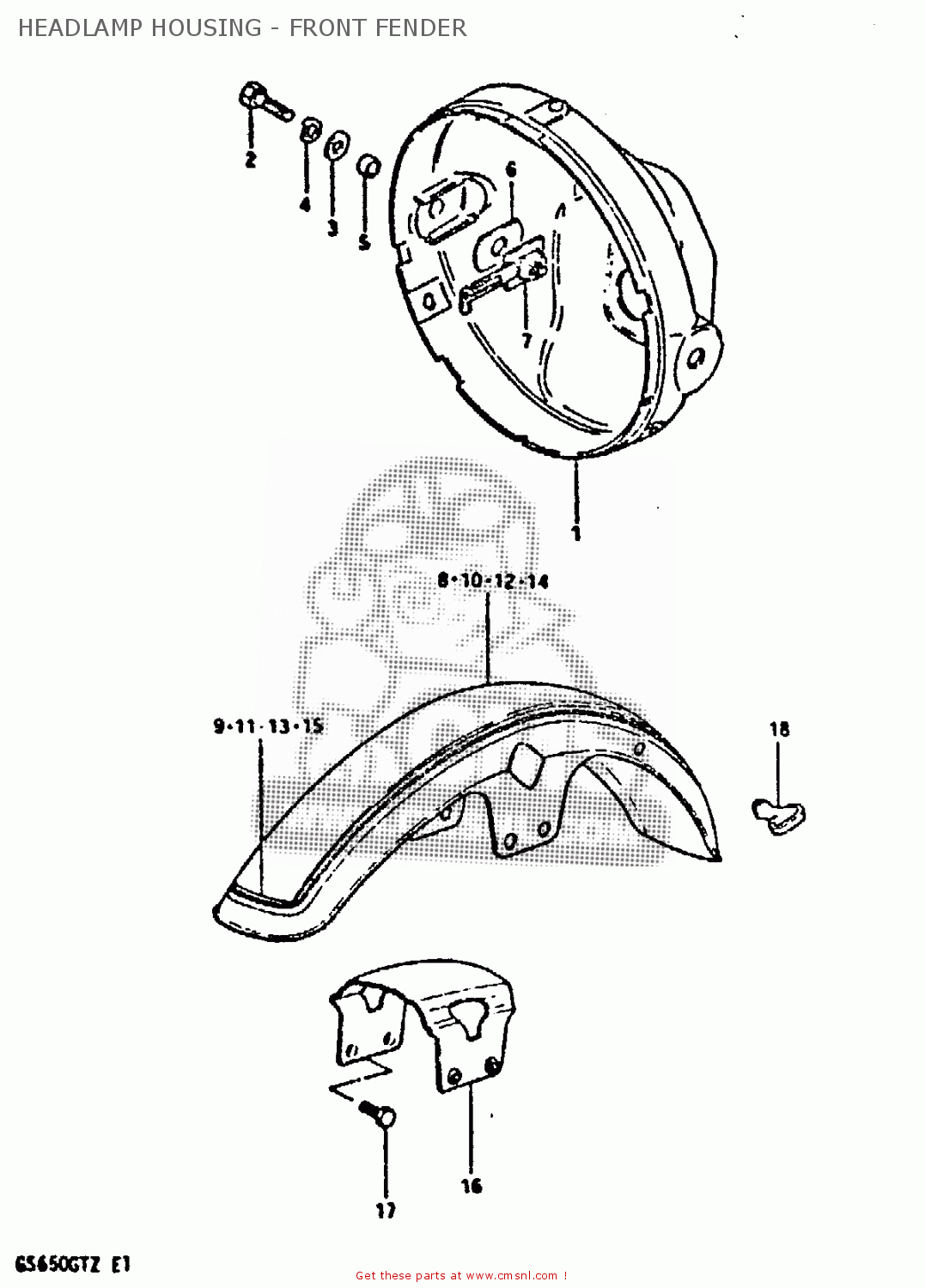

Headlamp housing - front fender diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

HEADLAMP HOUSING - FRONT FENDER GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
HEADLAMP HOUSING - FRONT FENDER GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
HEADLAMP HOUSING - FRONT FENDER GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
5181134500291
ref: 1
HOUSING,HEADLAMP
5181134500291
€ 60.50
2
0120408257
ref: 2
BOLT
0120408257
€ 2.00
3
0832211088
ref: 3
WASHER
0832211088
€ 2.00
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
0918008030
ref: 5
SPACER (8.8X12X7)
0918008030
€ 3.50
6
0932912002
ref: 6
CUSHION
0932912002
€ 3.00
7
5182045000
ref: 7
PLATE,HEADLAMP HOUSING
5182045000
€ 4.00
8
5311134200019
ref: 8
MODEL X
FENDER,FRONT
€ 133.00
9
681503420079Y
ref: 9
MODEL X
TAPE,FRONT FENDER
681503420079Y
€ 27.50
10
531113420005L
ref: 10
MODEL X
FENDER,FRONT
€ 133.00
11
681503420079Z
ref: 11
MODEL X
TAPE,FRONT FENDER
€ 19.50
12
531113420013Z
ref: 12
MODEL Z
FENDER,FRONT
€ 133.00
13
681503421070G
ref: 13
MODEL Z
TAPE,FRONT FENDER
€ 0.00
14
531113420010S
ref: 14
MODEL Z
FENDER, FRONT (BLACK, CANDY IMPERIAL MA
€ 133.00
15
681503421071F
ref: 15
MODEL Z
TAPE SET,FRONT FENDER
€ 27.50
16
5311434200
ref: 16
BRACE,FRONT FENDER
€ 18.00
17
0910008135
ref: 17
BOLT 8X16
0910008135
€ 3.00
18
5862121203A
ref: 18
GUIDE,CABLE
€ 7.50
