REAR CARIPERS

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

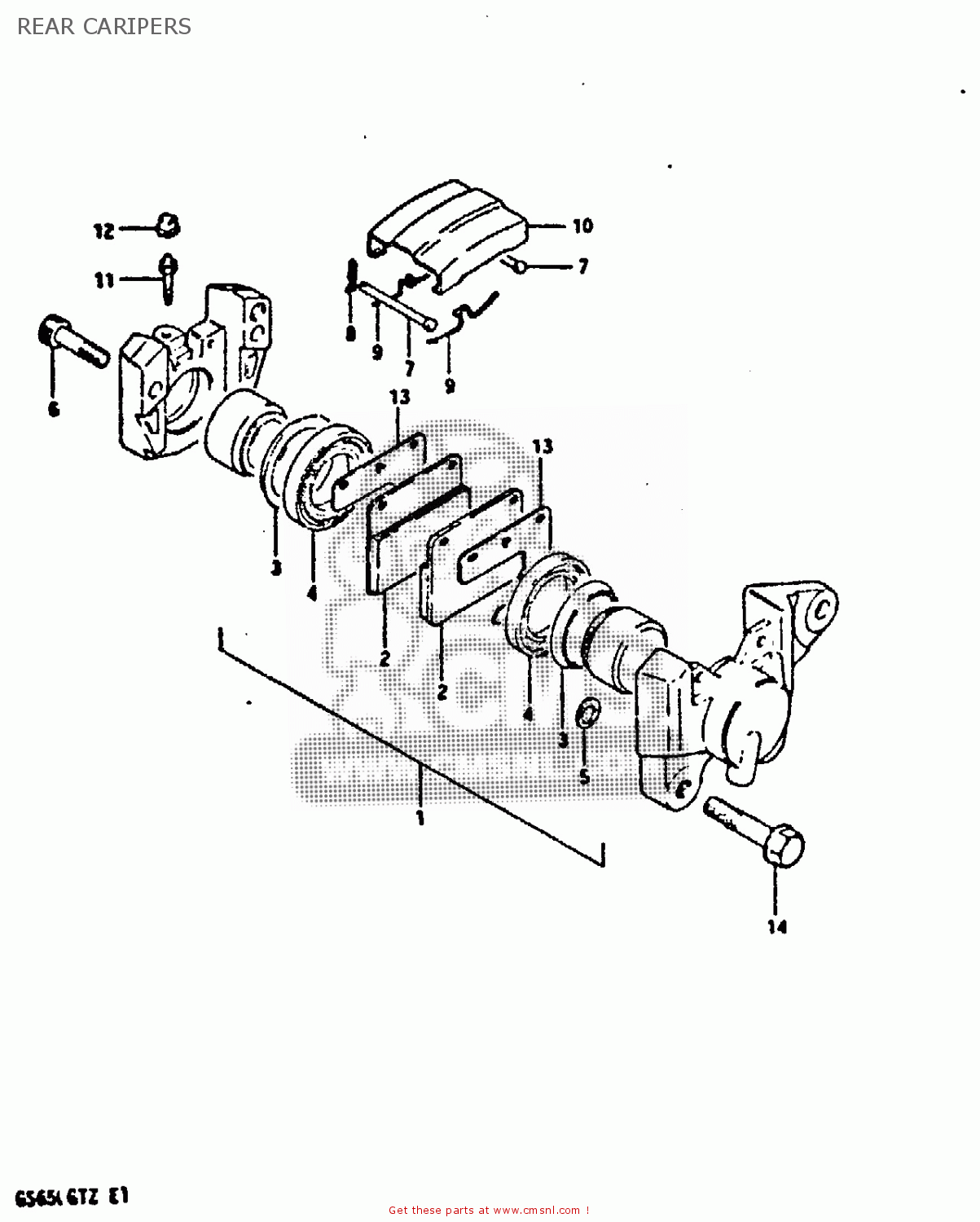

Rear caripers diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR CARIPERS GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR CARIPERS GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

0

6910034200
ref: 0

CALIPER ASSEMBLY,REAR

€ 547.00

1

6910034810
ref: 1

PISTON SET

€ 94.00

2

6913045020
ref: 2

PAD,BRAKE

€ 66.50

3

5910718410
ref: 3

SEAL,PISTON

€ 17.00

4

6910845000
ref: 4

BOOT,PISTON

€ 10.00

5

6910734200
ref: 5

SEAL,JOINT

€ 12.00

6

6914534200
ref: 6

BOLT,CALIPER HOUSING

€ 9.50

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9

6914345001
ref: 9

SPRING

€ 8.00

10

6915145000
ref: 10

COVER,DUST

€ 26.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5912218410
ref: 12

CAP,BREATHER

€ 6.00

13

6915245001
ref: 13

SHIM,RR CALIPER

€ 9.50

14

0152710308
ref: 14

BOLT

€ 3.50
