FRAME

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

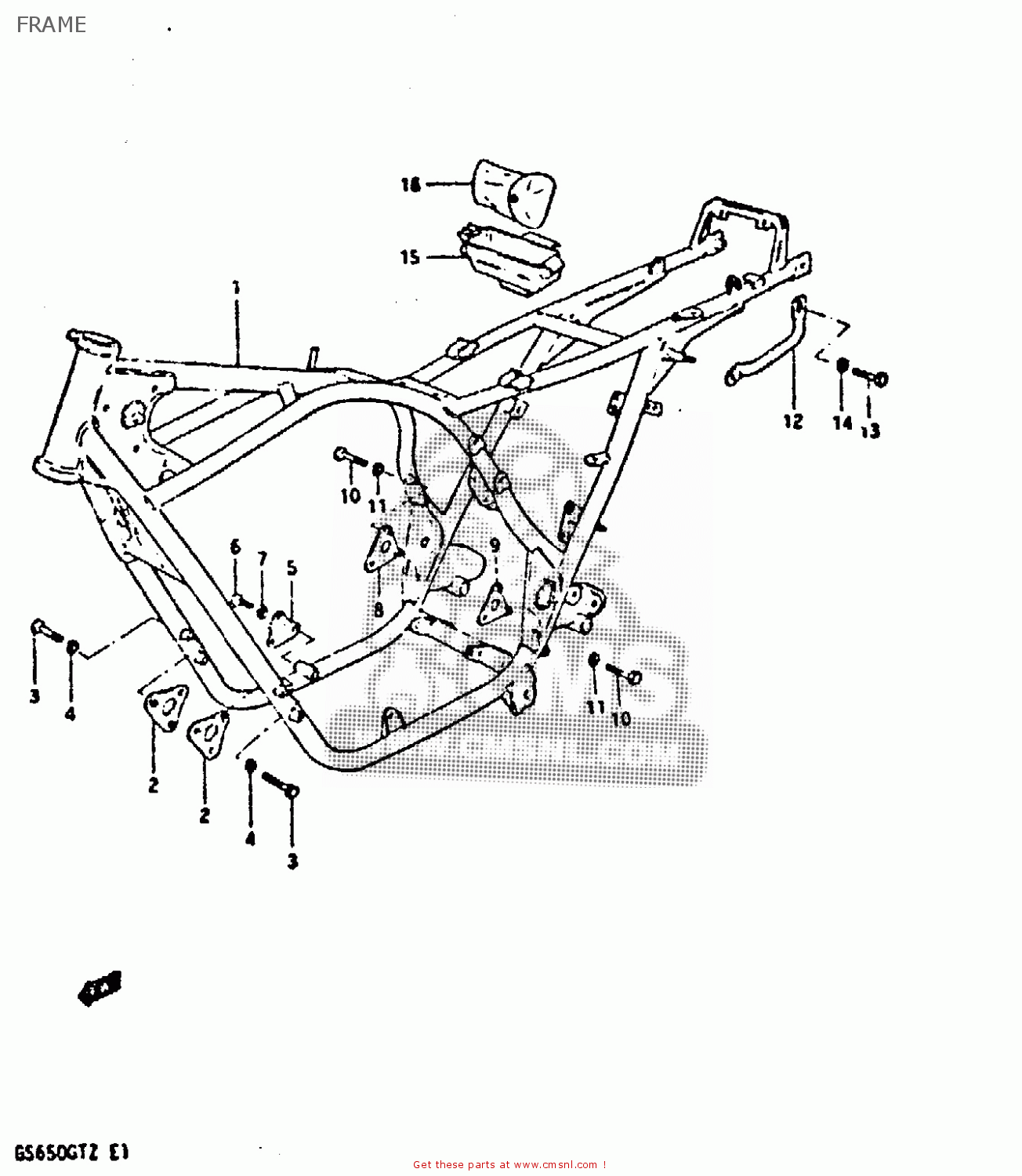

Frame diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1-1

4110034250019
ref: 1-1

FRAME

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4191034200019
ref: 2

PLATE,ENGINE MOUNTING NO

€ 8.50

0110708608
ref: 3

BOLT

€ 2.50

0832121088
ref: 4

LOCK WASHER

€ 2.00

4192134200019
ref: 5

BOLT,CRANKCASE ADJUST

€ 0.00

0110708168
ref: 6

BOLT

€ 2.00

0832121088
ref: 7

LOCK WASHER

€ 2.00

4197034200019
ref: 8

PLATE,ENGINE MOUNTING NO

€ 6.00

4198034200019
ref: 9

PLATE,ENGINE MOUNTING

€ 0.00

0110708168
ref: 10

BOLT

€ 2.00

0832121068
ref: 11

LOCK WASHER

€ 2.50

12-1

4161034200
ref: 12-1
MODEL X

GRIP,FRAME HANDLE

€ 38.50

12-2

4161034300
ref: 12-2
MODEL Z

GRIP,FRAME HANDLE

€ 38.50

0110708168
ref: 13

BOLT

€ 2.00

0832211088
ref: 14

WASHER

€ 2.00

4155134200
ref: 15

HOLDER,TOOL

€ 0.00

0980006800
ref: 16

TOOL SET

€ 52.00

FRAME

all assemblies
