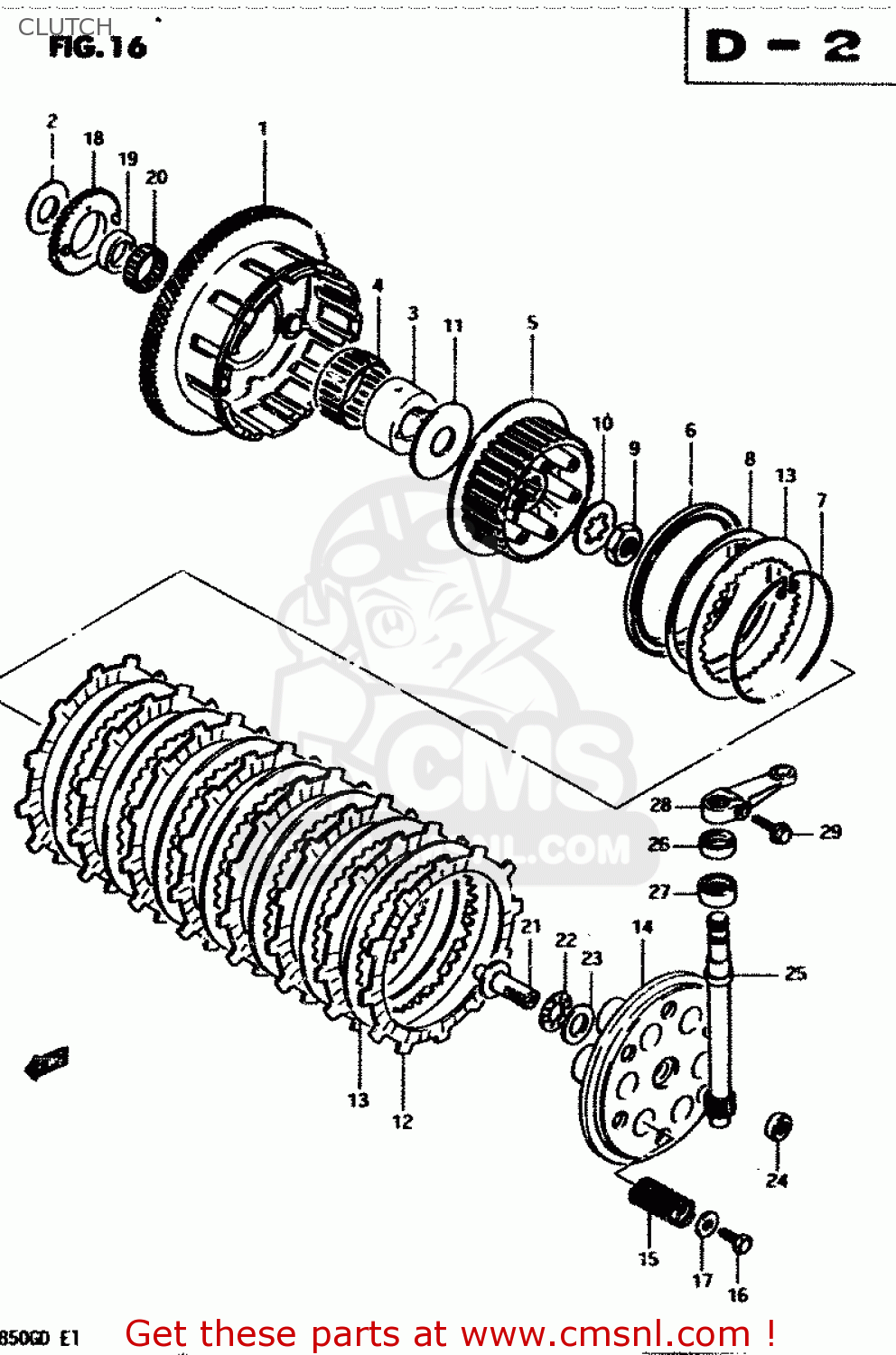

CLUTCH

ref

part #

description

quantity

1

2120045100
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 202.50

2

0916025023
ref: 2

WASHER

€ 9.50

3

2125145001
ref: 3
TO 21251-49200

SPACER,PRIMARY DRIVEN

€ 65.50

4

0926351001
ref: 4

BEARING

€ 37.00

5

2141145100
ref: 5

HUB,CLUTCH SLEEVE

€ 107.50

6

2147145101
ref: 6

SEAT,WAVE WASHER

€ 16.00

7

2148145100
ref: 7

RING,STOPPER

€ 5.00

8

0916400003
ref: 8

WASHER

€ 9.00

9

0914024004
ref: 9

NUT

€ 4.50

10

0916725007
ref: 10

WASHER,LOCK

€ 7.50

11

0916025022
ref: 11

WASHER(25X66X3.5)

€ 13.50

12

2144145100
ref: 12

PLATE,CLUTCH DRIVE (MCA)

€ 20.00

13

2145131000
ref: 13

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

14

2146245102
ref: 14

DISC,CLUTCH PRESSURE

€ 146.50

15

0944019013
ref: 15

SPRING

€ 5.50

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0916006020
ref: 17

WASHER

€ 2.00

18

1632149000
ref: 18

GEAR,ENG OIL PUMP DRIVE(NT:34)

€ 78.50

19

1632545001
ref: 19

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

20

0926336002
ref: 20

BEARING(36X40X10)

€ 24.50

21

2316545110
ref: 21

RACK,CLUTCH RELEASE

€ 20.00

22

0926315003
ref: 22

BEARING(15X28X2)

€ 7.00

23

0916015015
ref: 23

WASHER

€ 4.00

24

0928510003
ref: 24

SEAL,OIL(10X16X5)

€ 6.00

25

2326149001
ref: 25

PINION,CLUTCH RELEASE

€ 28.00

26

0928512002
ref: 26

OIL SEAL

€ 7.00

27

0926315012
ref: 27

BEARING(15X22X12)

€ 11.50

28-1

2327149001
ref: 28-1
MODEL Z

ARM,CLUTCH RELEASE

€ 31.50

28-2

2327145400
ref: 28-2
MODEL D

ARM,CLUTCH RELEASE

€ 31.50

29

0151706208
ref: 29

BOLT,REAR

€ 2.50

all assemblies
