ELECTRICAL (MODEL Z)

GS850G 1983 (D) GENERAL EXPORT (E01)

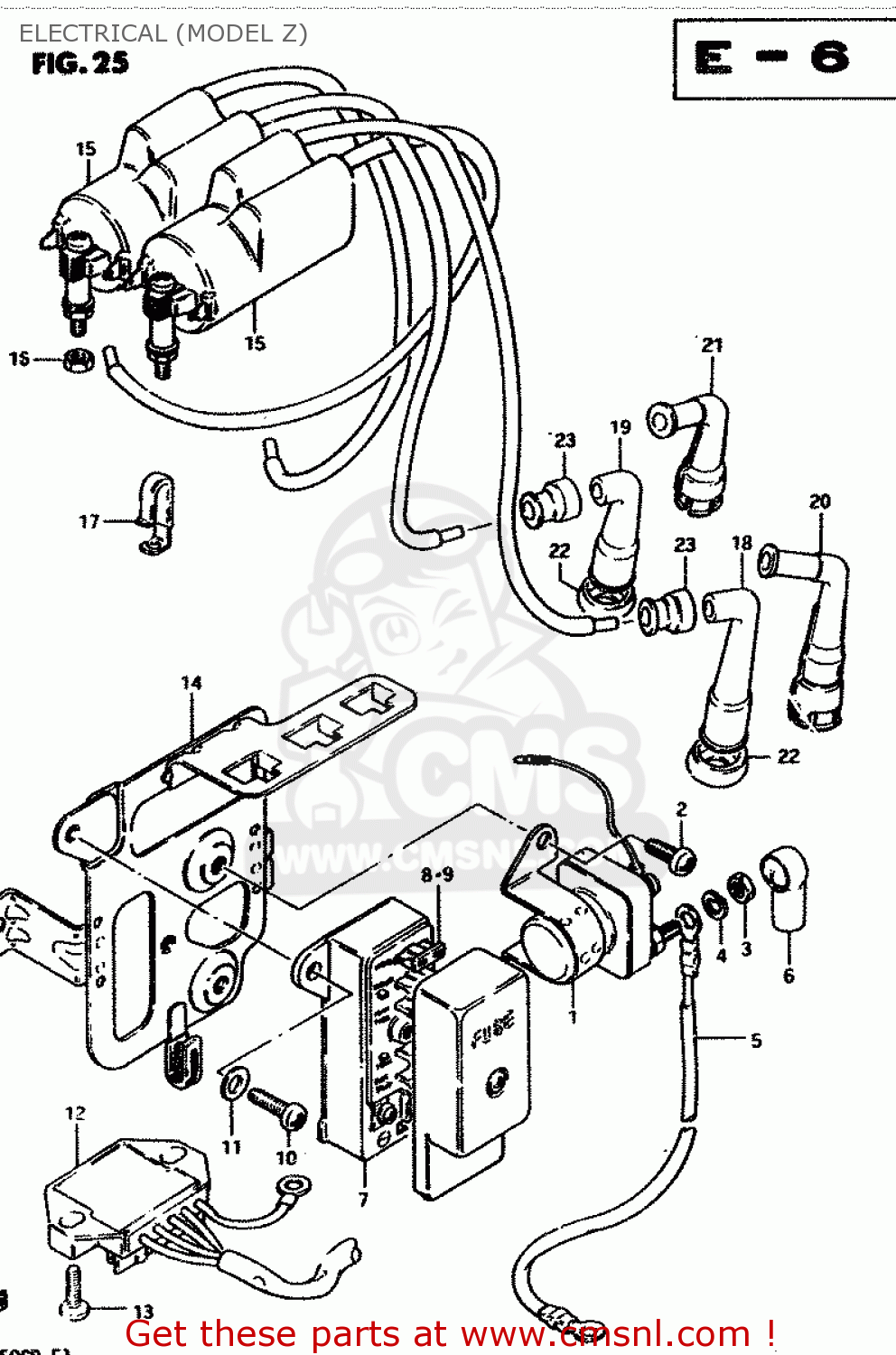

Electrical (model z) diagram GS850G 1983 (D) GENERAL EXPORT (E01)

ELECTRICAL (MODEL Z) GS850G 1983 (D) GENERAL EXPORT (E01)

ELECTRICAL (MODEL Z) GS850G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206108
ref: 2

SCREW

€ 1.50

3

0831022068
ref: 3

NUT 6MM

€ 2.50

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5

3385034301
ref: 5

CABLE,STARTING MOTOR

€ 50.00

6

3186135100
ref: 6

CAP,STARTER RELAY

€ 4.50

7

3674049400
ref: 7

BOX ASSEMBLY,FUSE

€ 69.50

8

0948110101
ref: 8

FUSE(10A)

€ 2.50

9

0948115101
ref: 9

FUSE(15A)

€ 1.50

10

0211206128
ref: 10

SCREW 6X12

€ 2.00

11

0832221068
ref: 11

WASHER

€ 2.00

12

3280045220
ref: 12

RECTIFIER ASSEMBLY

€ 306.50

13

0211206128
ref: 13

SCREW 6X12

€ 2.00

14

4741045110
ref: 14

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

15

3341034210
ref: 15

COIL ASSEMBLY,IGNITION

€ 182.00

16

0831011068
ref: 16

NUT

€ 2.50

17

0940306307
ref: 17

CLAMP

€ 4.50

18

3351045010
ref: 18

CAP ASSY,SPARK PLUG

€ 23.00

19

3351043010
ref: 19

CAP,SPARK PLUG

€ 11.50

20

3351045600
ref: 20
E2,E4,E17

CAP,SPARK PLUG

€ 47.00

21

3351044600
ref: 21
E2,E4,E17

CAP, SPARK PLUG (S)

€ 40.00

22

3354169010
ref: 22

SEAL,SPARK PLUG

€ 5.00

23

3354298000
ref: 23

SEAL,SPARK PLU

€ 4.50
