FRONT BRAKE HOSE
GS850G 1983 (D) GENERAL EXPORT (E01)

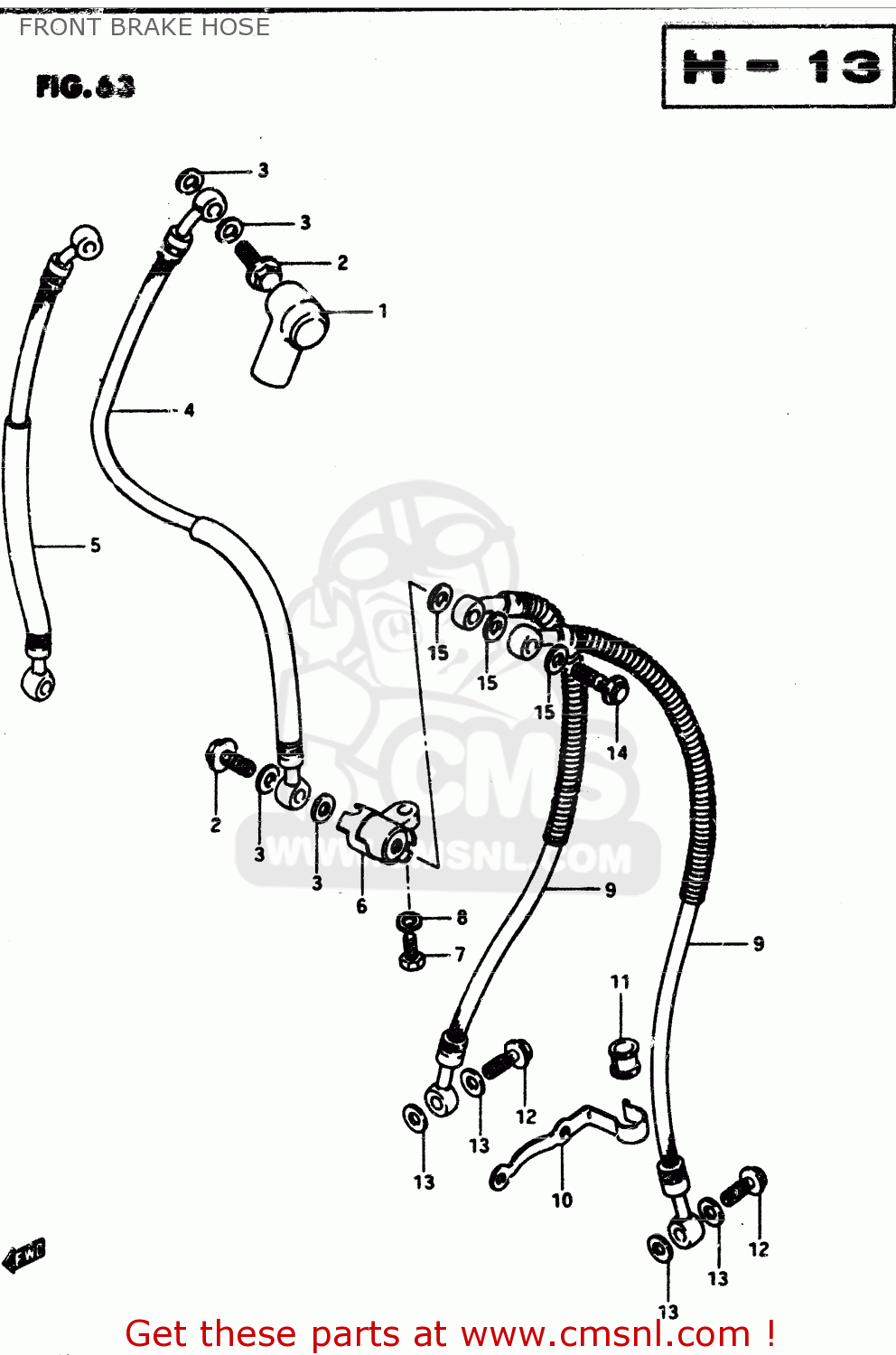

Front brake hose diagram GS850G 1983 (D) GENERAL EXPORT (E01)
FRONT BRAKE HOSE GS850G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
€ 8.50
2
0936010007
ref: 2
BOLT,UNION
€ 6.50
3
0916110005
ref: 3
WASHER
€ 2.00
4
5948049400
ref: 4
NEUTRAL HANDLEBAR
HOSE,BRAKE NO.1
€ 72.00
5
5948045100
ref: 5
FLAT HANDLEBAR
HOSE, BRAKE NO.1 (L:390)
€ 41.50
6
5949145000
ref: 6
JOINT,BRAKE HOSE
€ 29.00
7
0110706208
ref: 7
BOLT
€ 2.00
8
0832121068
ref: 8
LOCK WASHER
€ 2.50
9
5924045000
ref: 9
HOSE,FRONT BRAKE
€ 66.50
10
5926849001
ref: 10
GUIDE,BRAKE HOSE NO.2
€ 7.00
11
5924449000
ref: 11
BUSH,BRAKE HOSE GUIDE,NO.2
€ 4.50
12
0936010007
ref: 12
BOLT,UNION
€ 6.50
13
0916110005
ref: 13
WASHER
€ 2.00
14
0936010008
ref: 14
BOLT,UNION
€ 7.00
15
0916110005
ref: 15
WASHER
€ 2.00
