CYLINDER HEAD
GS850G 1983 (D) GENERAL EXPORT (E01)

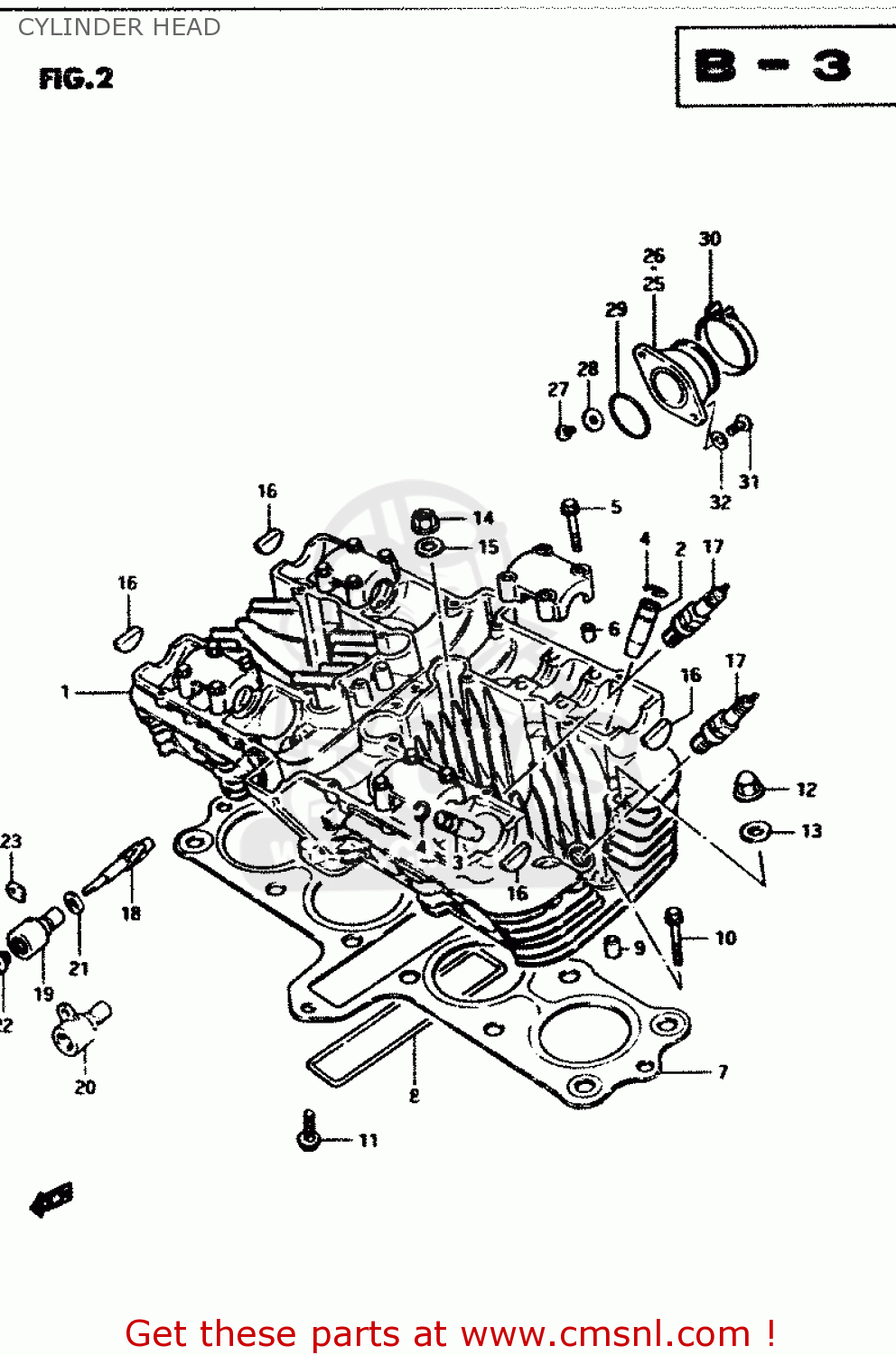

Cylinder head diagram GS850G 1983 (D) GENERAL EXPORT (E01)
CYLINDER HEAD GS850G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-2
1110045131
ref: 1-2
MODEL D
HEAD ASSEMBLY,CYLINDER
€ 286.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111645740
ref: 3
GUIDE,EXHAUST VALVE
€ 27.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7
1114149004
ref: 7
GASKET,CYLINDER HEAD (MCA)
€ 102.50
8
0928099003
ref: 8
O RING(D:3,ID:26X157)
€ 34.00
9
0421111189
ref: 9
PIN
€ 2.00
10-1
0151706458
ref: 10-1
MODEL Z
BOLT,UNDER
€ 2.50
10-2
0151706455
ref: 10-2
MODEL D
BOLT (6X45)
€ 2.50
11-1
0151706308
ref: 11-1
MODEL Z
BOLT
€ 2.00
11-2
0151706305
ref: 11-2
MODEL D
BOLT 6X30
€ 2.50
12
0915910026
ref: 12
NUT
€ 6.00
13
0916810017
ref: 13
GASKET(10.5X22X2) (NAS)
€ 3.50
14
0831616108
ref: 14
NUT
€ 2.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
€ 2.50
16
0924123002
ref: 16
PLUG
€ 8.50
17-1
0948200091
ref: 17-1
PLUG,SPARK
€ 3.00
17-2
0948200196
ref: 17-2
SPARK PLUG W24ES-U
€ 3.50
17-3
0948200121
ref: 17-3
E6
PLUG,SPARK(BR8ES)
€ 12.50
17-4
0948200247
ref: 17-4
E6
SPARK PLUG (ND,W24ESR)
€ 3.50
18
2643145001
ref: 18
GEAR,TACHOMETER DRIVEN
€ 43.00
19
2644145000
ref: 19
MODEL Z
SLEEVE,TACHOMETER DRIVE
€ 18.00
20
2644149000
ref: 20
MODEL D
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
21
2645145000A
ref: 21
SEAL,TACHOMETER DRIVEN
€ 4.50
22
0928905002
ref: 22
SEAL,OIL(5X12X8)
€ 11.00
23
2644933000
ref: 23
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
24
0912805101
ref: 24
SCREW(5X12)
€ 1.50
25
1311045100
ref: 25
PIPE,INTAKE,R
€ 42.00
26
1312045100
ref: 26
PIPE,INTAKE,L
€ 42.00
27
0910605006
ref: 27
BOLT
€ 2.00
28
0916805010
ref: 28
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
29
0928038003
ref: 29
O-RING
€ 4.50
30
0940250306
ref: 30
CLAMP
€ 6.00
31-1
0211206208
ref: 31-1
MODEL Z
SCREW
€ 2.00
31-2
0211206205
ref: 31-2
MODEL D
SCREW
€ 2.00
32-1
0832221068
ref: 32-1
MODEL Z
WASHER
€ 2.00
32-2
0832221065
ref: 32-2
MODEL D
WASHER
€ 2.00
