FRONT FENDER - HEADLAMP HOUSING (MODEL D)

GS850G 1983 (D) GENERAL EXPORT (E01)

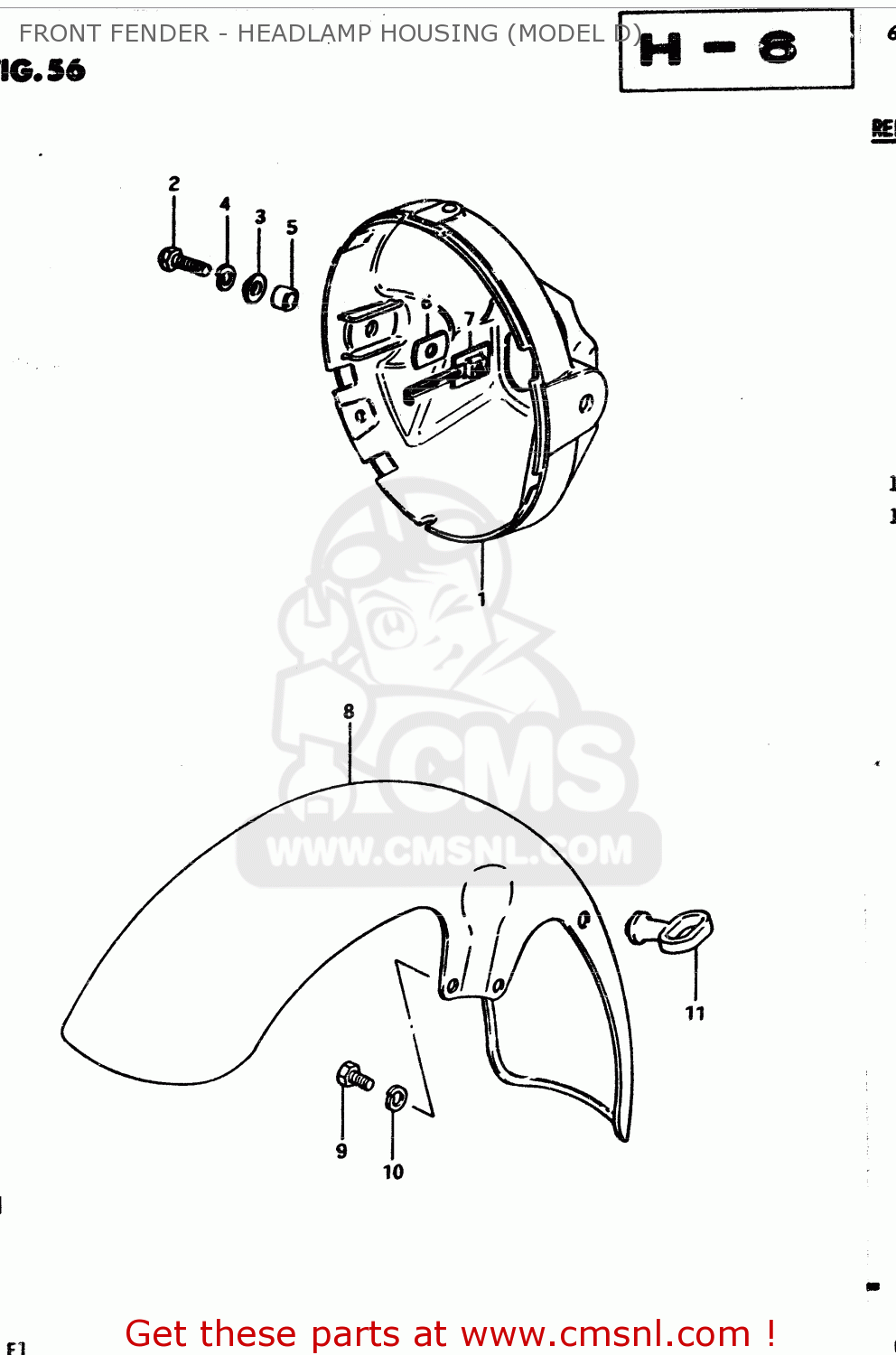

Front fender - headlamp housing (model d) diagram GS850G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5181149401019
ref: 1

HOUSING,HEADLAMP

€ 45.50

0120408257
ref: 2

BOLT

€ 2.00

0832211088
ref: 3

WASHER

€ 2.00

0832121088
ref: 4

LOCK WASHER

€ 2.00

0918008030
ref: 5

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 6

CUSHION

€ 3.00

5182045000
ref: 7

PLATE,HEADLAMP HOUSING

€ 4.00

8-1

5310045740019
ref: 8-1

FENDER, FRONT

€ 0.00

8-2

531004574016D
ref: 8-2

FENDER, FRONT

€ 182.50

0110708168
ref: 9

BOLT

€ 2.00

0832121088
ref: 10

LOCK WASHER

€ 2.00

5862121203A
ref: 11

GUIDE,CABLE

€ 7.50
