TURN SIGNAL LAMP
GS850G 1983 (D) GENERAL EXPORT (E01)

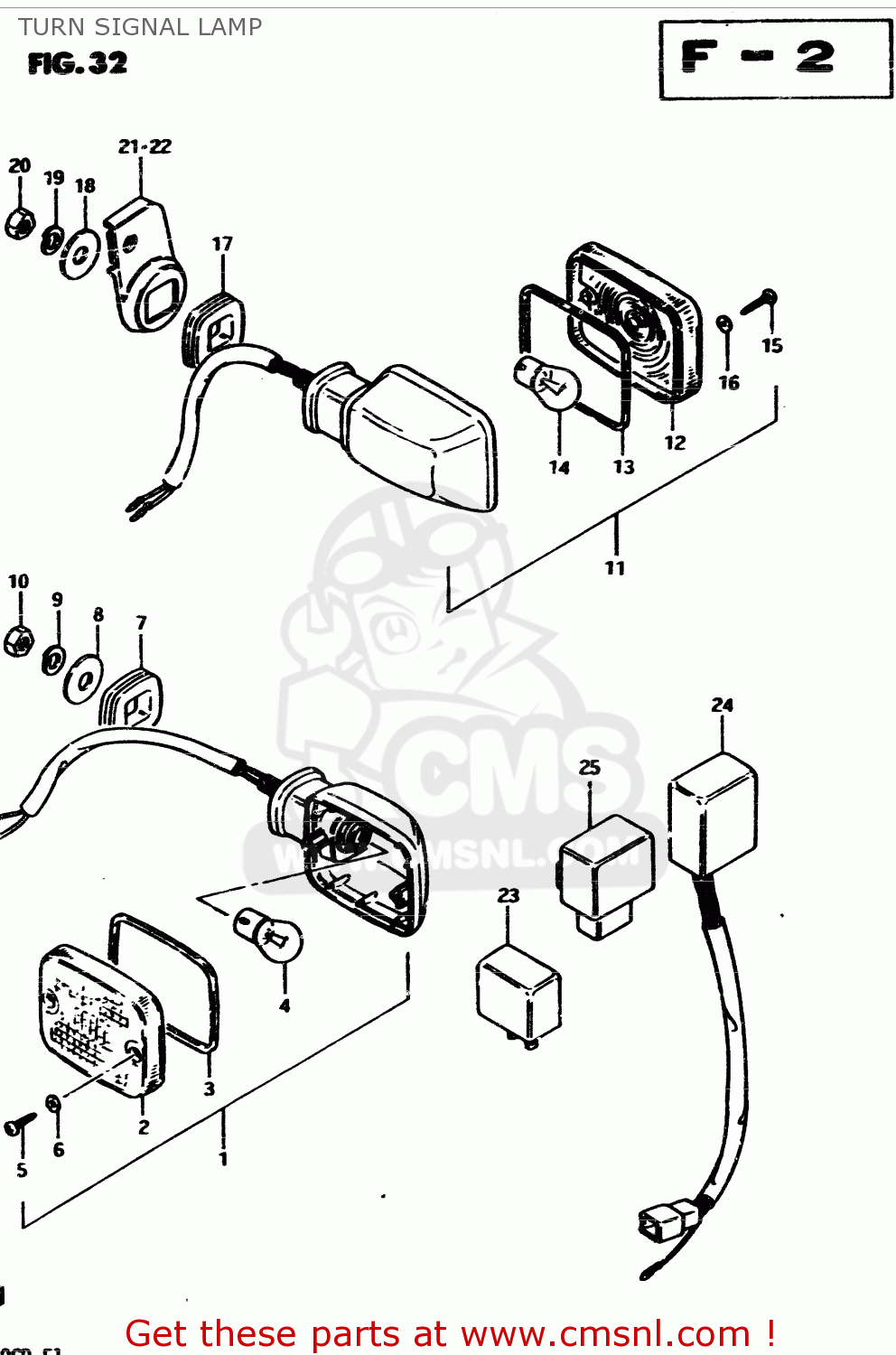

Turn signal lamp diagram GS850G 1983 (D) GENERAL EXPORT (E01)
TURN SIGNAL LAMP GS850G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3560145110
ref: 1
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 114.00
2
3561249231
ref: 2
LENS
€ 13.00
3
3561349230
ref: 3
GASKET (NAS)
€ 5.00
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
€ 4.00
5
0321104208
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0932015002
ref: 7
CUSHION
€ 4.50
8
0916010006
ref: 8
WASHER (10.5X30X2.3)
€ 2.50
9
0832121108
ref: 9
LOCK WASHER
€ 2.00
10
0831012108
ref: 10
NUT
€ 2.50
11
3560145110
ref: 11
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 114.00
12
3561249231
ref: 12
LENS
€ 13.00
13
3561349230
ref: 13
GASKET (NAS)
€ 5.00
14
0947112006
ref: 14
BULB(12V23W,STANLEY,A4577A)
€ 4.00
15
0321104208
ref: 15
SCREW
€ 1.50
16
3562743010
ref: 16
GASKET (NAS)
€ 2.00
17
0932015004
ref: 17
CUSHION
€ 5.00
18
0916010006
ref: 18
WASHER (10.5X30X2.3)
€ 2.50
19
0832121108
ref: 19
LOCK WASHER
€ 2.00
20
0831012108
ref: 20
NUT
€ 2.50
21
3562033211
ref: 21
BRACKET,REAR TURN SIGNAL
€ 8.50
22
3564033211
ref: 22
BRACKET,REAR TURN SIGNAL
€ 8.50
23
3861049231
ref: 23
RELAY ASSY,TURNSIGNAL
€ 71.00
24
3883049201
ref: 24
MODEL Z
UNIT,TURN SIGNAL CONTROL
€ 269.50
25
3883049500
ref: 25
MODEL D
UNIT,TURN SIGNAL CONTROL
€ 269.50
