FRAME

GS850G 1983 (D) GENERAL EXPORT (E01)

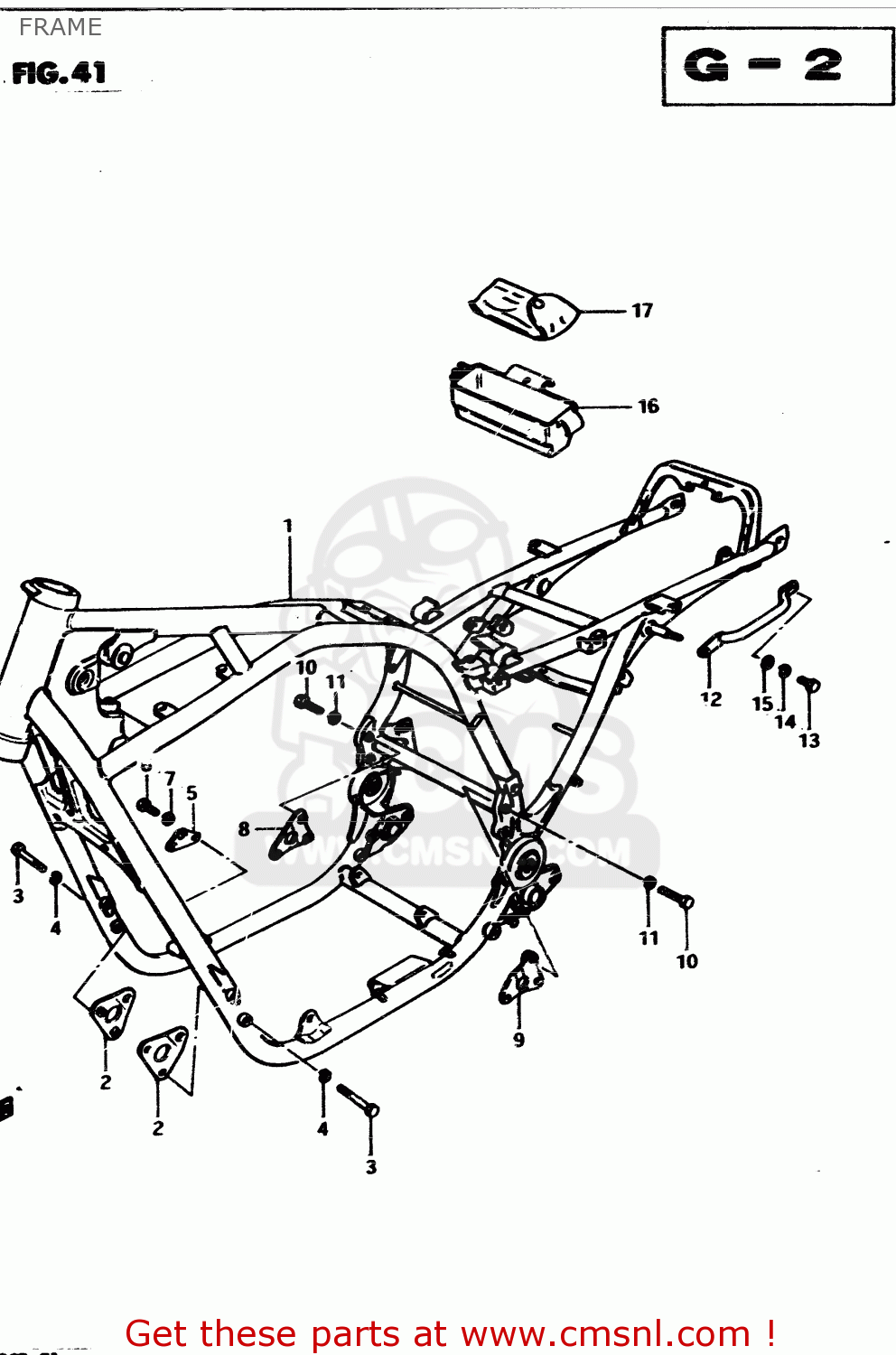

Frame diagram GS850G 1983 (D) GENERAL EXPORT (E01)

FRAME GS850G 1983 (D) GENERAL EXPORT (E01)
FRAME GS850G 1983 (D) GENERAL EXPORT (E01)
FRAME GS850G 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
4110049400019
ref: 1-1
MODEL Z
FRAME
€ 1,399.50
1-2
4110049401019
ref: 1-2
MODEL D
FRAME
€ 1,399.50
1-3
4110049420019
ref: 1-3
MODEL Z E17
FRAME (BLACK)
€ 0.00
1-4
4110049421019
ref: 1-4
MODEL D E17
FRAME (BLACK)
€ 0.00
2-1
4191045100019
ref: 2-1
MODEL Z
PLATE,ENGINE MOUNTING
€ 8.50
2-2
4191045101019
ref: 2-2
MODEL D
PLATE,ENGINE MOUNTING
€ 8.50
3
0110708658
ref: 3
BOLT
0110708658
€ 3.00
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
4199345000019
ref: 5
PLATE,ENGINE MOUNTING
4199345000019
€ 5.50
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
0832121088
€ 2.00
8
4197045100019
ref: 8
PLATE,ENGINE MOUNTING
€ 0.00
9
4198045350019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708408
ref: 10
BOLT 8X40
0110708408
€ 3.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12-1
4161149400
ref: 12-1
MODEL Z
GRIP,FRAME HANDLE
€ 26.50
12-2
4161149401
ref: 12-2
MODEL D
GRIP,FRAME HANDLE
€ 26.50
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
0832211088
ref: 15
WASHER
0832211088
€ 2.00
16
4155145110
ref: 16
HOLDER,TOOL
€ 29.00
17
0980000231
ref: 17
TOOL SET
€ 43.00
