FRAME COVER (MODEL D)

GS850G 1983 (D) GENERAL EXPORT (E01)

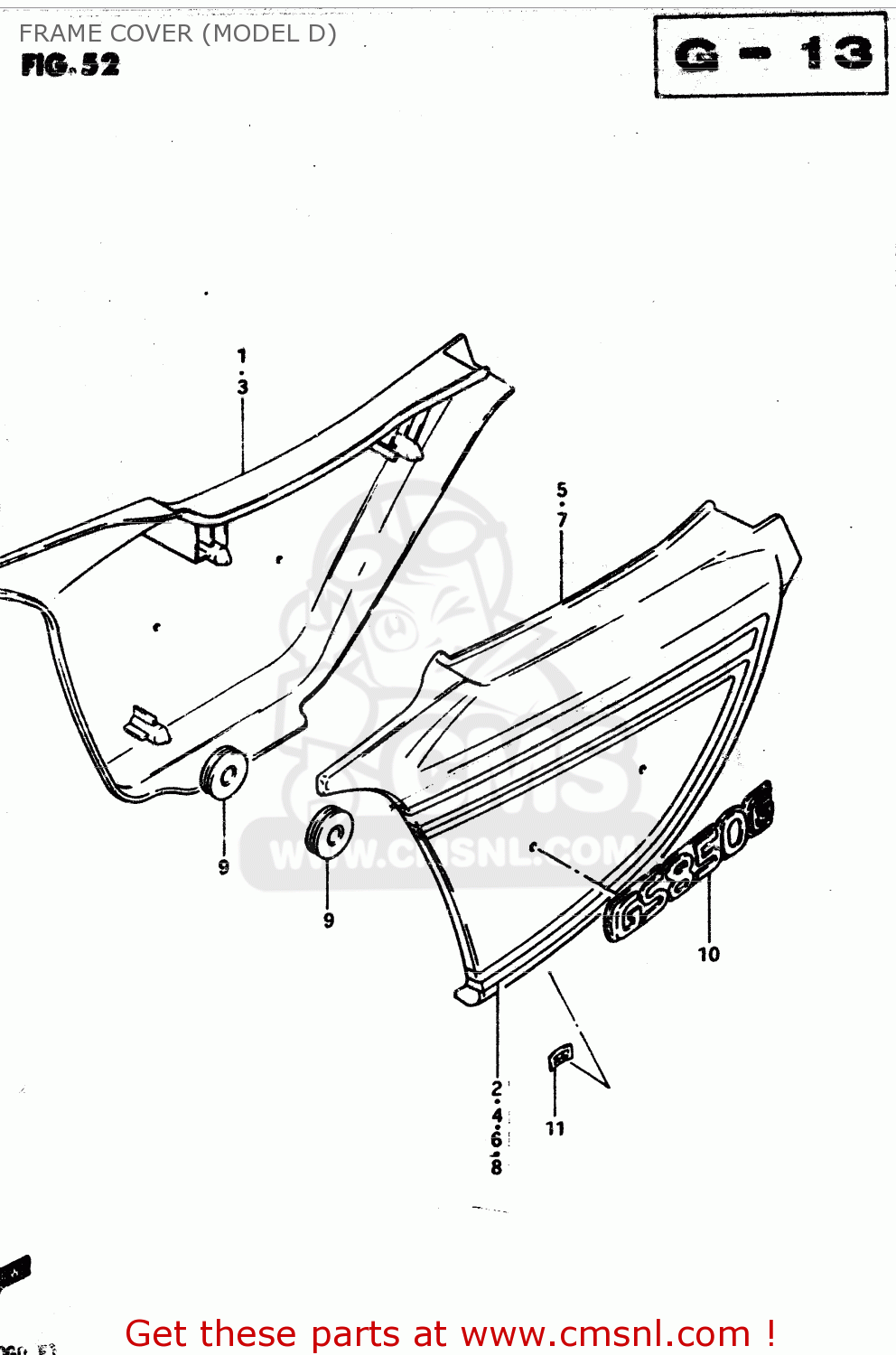

Frame cover (model d) diagram GS850G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

4711045730019
ref: 1

COVER, FRAME RH (BLACK)

€ 76.50

681304573079Z
ref: 2

TAPE, RH

€ 0.00

471104573016D
ref: 3

COVER, FRAME RH (WHITE)

€ 76.50

681304573087T
ref: 4

TAPE, RH

€ 0.00

4721045730019
ref: 5

COVER, FRAME LH (BLACK)

€ 76.50

681404573079Z
ref: 6

TAPE, LH

€ 0.00

472104573016D
ref: 7

COVER, FRAME LH (WHITE)

€ 76.50

681404573087T
ref: 8

TAPE, LH

€ 0.00

0932008018
ref: 9

CUSHION

€ 4.00

6813145720
ref: 10

EMBLEM,FRAME COVER

€ 24.50

0914803002
ref: 11

NUT

€ 3.00
