FRONT CALIPERS
GS850G 1983 (D) GENERAL EXPORT (E01)

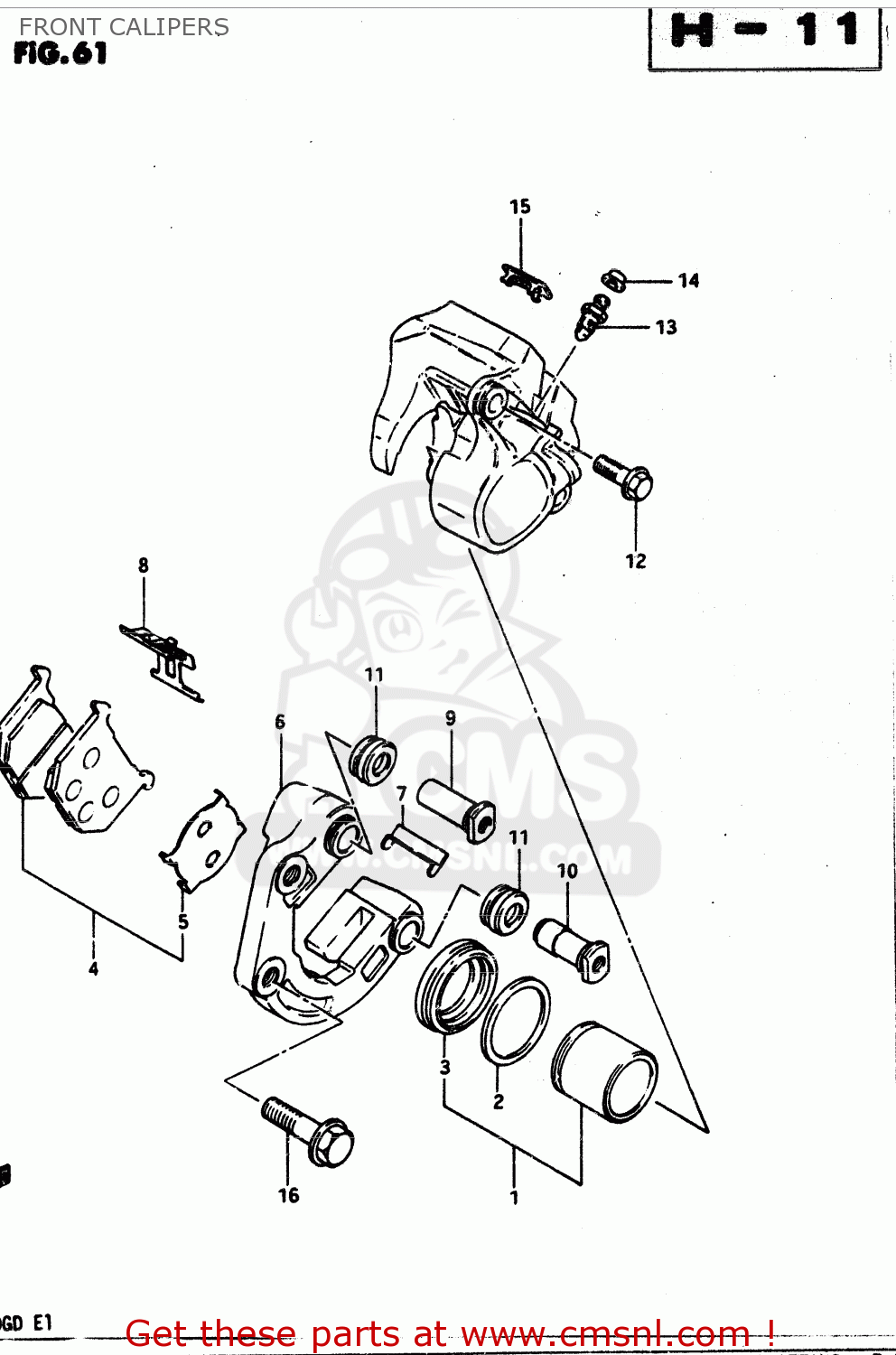

Front calipers diagram GS850G 1983 (D) GENERAL EXPORT (E01)
FRONT CALIPERS GS850G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
0
5910045202
ref: 0
MODEL Z
CALIPERS ASSY, FRONT RH
€ 408.00
0
5930045202
ref: 0
MODEL Z
CALIPER ASSEMBLY,FRONT,LEFT
€ 232.00
0
5910045204
ref: 0
MODEL D
CALIPERS ASSY, FRONT RH
€ 408.00
0
5930045204
ref: 0
MODEL D
CALIPER ASSEMBLY,FRONT,LEFT
€ 232.00
1
5930145820
ref: 1
PISTON SET
€ 117.00
2
5910718410
ref: 2
SEAL,PISTON
€ 17.00
3
5930845200
ref: 3
BOOT,PISTON
€ 13.00
4-1
5930145810
ref: 4-1
MODEL Z
PAD SET (MCA)
€ 72.50
4-2
5930145811
ref: 4-2
MODEL D
PAD SET,BRAKE (MCA)
€ 72.50
5
5937145200
ref: 5
SHIM,PAD
€ 12.50
6-1
5910045880
ref: 6-1
MODEL Z
CARRIER,CALIPER,RIGHT
€ 114.00
6-2
5910045881
ref: 6-2
MODEL D
CARRIER,CALIPER,RIGHT
€ 114.00
6-3
5930145840
ref: 6-3
MODEL Z
CARRIER,CALIPER,LEFT
€ 67.00
6-4
5930145841
ref: 6-4
MODEL D
CARRIER,CALIPER,LEFT
€ 67.00
7
5931645201
ref: 7
GUIDE,PAD
€ 19.00
8
5931545200
ref: 8
SPRING,PAD
€ 29.00
9
5930545200
ref: 9
AXLE NO.1
€ 15.00
10
5930645200
ref: 10
AXLE NO.2
€ 13.50
11
5931245200
ref: 11
BOOT,AXLE
€ 10.50
12-1
5931445200
ref: 12-1
MODEL Z
BOLT,CALIPER HOUSING
€ 12.00
12-2
5931445201
ref: 12-2
MODEL D
BOLT
€ 12.00
13
5912118410
ref: 13
BLEEDER
€ 8.00
14
5912218410
ref: 14
CAP,BREATHER
€ 6.00
15-1
5932445200
ref: 15-1
MODEL Z
COVER,INDICATOR
€ 5.00
15-2
5932445201
ref: 15-2
MODEL D
COVER
€ 5.00
16
0910310019
ref: 16
BOLT(10X37)
€ 2.50
