STEERING STEM
GS850G 1983 (D) GENERAL EXPORT (E01)

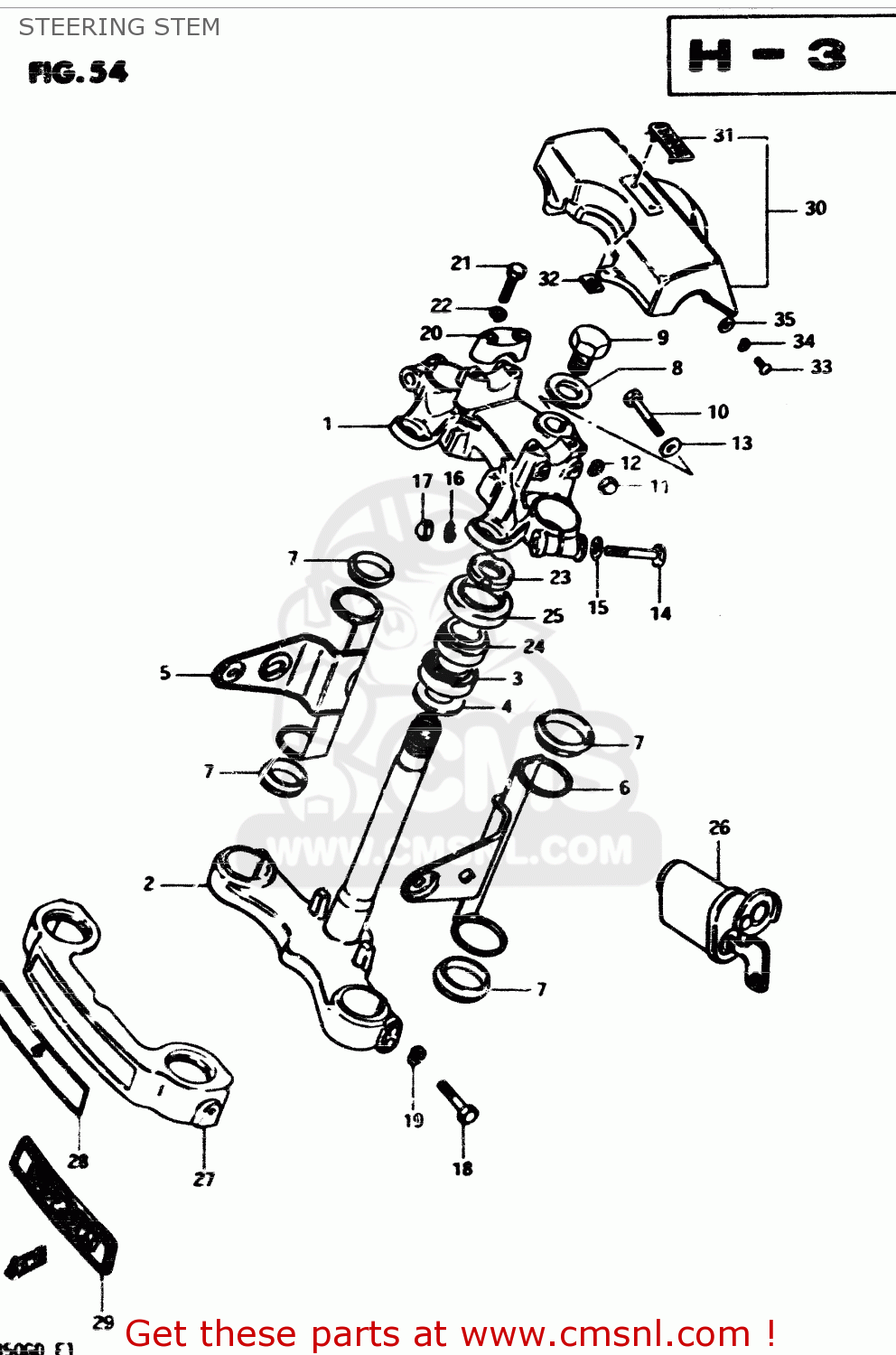

Steering stem diagram GS850G 1983 (D) GENERAL EXPORT (E01)
STEERING STEM GS850G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5131149400291
ref: 1
HEAD,STEERING STEM
€ 198.50
2
5141049430291
ref: 2
STEM,STEERING
€ 249.00
3
0926530005
ref: 3
BEARING
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
€ 4.00
5
5153049410
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 72.50
6
5154049410
ref: 6
BRACKET,HEADLAMP,LEFT
€ 35.00
7
5155349000
ref: 7
CUSHION,HEADLAMP BRACKET
€ 4.50
8
5135649400
ref: 8
WASHER,STEERING STEM
€ 4.00
9
5135349400
ref: 9
NUT,STEM HEAD
€ 8.50
10
0110708508
ref: 10
BOLT 8X50
€ 3.00
11
0831311088
ref: 11
NUT
€ 2.50
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0832221088
ref: 13
WASHER
€ 2.00
14
0110710558
ref: 14
BOLT 10X55
€ 3.50
15
0832221108
ref: 15
WASHER
€ 2.50
16
0832121108
ref: 16
LOCK WASHER
€ 2.00
17
0831311108
ref: 17
NUT, LOWER LH
€ 2.50
18
0110708358
ref: 18
BOLT
€ 3.50
19
0832121088
ref: 19
LOCK WASHER
€ 2.00
20
5621129320291
ref: 20
HOLDER,HANDLE(BLACK)
€ 12.00
21
0110708358
ref: 21
BOLT
€ 3.50
22
0832121088
ref: 22
LOCK WASHER
€ 2.00
23
5163134200
ref: 23
NUT,STEERING STEM
€ 23.00
24
0926525008
ref: 24
TAPER,ROLLER BEARING
€ 48.50
25
5164340502
ref: 25
DUST SEAL,STEERING UPR
€ 8.00
26
5190045400
ref: 26
E17
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
27
5187149400
ref: 27
COVER,FRONT FORK
€ 20.50
28
6821149400
ref: 28
MODEL Z
EMBLEM,FRONT FORK COVER
€ 11.50
29
6821149420
ref: 29
MODEL D
EMBLEM,FRONT FORK COVER
€ 16.50
30
5617049400
ref: 30
PAD,HANDLEBAR
€ 36.00
31
6828145100
ref: 31
EMBLEM,HANDLE COVER PAD
€ 14.00
32
0914803002
ref: 32
NUT
€ 3.00
33
0211205088
ref: 33
SCREW
€ 2.00
34
0832121058
ref: 34
LOCK WASHER
€ 2.00
35
0832221058
ref: 35
WASHER
€ 2.50
