CYLINDER

GS850G 1983 (D) GENERAL EXPORT (E01)

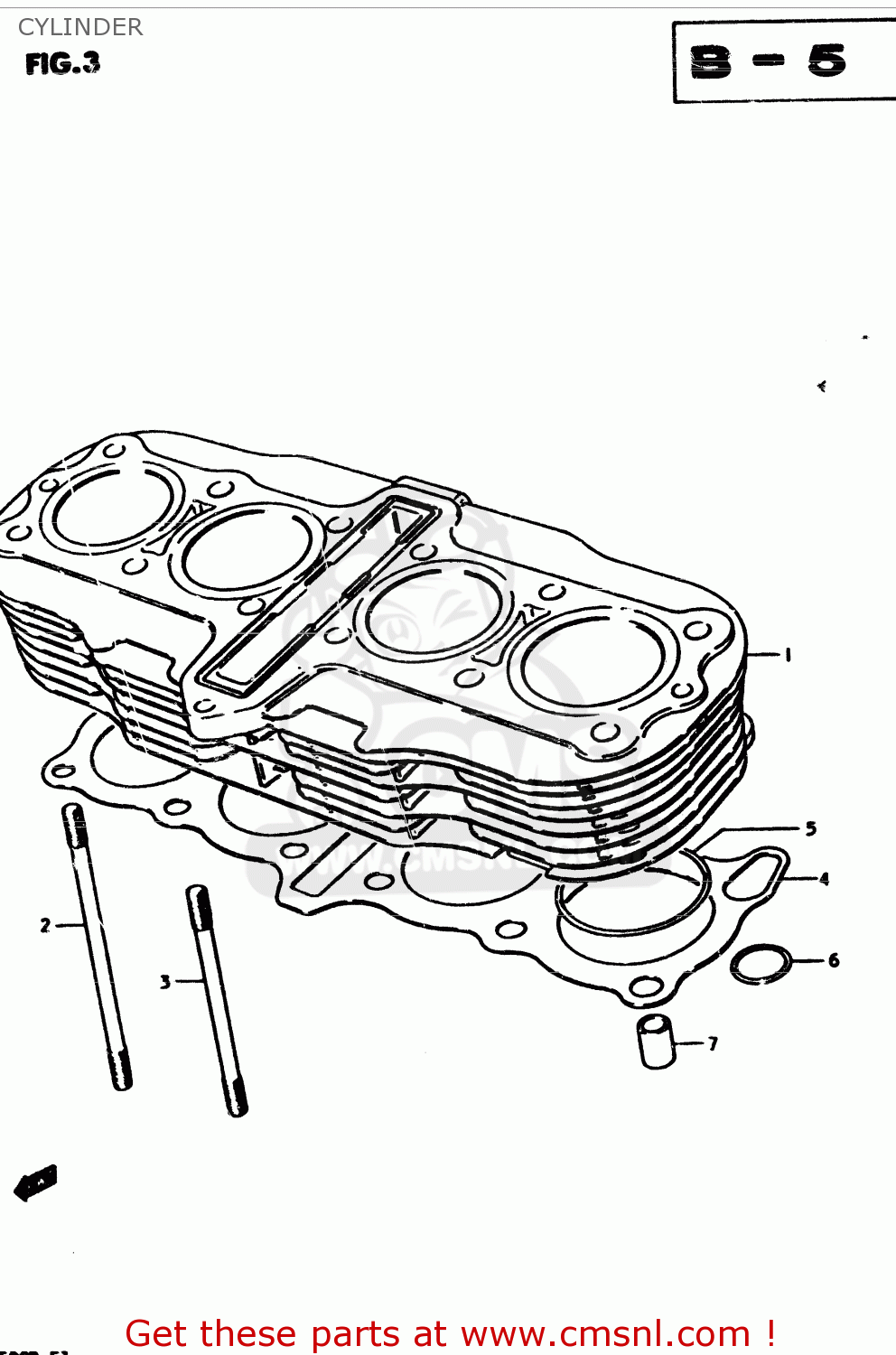

Cylinder diagram GS850G 1983 (D) GENERAL EXPORT (E01)

CYLINDER GS850G 1983 (D) GENERAL EXPORT (E01)

CYLINDER GS850G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1121045110
ref: 1-1
MODEL Z

CYLINDER

€ 0.00

1-2

1121045120
ref: 1-2
MODEL D

CYLINDER

€ 846.50

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3

STUD

€ 9.00

4

1124145110
ref: 4

GASKET,CYLINDER (MCA)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7

PIN

€ 2.50
