CYLINDER HEAD COVER

GS850G 1983 (D) GENERAL EXPORT (E01)

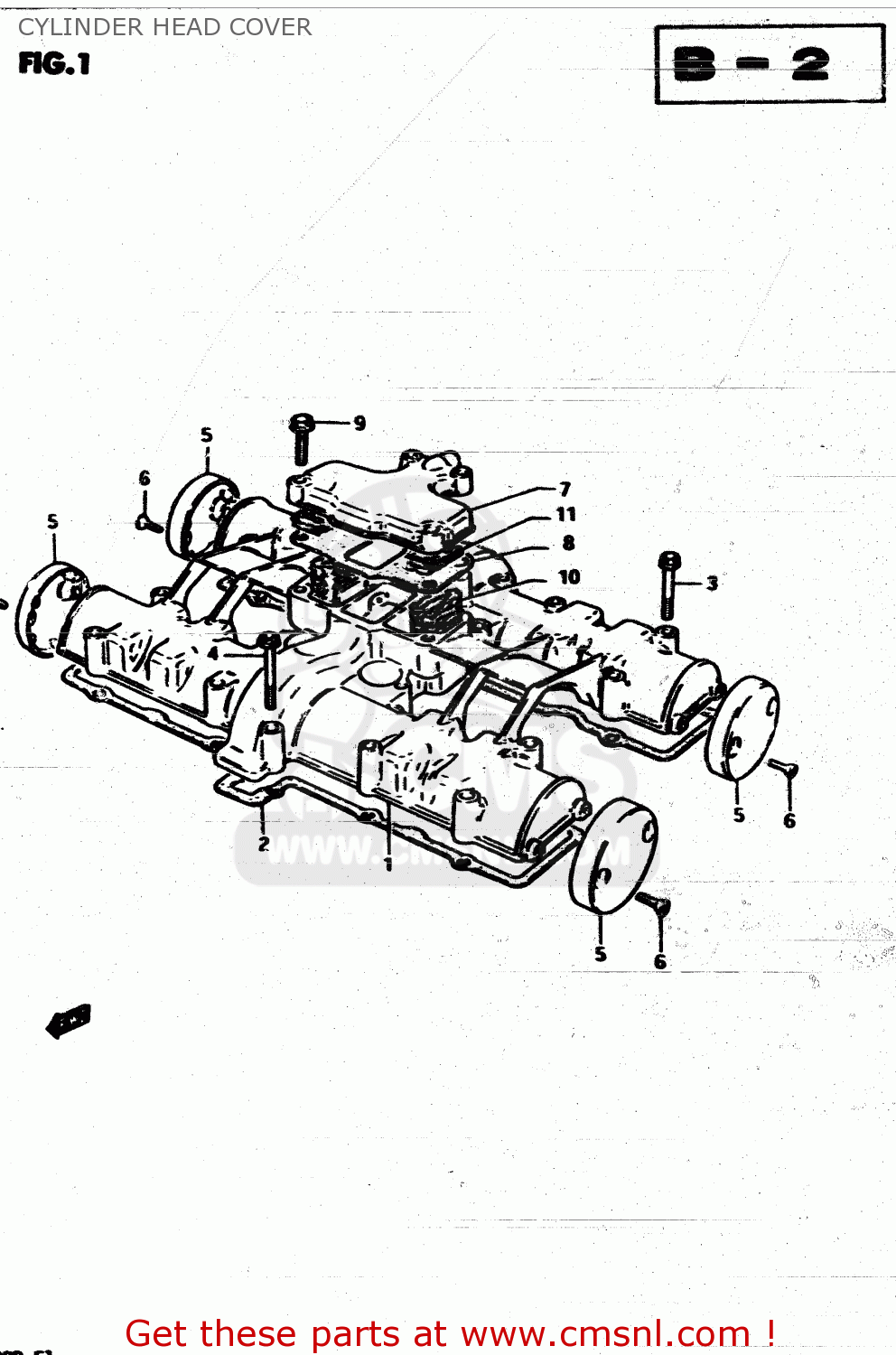

Cylinder head cover diagram GS850G 1983 (D) GENERAL EXPORT (E01)

CYLINDER HEAD COVER GS850G 1983 (D) GENERAL EXPORT (E01)

CYLINDER HEAD COVER GS850G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1117145010
ref: 1-1
MODEL Z

COVER,CYLINDER HEAD

€ 193.00

1-2

1117145020
ref: 1-2
MODEL D

COVER,CYLINDER

€ 193.00

2

1117345010
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 42.00

3-1

0151706408
ref: 3-1
MODEL Z

BOLT

€ 2.50

3-2

0151706405
ref: 3-2
MODEL D

BOLT (6X40)

€ 2.00

4-1

0151706458
ref: 4-1
MODEL Z

BOLT,UNDER

€ 2.50

4-2

0151706455
ref: 4-2
MODEL D

BOLT (6X45)

€ 2.50

5

1117449000
ref: 5

CAP,CYLINDER HEAD COVER

€ 38.00

6

0912705013
ref: 6

SCREW(5X12)

€ 2.50

7-1

1117645001
ref: 7-1
MODEL Z

COVER,BREATHER

€ 32.50

7-2

1117645020
ref: 7-2
MODEL D

COVER,BREATHER

€ 32.50

8

1117745000
ref: 8

GASKET (MCA)

€ 9.00

9-1

0151706258
ref: 9-1
MODEL Z

BOLT

€ 2.50

9-2

0151706255
ref: 9-2
MODEL D

BOLT

€ 2.50

10

1118645000
ref: 10

COVER,BREATHER

€ 5.50

11

1118745000
ref: 11

SEPARATOR,OIL BREATHER

€ 6.50
