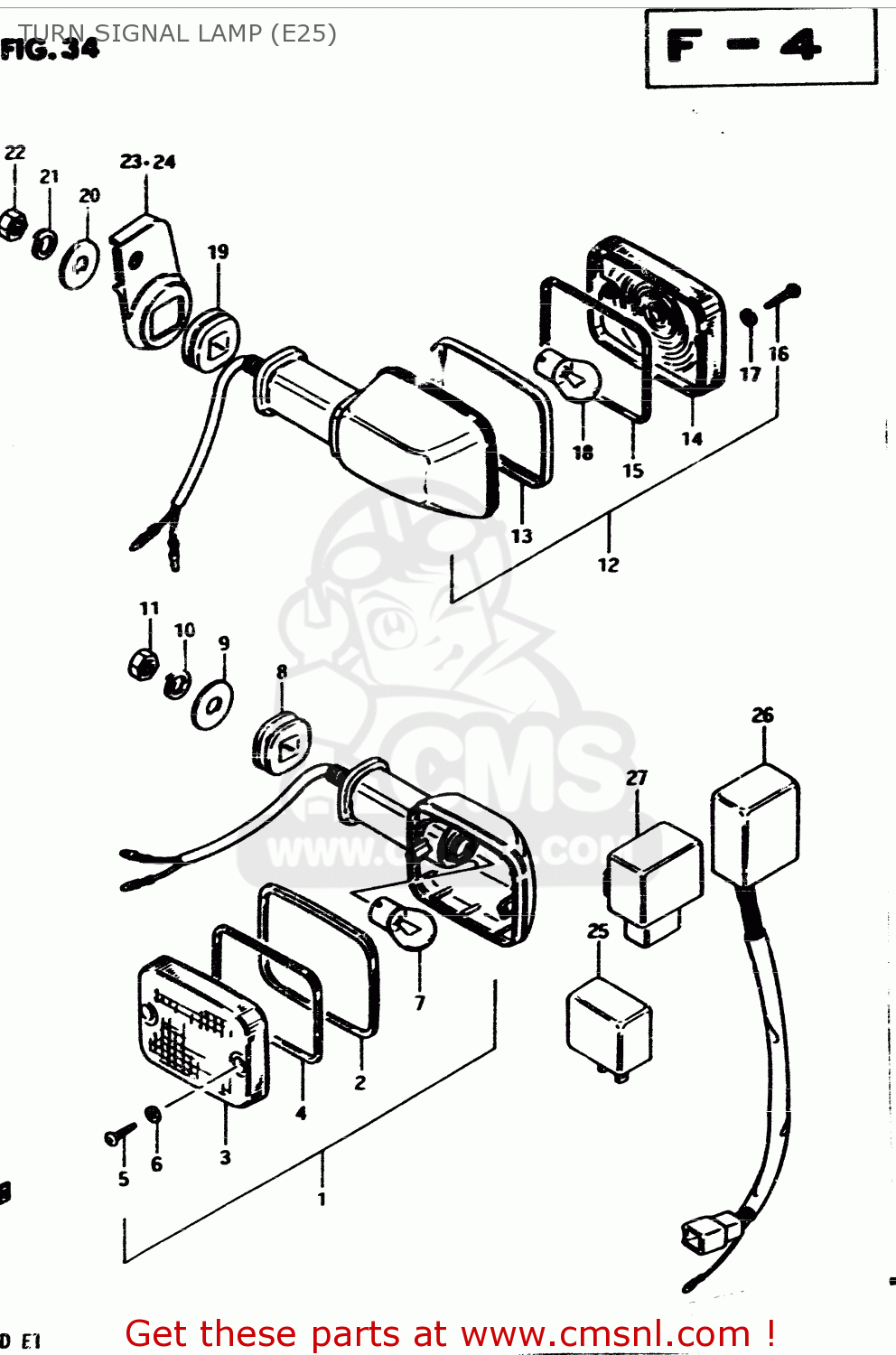

TURN SIGNAL LAMP (E25)

ref

part #

description

quantity

1-1

3560145581
ref: 1-1
MODEL Z

LAMP ASSY,FR T

€ 83.00

1-2

3560145180
ref: 1-2
MODEL D

LAMP ASSY, FRONT TURN SIGNAL

€ 86.50

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0321104208
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947112045
ref: 7
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

8

0932015002
ref: 8

CUSHION

€ 4.50

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12-1

3560345591
ref: 12-1
MODEL Z

LAMP ASSY,RR T

€ 36.50

12-2

3560345180
ref: 12-2
MODEL D

LAMP ASSY, REAR TURN SIGNAL

€ 88.50

13

3561149230
ref: 13

RIM

€ 11.00

14

3565244182
ref: 14

LENS

€ 13.00

15

3561349230
ref: 15

GASKET (NAS)

€ 5.00

16

0321104208
ref: 16

SCREW

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

0947112045
ref: 18
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

19

0932015004
ref: 19

CUSHION

€ 5.00

20

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831012108
ref: 22

NUT

€ 2.50

23

3562033211
ref: 23

BRACKET,REAR TURN SIGNAL

€ 8.50

24

3564033211
ref: 24

BRACKET,REAR TURN SIGNAL

€ 8.50

25

3861049231
ref: 25

RELAY ASSY,TURNSIGNAL

€ 71.00

26

3883049201
ref: 26
MODEL Z

UNIT,TURN SIGNAL CONTROL

€ 269.50

27

3883049500
ref: 27
MODEL D

UNIT,TURN SIGNAL CONTROL

€ 269.50

all assemblies
