BATTERY

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

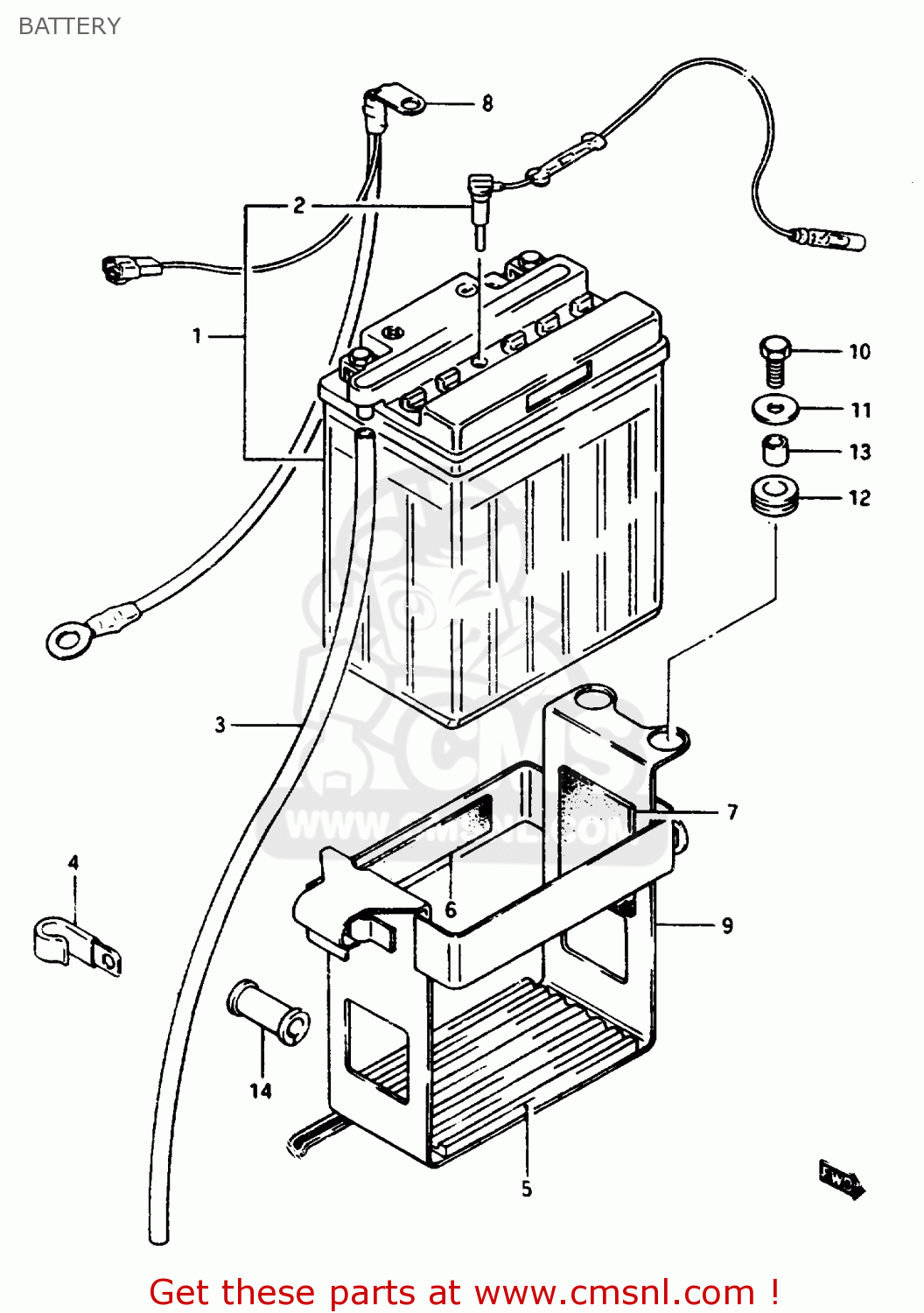

Battery diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

3361000A10
ref: 1

BATTERY ASSY(12V14.7AH)

€ 156.50

2-1

3361700A10
ref: 2-1
YUASA

SENSOR,BATTERY LEVEL

€ 40.00

2-2

3361700A20
ref: 2-2
FB

SENSOR,BATTERY LEVEL

€ 28.50

3368031003
ref: 3

HOSE,BATTERY EXHAUST

€ 4.50

0940309303
ref: 4

CLAMP

€ 5.50

3365131000
ref: 5

PROTECTOR,BATTERY

€ 29.00

3365137000
ref: 6
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365208410
ref: 7

PROTECTOR,BATTERY

€ 5.00

3385038420
ref: 8

WIRE,BATTERY MINUS LEAD

€ 15.00

4154000A00
ref: 9

HOLDER,BATTERY

€ 0.00

0110706166
ref: 10

BOLT

€ 2.00

0916006020
ref: 11

WASHER

€ 2.00

0932008007
ref: 12

CUSHION

€ 4.00

0918006038
ref: 13

SPACER(6.1X9X7.5)

€ 2.00

0932008022
ref: 14

CUSHION

€ 3.50
