HEADLAMP (GSX1100EE/EF/EG)

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

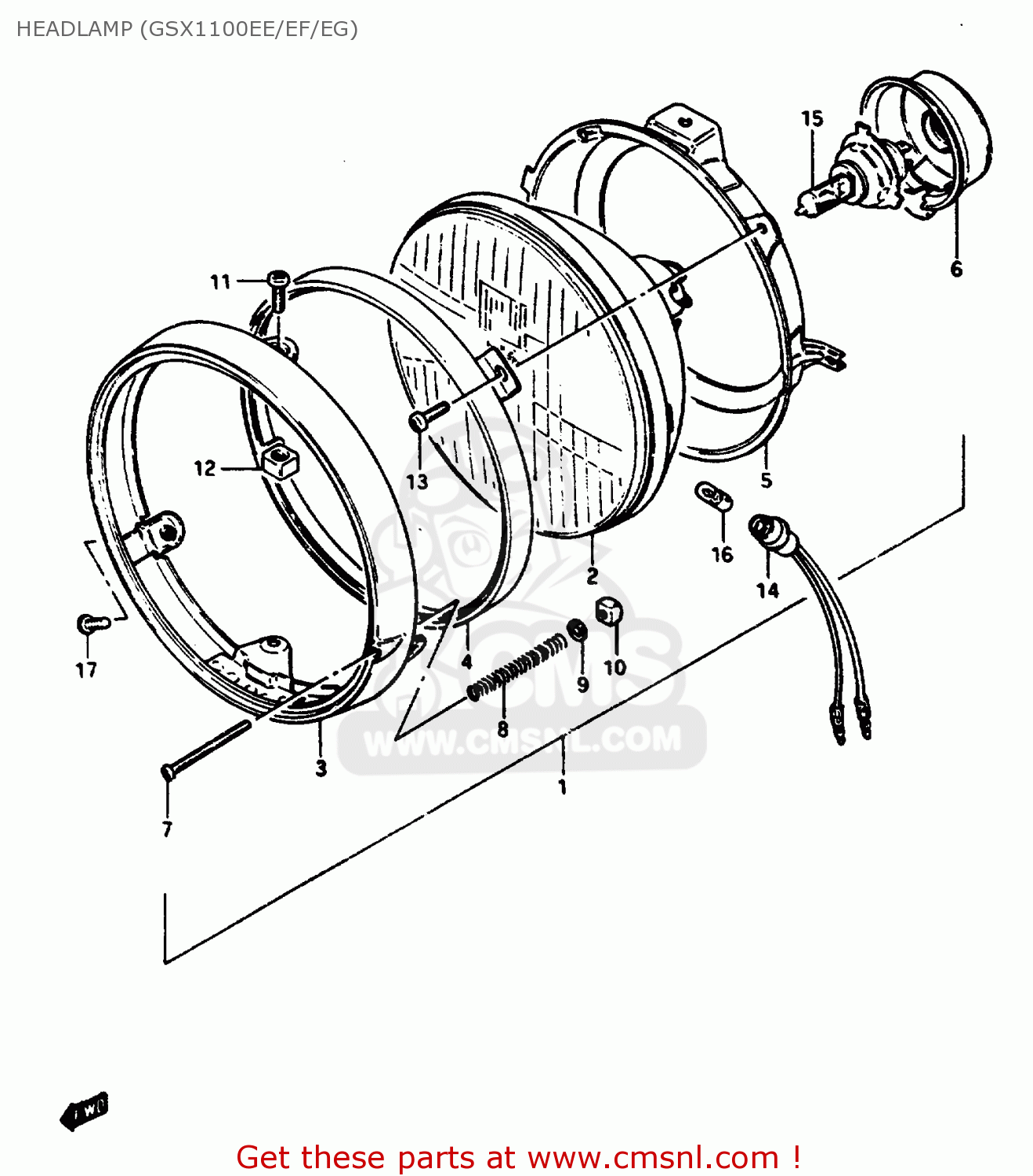

Headlamp (gsx1100ee/ef/eg) diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

HEADLAMP (GSX1100EE/EF/EG) GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
HEADLAMP (GSX1100EE/EF/EG) GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
HEADLAMP (GSX1100EE/EF/EG) GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1-1
3510000A30999
ref: 1-1
E1,E6,E24
LAMP ASSEMBLY,HEAD
€ 0.00
1-2
3510000A20999
ref: 1-2
E2
HEADLAMP ASSY
€ 0.00
1-3
3510000A40999
ref: 1-3
E4
HEADLAMP ASSY
€ 258.00
1-4
3510000A50999
ref: 1-4
E21,E22
HEADLAMP ASSY
€ 258.00
2-1
3512145930
ref: 2-1
E1,E6,E24
LAMP UNIT
3512145930
€ 151.00
2-2
3512145920
ref: 2-2
E2
UNIT
€ 164.50
2-3
3512145950
ref: 2-3
E4,E21,E22
LAMP UNIT
3512145950
€ 171.00
3
3511100A20
ref: 3
RIM,HEADLAMP
€ 69.50
4
3512745900
ref: 4
RETAINER
3512745900
€ 30.50
5
3513045900
ref: 5
RING,MOUNTING
3513045900
€ 126.00
6
3517349200
ref: 6
COVER,HEADLAMP SOCKET
3517349200
€ 12.50
7
3515145900
ref: 7
SCREW
3515145900
€ 4.00
8
3515445900
ref: 8
SPRING,HEADLAMP ADJUST
€ 3.50
9
3515727630
ref: 9
WASHER
3515727630
€ 2.50
10
3513545600
ref: 10
NUT
3513545600
€ 3.00
11
0211205128
ref: 11
SCREW
€ 2.50
12
3513545900
ref: 12
NUT
3513545900
€ 2.50
13
0211204088
ref: 13
SCREW
€ 1.50
14
3611845900
ref: 14
E2,E4,E21,E22
SOCKET,PARKING
3611845900
€ 13.00
15-1
0947112060
ref: 15-1
BULB(12V60/55W,H4)
0947112060
€ 8.00
15-2
0947112061
ref: 15-2
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
16
0947112063
ref: 16
E2,E4,E21,E22
BULB(12V4W)
0947112063
€ 6.00
17
0213205124
ref: 17
SCREW
€ 2.00
