FRAME

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

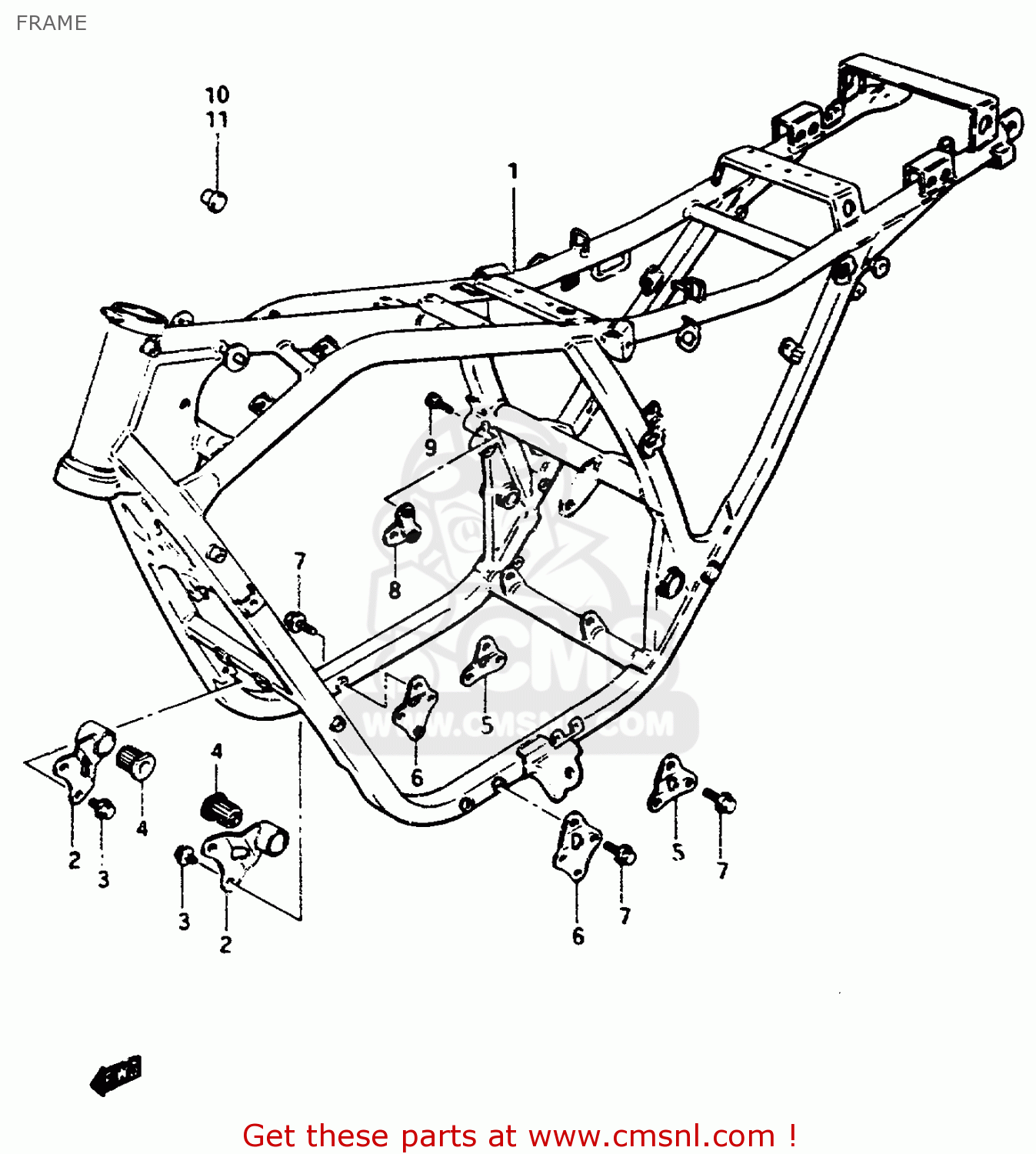

Frame diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

FRAME GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

FRAME GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1-1

4110000A0113L
ref: 1-1
MODEL E/F

FRAME

€ 1,677.50

1-2

4110000A0213L
ref: 1-2
MODEL G

FRAME

€ 1,677.50

1-3

4110000A4013L
ref: 1-3
MODEL E/F E17

FRAME (SILVER)

€ 0.00

1-4

4110000A4113L
ref: 1-4
MODEL G E17

FRAME (SILVER)

€ 0.00

1-5

4110000A3013L
ref: 1-5
MODEL E/F E16,E18

FRAME (SILVER)

€ 0.00

1-6

4110000A3113L
ref: 1-6
MODEL G E2,E16,E18

FRAME (SILVER)

€ 0.00

1-7

4110000A2013L
ref: 1-7
MODEL E/F E15,E26

FRAME (SILVER)

€ 0.00

1-8

4110000A2113L
ref: 1-8
MODEL G E15

FRAME (SILVER)

€ 0.00

1-9

4110000A5013L
ref: 1-9
MODEL E/F E24

FRAME (SILVER)

€ 0.00

1-10

4110000A5113L
ref: 1-10
MODEL G E24

FRAME (SILVER)

€ 0.00

1-11

4110000A6013L
ref: 1-11
MODEL E/F E22

FRAME (SILVER)

€ 0.00

1-12

4110000A6113L
ref: 1-12
MODEL G E22

FRAME (SILVER)

€ 0.00

2-1

4191000A0015T
ref: 2-1
MODEL E

PLATE COMP,ENGINE MOUNTING

€ 18.00

2-2

4191000A0115T
ref: 2-2
MODEL F/G

PLATE,ENGINE MOUNTING NO

€ 18.00

3

0151708128
ref: 3

BOLT 8X12

€ 3.50

4

0931910042
ref: 4

BUSH

€ 16.50

5-1

4192100A0013L
ref: 5-1
GSX1100EEE/ESE

PLATE,ENGINE MOUNTING

€ 8.00

5-2

4192100A0113L
ref: 5-2
GSX1100EF/ESF/EG/ESG

PLATE,ENGINE MOUNTING NO

€ 8.00

6

4192000A1113L
ref: 6
GSX1100EFE/EFF/EFG/G

PLATE,ENGINE MOUNTING NO

€ 11.50

7

0151708128
ref: 7

BOLT 8X12

€ 3.50

8-1

4194000A0015T
ref: 8-1
MODEL E/

PLATE,ENGINE MOUNTING

€ 0.00

8-2

4194000A0115T
ref: 8-2
MODEL F/G

PLATE,ENGINE MOUNTING NO

€ 0.00

9

0711008258
ref: 9

BOLT

€ 3.50

10

0925006008
ref: 10

CAP(OD:10)

€ 3.00

11

0925006007
ref: 11
GSX1100EE/EF/EG

PLUG

€ 2.00
