FRONT DAMPER

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

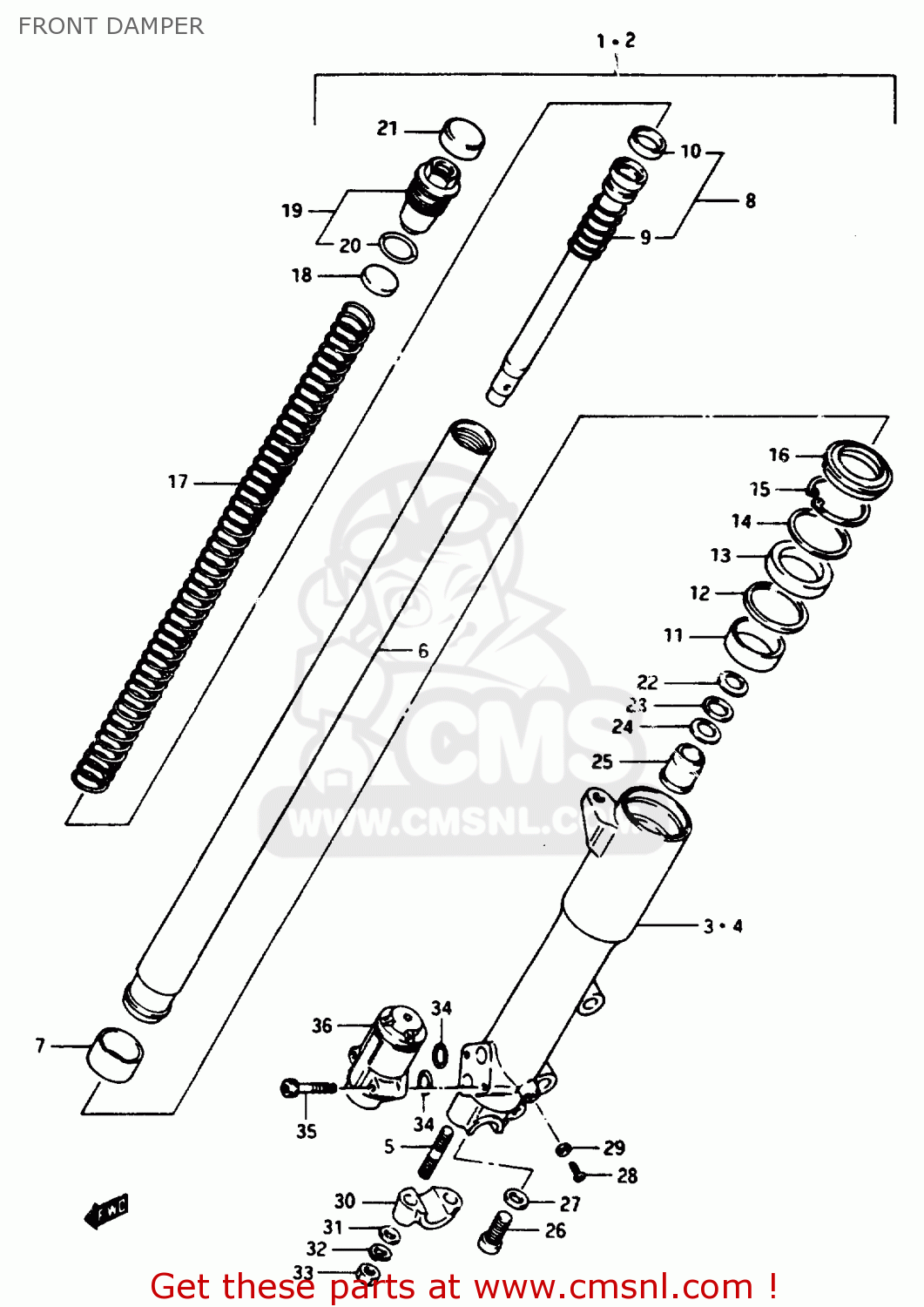

Front damper diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

FRONT DAMPER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
FRONT DAMPER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
FRONT DAMPER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1-1
5110300A00
ref: 1-1
GSX1100EE/EF/EG
DAMPER ASSY, RH
€ 720.50
1-2
5110300A30
ref: 1-2
ESX1100ESE/EFE/ESF/E
DAMPER ASSY, RH
€ 720.50
2-1
5110400A00
ref: 2-1
GSX1100EE/EF/EG
DAMPER ASSY, LH
€ 0.00
2-2
5110400A30
ref: 2-2
GSX1100ESE/EFE/ESF/E
DAMPER ASSY, LH
€ 0.00
3
5113000A0015T
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 327.00
4
5114000A0015T
ref: 4
TUBE,FORK,LEFT,OUTER
€ 276.00
5
0141108308
ref: 5
STUD 8X30
0141108308
€ 2.00
6-1
5111000A00
ref: 6-1
GSX1100EE/EF/EG
TUBE, INNER
€ 258.00
6-2
5111000A30
ref: 6-2
GSX1100ESE/EFE/ESF/E
TUBE, INNER
5111000A30
€ 300.50
7
5112149510
ref: 7
METAL,FR FORK PISTON
5112149510
€ 17.50
8
5114600A00
ref: 8
CYLINDER,FRONT FORK
€ 126.00
9
5117749200
ref: 9
SPRING,FORK REBOUND
5117749200
€ 7.00
10
5119600A00
ref: 10
RING,FR FORK PISTON
5119600A00
€ 7.50
11
5116749510
ref: 11
METAL,SLIDE
€ 10.50
12
5115849500
ref: 12
WASHER
5115849500
€ 4.00
13
5115300A00
ref: 13
SEAL,OIL
5115300A00
€ 16.50
14
5115800A00
ref: 14
WASHER,FORK OIL SEAL
5115800A00
€ 6.50
15
5115640301
ref: 15
RING,STOPPER
5115640301
€ 4.50
16
5117300A00
ref: 16
SEAL,DUST
5117300A00
€ 16.50
17-1
5117100A00
ref: 17-1
GSX1100EE/EF/EG
SPRING
€ 65.00
17-2
5117100A30
ref: 17-2
GSX1100ESE/EFE/ESF/E
SPRING
€ 65.00
18
5117249540
ref: 18
WASHER
€ 3.50
19
5135149540
ref: 19
CAP
5135149540
€ 47.00
20
5111738260
ref: 20
O RING
5111738260
€ 2.50
21
5118900A00
ref: 21
CAP,FORK INNER TUBE
5118900A00
€ 8.50
22
5112545420
ref: 22
SPRING,LEAF
5112545420
€ 3.50
23
5112345420
ref: 23
WASHER
5112345420
€ 3.50
24
5112545420
ref: 24
SPRING,LEAF
5112545420
€ 3.50
25
5119545420
ref: 25
PIECE,OIL LOCK
5119545420
€ 15.50
26
5114716510
ref: 26
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
27
5114841310
ref: 27
GASKET (NAS)
5114841310
€ 2.50
28
0211204085
ref: 28
SCREW
0211204085
€ 2.00
29
5118303010
ref: 29
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
30
511324950015T
ref: 30
HOLDER,AXLE
€ 24.50
31
0832211084
ref: 31
WASHER
0832211084
€ 1.50
32
0832121084
ref: 32
WASHER,LOCK,8.
0832121084
€ 2.50
33
0831011085
ref: 33
NUT
€ 1.50
34
5179900A00
ref: 34
O RING
5179900A00
€ 5.50
35
0711006408
ref: 35
BOLT
€ 2.50
36
5177000A00
ref: 36
P.D.F ASSY
5177000A00
€ 177.00
