WIRING HARNESS

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

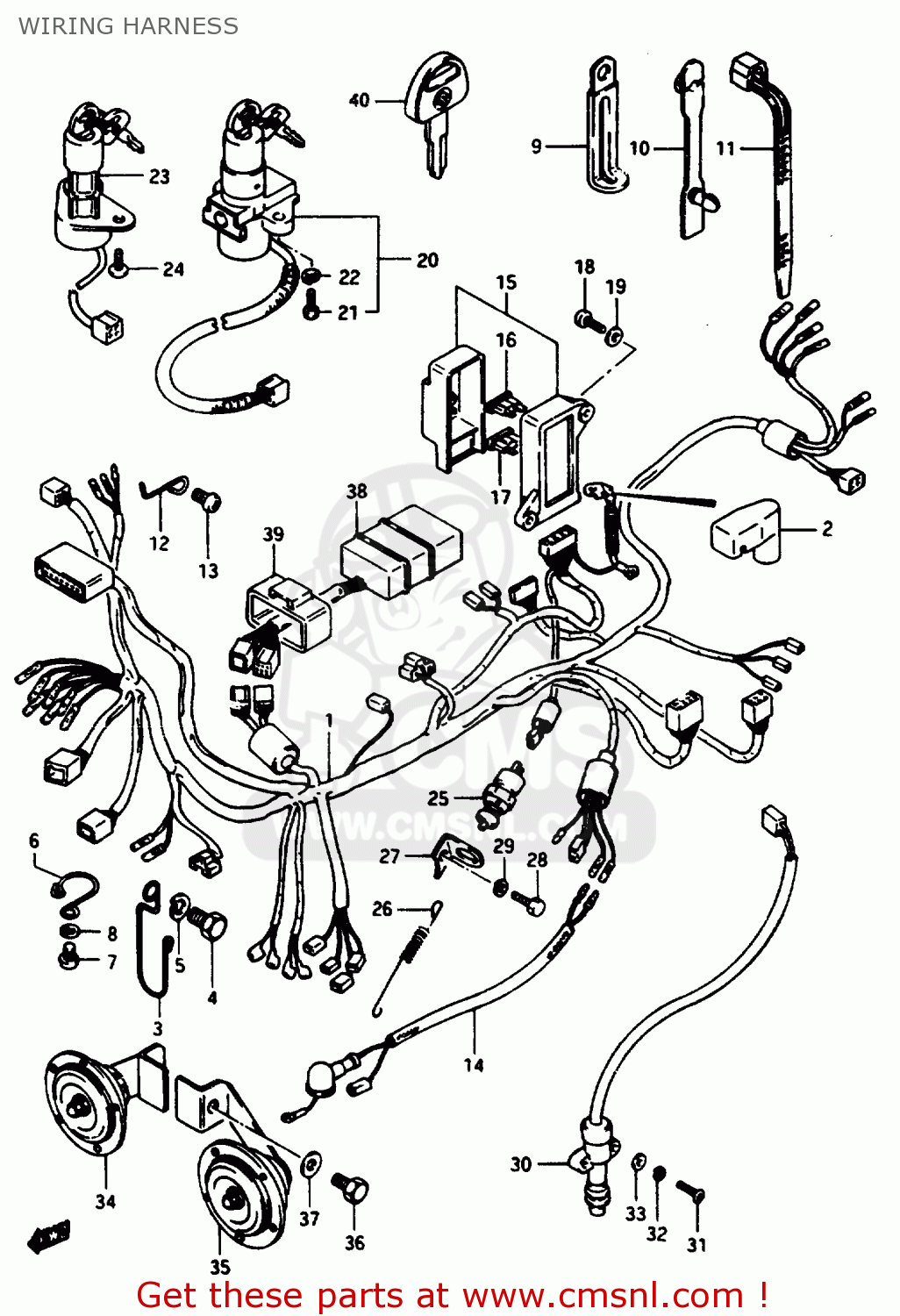

Wiring harness diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

WIRING HARNESS GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
WIRING HARNESS GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
WIRING HARNESS GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1-1
3661000A00
ref: 1-1
GSX1100EE/EF
HARNESS,WIRING
€ 0.00
1-2
3661000A50
ref: 1-2
GSX1100ESE/EFFE/ESF/
HARNESS,WIRING
€ 205.50
1-3
3661000A10
ref: 1-3
GSX1100EG E2,GSX1100
WIRING HARNESS
€ 0.00
1-4
3661000A60
ref: 1-4
GSX1100EFG E2 GSX110
WIRING HARNESS
3661000A60
€ 549.50
2
3362438400
ref: 2
CAP,BATTERY PLUS
€ 3.50
3-1
3661849302
ref: 3-1
GSX1100EE/EF/EG
GUIDE,WIRING HARNESS
3661849302
€ 4.50
3-2
3661849302
ref: 3-2
GSX1100ESE/EFE/ESF/E
GUIDE,WIRING HARNESS
3661849302
€ 4.50
4
0110708165
ref: 4
BOLT
€ 2.00
5
0832121084
ref: 5
WASHER,LOCK,8.
0832121084
€ 2.50
6
3661944002
ref: 6
GSX1100EE/EF/EG
CLIP,WIRING HARNESS
3661944002
€ 2.50
7
0211206128
ref: 7
SCREW 6X12
0211206128
€ 2.00
8
0832221068
ref: 8
WASHER
0832221068
€ 2.00
9-1
0940406402
ref: 9-1
CLAMP
€ 2.50
9-2
0940406415
ref: 9-2
CLAMP
€ 3.00
9-3
0940406419
ref: 9-3
GSX1100EE/EF,EG
CLAMP
€ 2.50
10
0940705403
ref: 10
CLAMP,L:88
0940705403
€ 1.50
11-1
0940711401
ref: 11-1
GSX1100ESE/EFE/ESF/E
CLAMP(L:95)
0940711401
€ 2.50
11-2
0940714403
ref: 11-2
CLAMP(L:125)
0940714403
€ 2.50
11-3
0940718402
ref: 11-3
CLAMP(L:165)
0940718402
€ 2.50
11-4
0940725401
ref: 11-4
GSX1100ESE/EFE/ESF/E
CLAMP(L:235)
0940725401
€ 4.00
12
3661900A00
ref: 12
GSX1100EE/EF E1
GUIDE,WIRING HARNESS
€ 0.00
13
0211206125
ref: 13
SCREW
0211206125
€ 1.50
14
3685249510
ref: 14
WIRE,OIL TEMPERATURE GAUGE
€ 0.00
15
3674049401
ref: 15
BOX ASSEMBLY,FUSE
3674049401
€ 69.50
16
0948110101
ref: 16
FUSE(10A)
0948110101
€ 2.50
17
0948115101
ref: 17
FUSE(15A)
0948115101
€ 1.50
18
0211206164
ref: 18
SCREW
€ 2.00
19
0832221064
ref: 19
WASHER
0832221064
€ 2.00
20-1
3710000A01
ref: 20-1
GSX1100EE/EF/EG
IGNITION SWITCH/STEERING LOCK
€ 122.50
20-2
3710000A62
ref: 20-2
GSX1100ESE/EFE/ESF/E
IGNITION SWITCH/STEERING LOCK
3710000A62
€ 118.50
21
3715247011
ref: 21
BOLT
€ 3.00
22
0832121067
ref: 22
WASHER,LOCK
0832121067
€ 2.50
23-1
3711011501
ref: 23-1
GSX1100EF/EG E22
SWITCH ASSY,IGNITION
3711011501
€ 86.00
23-2
3711000A62
ref: 23-2
GSX1100E0/EFE/ESF/EF
SWITCH ASSY, IGNITION
3711000A62
€ 70.00
24
0214206125
ref: 24
E15,E17,E22,E26
SCREW 6X12
0214206125
€ 2.00
25
3774007900
ref: 25
SWITCH ASSEMBLY,STOP LAMP
3774007900
€ 20.50
26
0944306016
ref: 26
SPRING
0944306016
€ 2.50
27
4325100A00
ref: 27
BRACKET,BRAKE LAMP SWITCH
4325100A00
€ 7.00
28
0110706127
ref: 28
BOLT
0110706127
€ 2.00
29
0832121067
ref: 29
WASHER,LOCK
0832121067
€ 2.50
30
3784043502
ref: 30
SWITCH ASSY,SIDE STAND WARNING
3784043502
€ 74.00
31
0211205205
ref: 31
SCREW 5X20
0211205205
€ 2.50
32
0832121055
ref: 32
WASHER,LOCK
0832121055
€ 3.00
33
0832221055
ref: 33
WASHER,5MM
0832221055
€ 2.50
34-1
3850100A10
ref: 34-1
HORN ASSEMBLY,HIGH PITCH
€ 49.50
34-2
3850100A20
ref: 34-2
E4,E18,E34CE39
HORN ASSY, HIGH PITCHED
€ 49.50
35-1
3850200A10
ref: 35-1
HORN ASSEMBLY,LOW PITCH
€ 49.50
35-2
3850200A20
ref: 35-2
E4,E18,E34E,39
HORN ASSY, LOW PITCHED
€ 49.50
36
0110708165
ref: 36
BOLT
€ 2.00
37
0832211084
ref: 37
WASHER
0832211084
€ 1.50
38
3886049500
ref: 38
RELAY,LAMP OUTAGE WARNING
3886049500
€ 115.00
39
3886100A00
ref: 39
STAY,LAMP OUTAGE WARNING
3886100A00
€ 8.00
40
3714647010
ref: 40
OPT
KEY,BLANK
3714647010
€ 15.00
