STAND

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

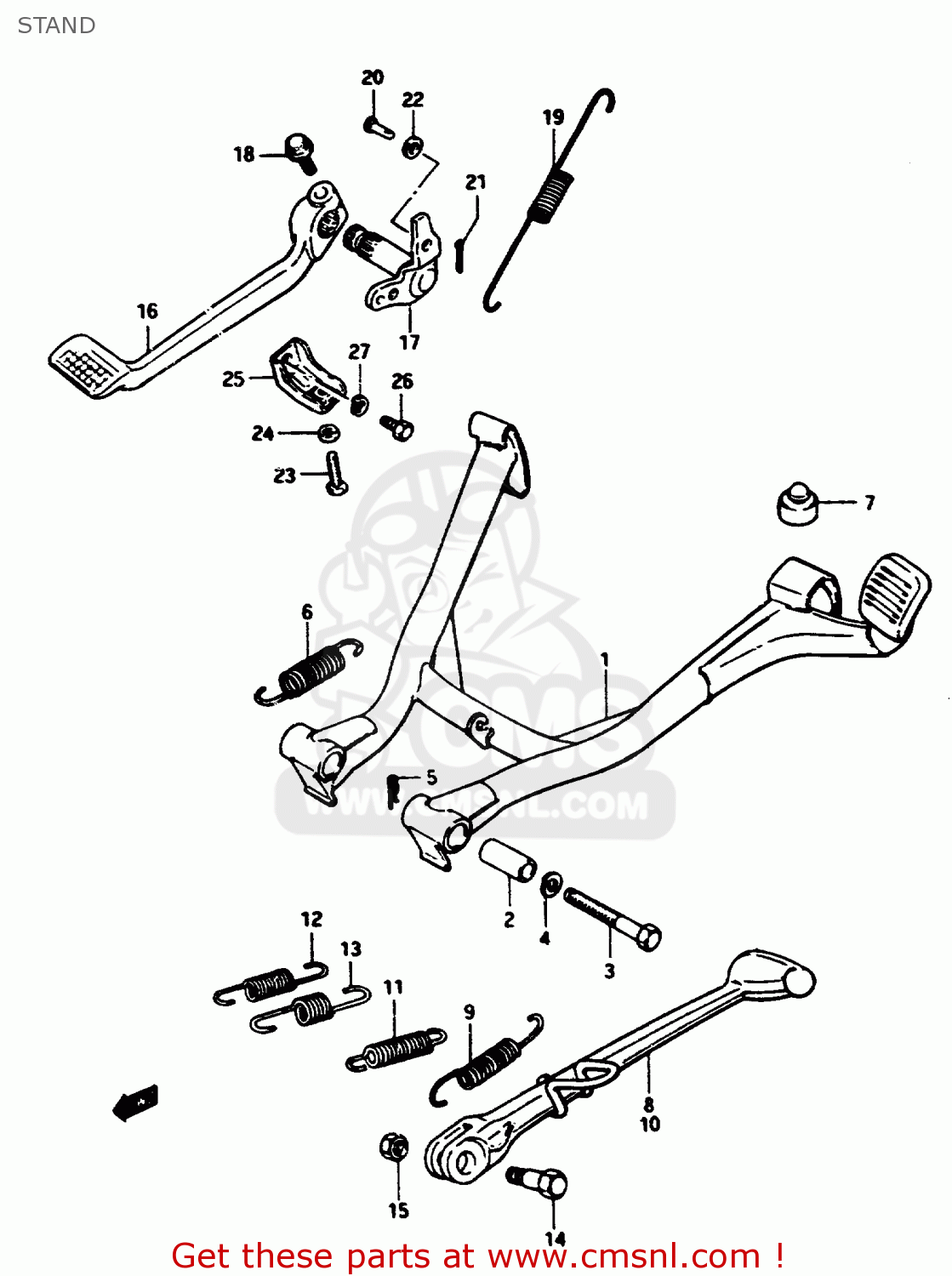

Stand diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

STAND GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

STAND GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1-1

4210000A01
ref: 1-1

STAND,CENTER

€ 105.00

1-2

4210000A10
ref: 1-2
E15,E22,E26

STAND, CENTER

€ 0.00

2

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

3

0910110034
ref: 3

BOLT

€ 6.50

4

0832121107
ref: 4

WASHER,LOCK,10

€ 2.00

5

0938510001
ref: 5

CLIP

€ 1.50

6-1

0944318012
ref: 6-1

SPRING

€ 9.00

6-2

0944318012
ref: 6-2
E15,E22,E26

SPRING

€ 9.00

7

0932110002
ref: 7

CUSHION(11.5X22X20)

€ 2.00

8

4231000A00019
ref: 8

STAND,SIDE

€ 42.00

9

0944315017
ref: 9

SPRING

€ 4.00

10

4231000A10019
ref: 10
E15,E16,E18,E22,E26,

STAND, PROP (BLACK)

€ 57.00

11

0944317015
ref: 11
E15,E16,E18,MODEL G

SPRING

€ 7.00

12

0944314033
ref: 12
E22,E26

SPRING, INNER

€ 6.00

13

0944322005
ref: 13
E22,E26

SPRING, OUTER

€ 7.00

14

0911110024
ref: 14

BOLT(10X32)

€ 4.50

15

0831022106
ref: 15

NUTM10X1.25X8

€ 2.00

16

4311100A00
ref: 16

PEDAL,BRAKE

€ 55.50

17

4312000A00
ref: 17

ARM,BRAKE PEDAL ROD

€ 34.50

18

0151708258
ref: 18

BOLT

€ 2.50

19

0944312027
ref: 19

SPRING

€ 7.50

20

0920006037
ref: 20

PIN

€ 5.00

21

0411120158
ref: 21

PIN

€ 1.50

22

0832221067
ref: 22

WASHER

€ 2.00

23

0910006055
ref: 23

BOLT(6X25)

€ 2.50

24

0831011067
ref: 24

NUT 6MM

€ 2.50

25

4326100A00
ref: 25

BRACKET, BRAKE ADJUSTE

€ 0.00

26

0110706127
ref: 26

BOLT

€ 2.00

27

0832121067
ref: 27

WASHER,LOCK

€ 2.50
