CRANKCASE COVER

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

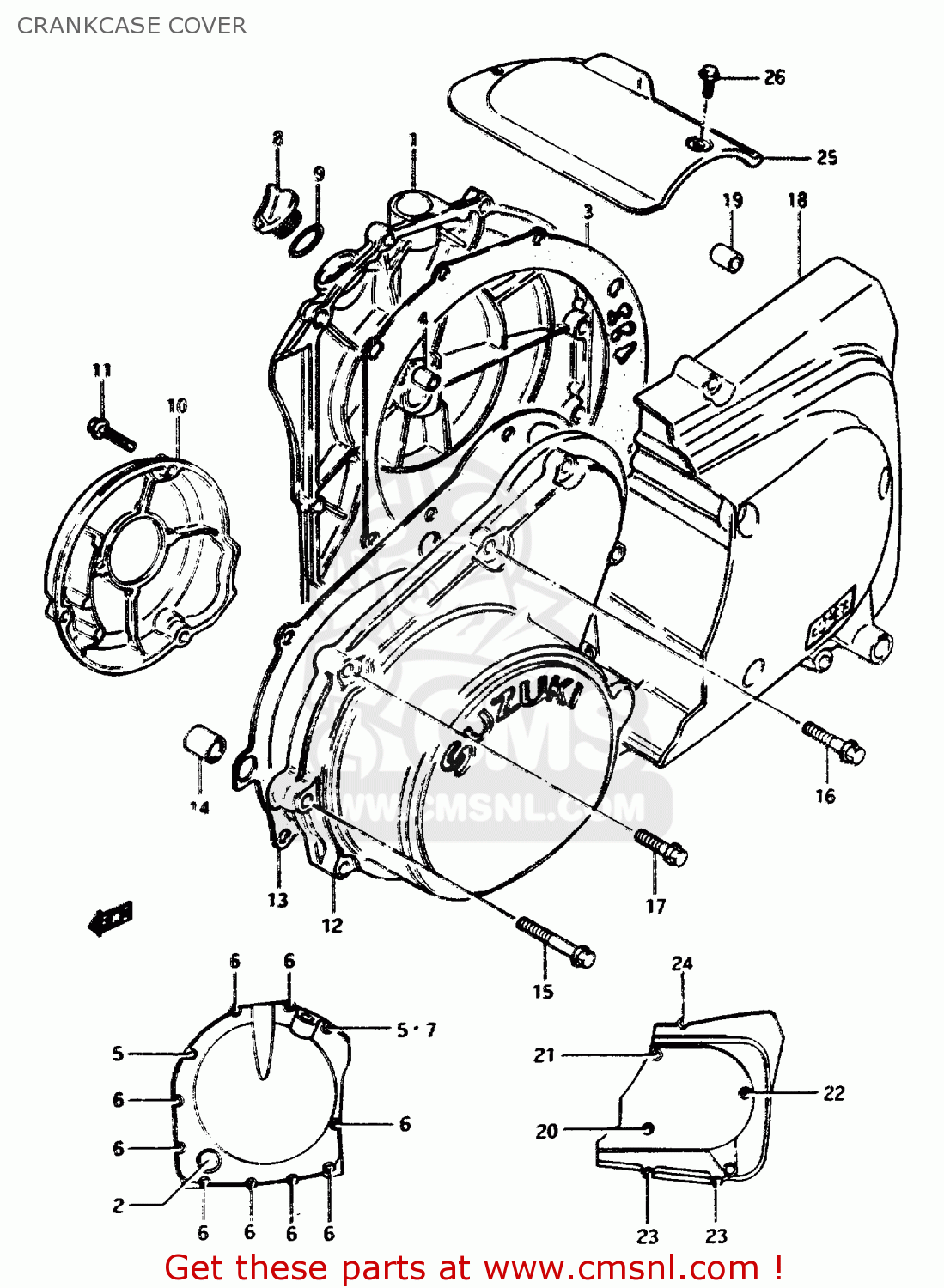

Crankcase cover diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

CRANKCASE COVER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
CRANKCASE COVER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
CRANKCASE COVER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1
1134000A00
ref: 1
COVER,CLUTCH
€ 193.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148249201
ref: 3
GASKET,CLUTCH COVER (MCA)
1148249201
€ 39.00
4
0421109129
ref: 4
PIN
0421109129
€ 2.00
5
0154706307
ref: 5
BOLT
0154706307
€ 2.50
6
0154706257
ref: 6
BOLT
0154706257
€ 2.50
7
0916806015
ref: 7
WASHER
0916806015
€ 2.00
8
0925920008
ref: 8
PLUG
0925920008
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
10
1138100A00
ref: 10
COVER,CONTACT BREAKER
1138100A00
€ 117.50
11
0154705207
ref: 11
BOLT
0154705207
€ 2.00
12
1135100A00
ref: 12
COVER,MAGNETO
€ 144.50
13
1148349200
ref: 13
GASKET,MAGNETO COVER (MCA)
1148349200
€ 13.00
14
0920613001
ref: 14
PIN
0920613001
€ 2.50
15
0154706457
ref: 15
BOLT
0154706457
€ 2.50
16
0154706307
ref: 16
BOLT
0154706307
€ 2.50
17
0154706257
ref: 17
BOLT
0154706257
€ 2.50
18
1136000A00
ref: 18
COVER,ENGINE SPROCKET
1136000A00
€ 115.50
19
0421109129
ref: 19
PIN
0421109129
€ 2.00
20
0154706907
ref: 20
BOLT
€ 3.00
21
0154706857
ref: 21
BOLT
0154706857
€ 2.50
22
0154706757
ref: 22
BOLT
0154706757
€ 2.50
23
0154706607
ref: 23
BOLT
0154706607
€ 2.50
24
0154706357
ref: 24
BOLT
0154706357
€ 2.50
25
1138245410
ref: 25
COVER,STARTER MOTOR
1138245410
€ 35.00
26
0154705087
ref: 26
BOLT
0154705087
€ 2.00
