TURNSIGNAL LAMP GSX1100ESE/EFE/ESF/EFF/EFG/GS1150ESF/EFF/EFG

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

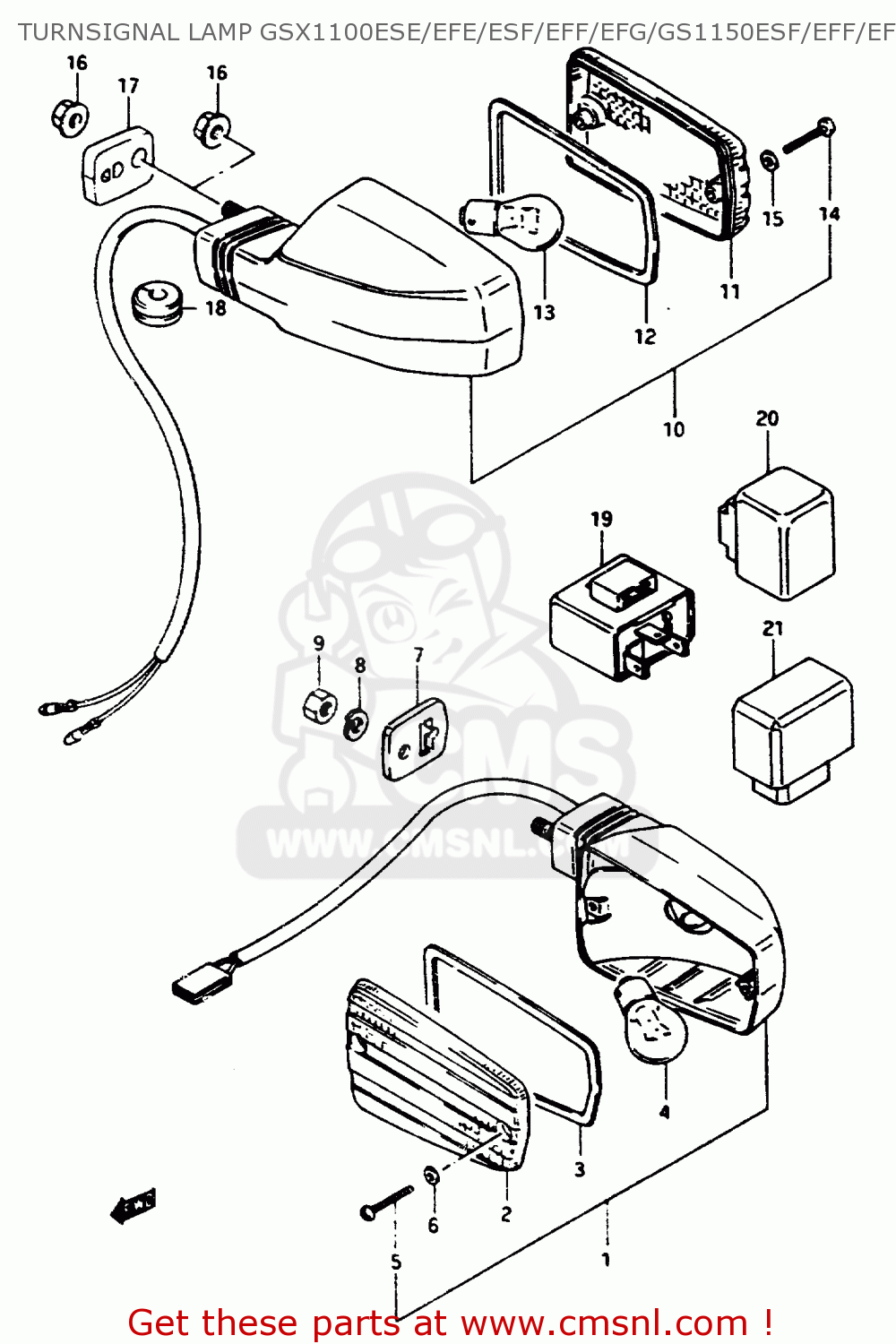

Turnsignal lamp gsx1100ese/efe/esf/eff/efg/gs1150esf/eff/efg diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

TURNSIGNAL LAMP GSX1100ESE/EFE/ESF/EFF/EFG/GS1150ESF/EFF/EFG GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

TURNSIGNAL LAMP GSX1100ESE/EFE/ESF/EFF/EFG/GS1150ESF/EFF/EFG GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1-1

3560100A60
ref: 1-1
E1,E6,E24

LAMP ASSY,FR T

€ 87.50

1-2

3560100A70
ref: 1-2
MODEL E/F,E2,E17

LAMP ASSY, FRONT TURN SIGNAL

€ 87.50

1-3

3560100A80
ref: 1-3
MODEL G E2,E17

LAMP ASSY,FRON

€ 87.50

1-4

3560100A70
ref: 1-4
E4,E15,E16,E18,E21,E

LAMP ASSY, FRONT TURN SIGNAL

€ 87.50

2-1

3561243410
ref: 2-1

LENS

€ 11.00

2-2

3561200A80
ref: 2-2
MODEL G E2,E17

LENS,FR TURNSIGNAL LAMP

€ 11.00

3

3561343410
ref: 3

GASKET (NAS)

€ 3.50

4-1

0947112006
ref: 4-1
E1,E6,E24

BULB(12V23W,STANLEY,A4577A)

€ 4.00

4-2

0947112045
ref: 4-2
E2,E4,E15,E16,E17,E1

BULB(12V21W)

€ 5.00

5

0321104208
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3569500A00
ref: 7

SPACER,FRONT TURN SIGNAL

€ 0.00

8

0832121088
ref: 8

LOCK WASHER

€ 2.00

9

0915908037
ref: 9

NUT

€ 0.00

10-1

3560100A10
ref: 10-1
E1,E6,E24

LAMP ASSY, FRONT TURN SIGNAL

€ 77.50

10-2

3560300A20
ref: 10-2
MODEL E/F E2,E17

LAMP ASSY, REAR TURN SIGNAL

€ 86.50

10-3

3560300A70
ref: 10-3
MODEL G E2,E17

LAMP ASSY, REAR TURN SIGNAL

€ 86.50

10-4

3560300A20
ref: 10-4
E4,E21,E25,E34

LAMP ASSY, REAR TURN SIGNAL

€ 86.50

10-5

3560300A40
ref: 10-5
E15

LAMP ASSY, REAR TURN SIGNAL

€ 0.00

10-6

3560343421
ref: 10-6
E16,E18,E22,E26,E39

LAMP ASSY, REAR TURN SIGNAL

€ 75.00

11-1

3561243410
ref: 11-1
E1,E6,E24

LENS

€ 11.00

11-2

3565243420
ref: 11-2
MODEL E/F E2,E17

LENS,TURN SIGN

€ 11.50

11-3

3565200A70
ref: 11-3
MODEL G E2,E17

LENS

€ 11.50

11-4

3565243420
ref: 11-4
E4,E15,E16,E18,E21,E

LENS,TURN SIGN

€ 11.50

12

3561343410
ref: 12

GASKET (NAS)

€ 3.50

13-1

0947112006
ref: 13-1
E1,E6,E24

BULB(12V23W,STANLEY,A4577A)

€ 4.00

13-2

0947112045
ref: 13-2
E2,E4,E15,E16,E17,E1

BULB(12V21W)

€ 5.00

14

0321104208
ref: 14

SCREW

€ 1.50

15

3562743010
ref: 15

GASKET (NAS)

€ 2.00

16

0831626086
ref: 16

NUT

€ 1.50

17

3569500A10
ref: 17
E15

SPACER

€ 0.00

18

0930805011
ref: 18

GROMMET

€ 2.00

19

3861049231
ref: 19

RELAY ASSY,TURNSIGNAL

€ 71.00

20

3861045091
ref: 20
E22, MODEL G E2

RELAY ASSY,TUR

€ 67.50

21

3883049500
ref: 21

UNIT,TURN SIGNAL CONTROL

€ 269.50

all assemblies
