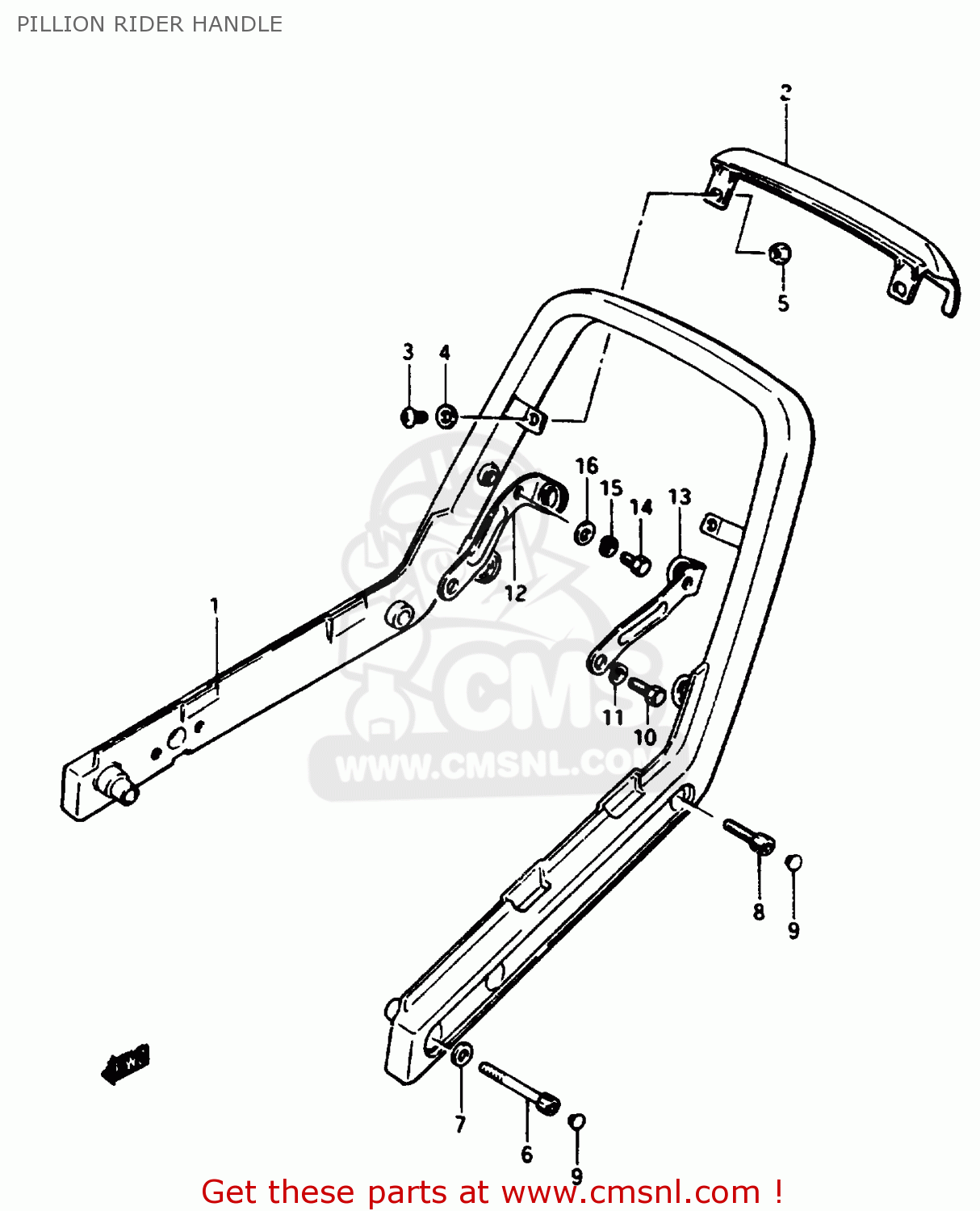

PILLION RIDER HANDLE

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

Pillion rider handle diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

PILLION RIDER HANDLE GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

PILLION RIDER HANDLE GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1

4621000A00
ref: 1

HANDLE,PILLION RIDER

€ 167.50

2-1

4622200A01
ref: 2-1
MODEL E

COVER,PILLION RIDER HANDLE

€ 13.50

2-2

4622200A02
ref: 2-2
MODEL F/G

COVER,PILLION RIDER HANDLE

€ 13.50

3

0214205126
ref: 3

SCREW

€ 1.50

4

0832221056
ref: 4

WASHER

€ 2.50

5

0831616056
ref: 5

NUT

€ 2.50

6

0711008505
ref: 6

BOLT

€ 3.50

7

0832211084
ref: 7

WASHER

€ 1.50

8

0711008255
ref: 8

BOLT

€ 3.50

9

0925006008
ref: 9

CAP(OD:10)

€ 3.00

10

0110708166
ref: 10

BOLT, 8X1.25X1

€ 2.00

11

0832121086
ref: 11

WASHER,LOCK,8.

€ 2.50

12

4623000A00
ref: 12

PLATE,PILLION RIDER HANDLE

€ 0.00

13

4624000A00
ref: 13

PLATE,PILLION RIDER HANDLE

€ 0.00

14

0110708126
ref: 14

BOLT 8X12

€ 1.50

15

0832121086
ref: 15

WASHER,LOCK,8.

€ 2.50

16

0832211086
ref: 16

WASHER 8MM

€ 1.50

all assemblies
