REAR SHOCK ABSORBER

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

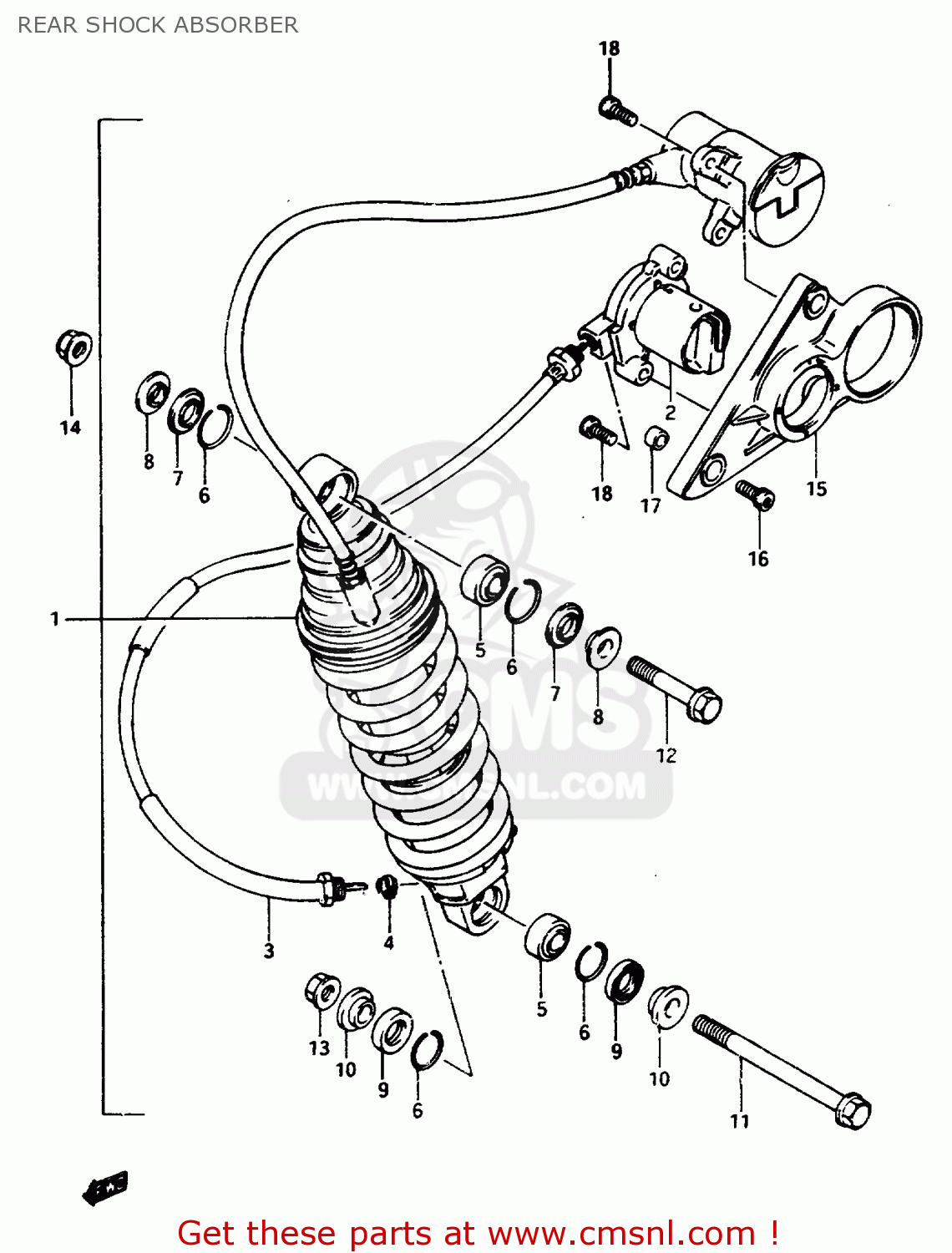

Rear shock absorber diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

REAR SHOCK ABSORBER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
REAR SHOCK ABSORBER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
REAR SHOCK ABSORBER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1-1
6210000A00
ref: 1-1
GSX1100EE
SHOCK ABSORBER, REAR
€ 1,281.00
1-2
6210000A01
ref: 1-2
GSX1100EF/EG
SHOCK ABSORBER, REAR
€ 1,281.00
1-3
6210000A20
ref: 1-3
GSX1100ESE/EFE
SHOCK ABSORBER, REAR
€ 1,281.00
1-4
6210000A21
ref: 1-4
GSX1100ESF/EFF/ESG/E
ABSORBER ASSY,
€ 1,281.00
2
6235000A00
ref: 2
ADJUSTER
€ 110.50
3
6235800A00
ref: 3
CABLE,CONTROL
€ 80.00
4
6235533300
ref: 4
GEAR,DAMPER ADJUSTER
€ 0.00
5
6217543400
ref: 5
BEARING,REAR SHOCK ABSORBER
€ 66.00
6
6227714200
ref: 6
RING
6227714200
€ 1.50
7
6222600A00
ref: 7
SEAL,DUST UPR
6222600A00
€ 8.00
8
6268400A00
ref: 8
COLLAR,UPR
6268400A00
€ 13.00
9
6222643410
ref: 9
SEAL,DUST
6222643410
€ 7.50
10
6268443401
ref: 10
SPACER
6268443401
€ 7.00
11
0910310063
ref: 11
BOLT(10X115)
0910310063
€ 5.00
12
0910310064
ref: 12
BOLT(10X50)
0910310064
€ 4.50
13
0831931105
ref: 13
NUT 10MM
€ 3.00
14
0831931108
ref: 14
NUT
0831931108
€ 3.00
15-1
6236100A10
ref: 15-1
GSX1100EE/EF/EG
BRACKET
€ 0.00
15-2
6236100A00
ref: 15-2
GSX1100ESE/EFE/ESF/E
BRACKET
€ 0.00
16
0711006305
ref: 16
BOLT
0711006305
€ 3.00
17
0918006010
ref: 17
SPACER(6.5X12X6.9)
0918006010
€ 2.50
18
0711006166
ref: 18
BOLT
€ 2.50
