MUFFLER

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

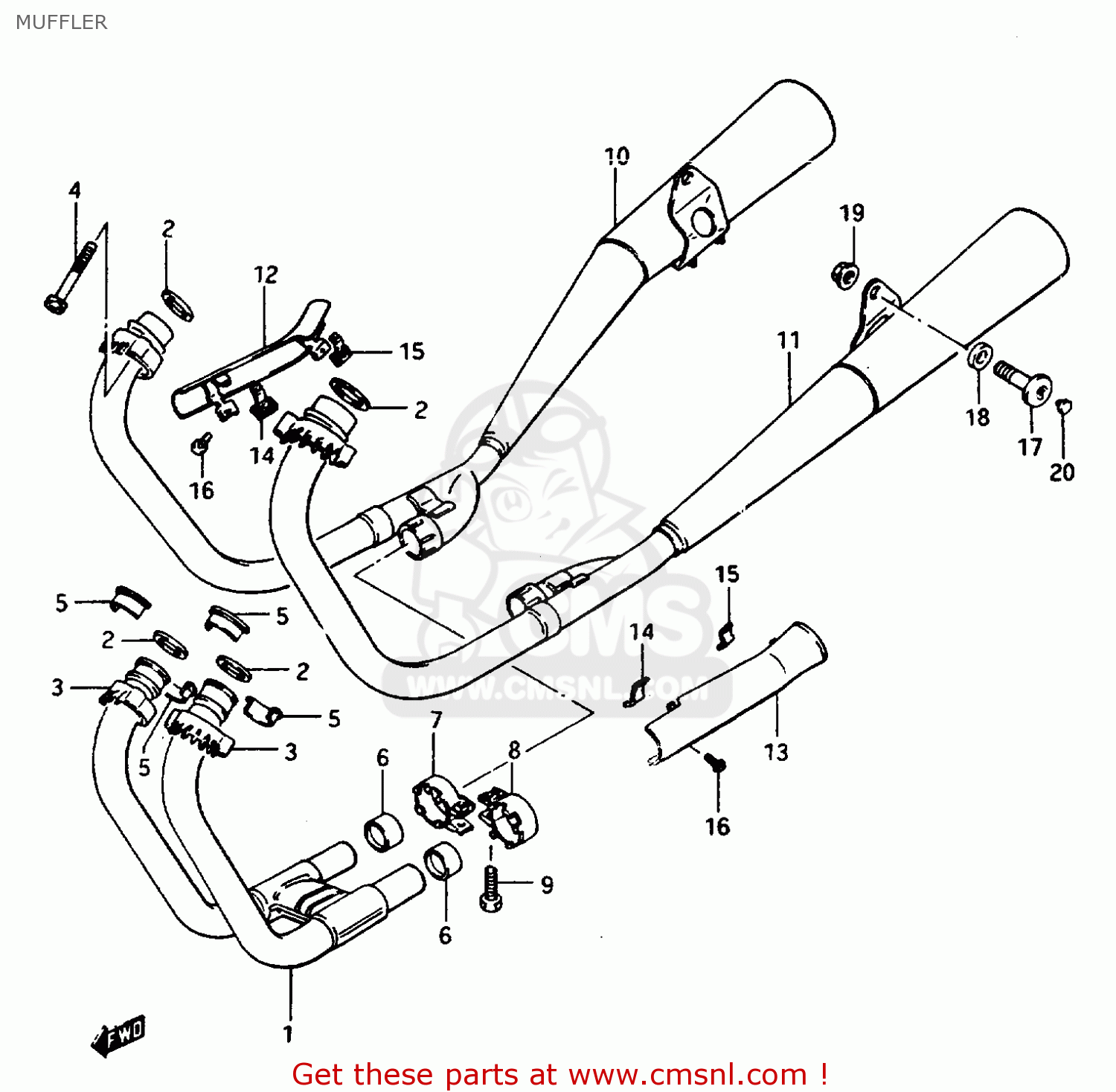

Muffler diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

MUFFLER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
MUFFLER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
MUFFLER GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1
1410000A01H01
ref: 1
PIPE,EXHAUST,CENTER
1410000A01H01
€ 218.50
2
1418111020
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418111020
€ 8.00
3
1418249011
ref: 3
CLAMP(H:21)
1418249011
€ 49.00
4
0910608052
ref: 4
BOLT
€ 3.50
5
1415549000A
ref: 5
PLATE,EXHAUST P
€ 9.50
6
1477100A01
ref: 6
CONNECTOR,MUFFLER
1477100A01
€ 29.00
7
1445931300
ref: 7
CLAMP,MUFFLER CONNECTOR
1445931300
€ 17.00
8
1446931300
ref: 8
CLAMP,MUFFLER CONNECTOR
1446931300
€ 22.00
9
0151708254
ref: 9
BOLT
0151708254
€ 2.50
10-1
1430100A03
ref: 10-1
MUFFLER, RH
€ 324.50
10-2
1430100A23
ref: 10-2
E2,E4,E1K,E16,E17,E1
MUFFLER, RH
€ 324.50
11-1
1430200A03
ref: 11-1
MUFFLER, LH
€ 381.50
11-2
1430200A23
ref: 11-2
E2,E4,E15,E16,E17,E1
MUFFLER, LH
€ 381.50
12
1478000A01
ref: 12
COVER,MUFFLER,RIGHT
1478000A01
€ 37.50
13
1479000A01
ref: 13
COVER,MUFFLER,LEFT
1479000A01
€ 35.50
14
1478500A00
ref: 14
CLAMP,MUFFLER COVER
1478500A00
€ 4.00
15
1478500A10
ref: 15
CLAMP,MUFFLER COVER
1478500A10
€ 5.50
16
0211205165
ref: 16
SCREW
0211205165
€ 2.00
17
0910610015
ref: 17
BOLT
0910610015
€ 4.50
18
0916010005
ref: 18
WASHER(10.5X20X3.2)
0916010005
€ 2.00
19
0831616105
ref: 19
NUT
€ 2.00
20
4357534500
ref: 20
CAP
4357534500
€ 1.50
