STARTING MOTOR

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

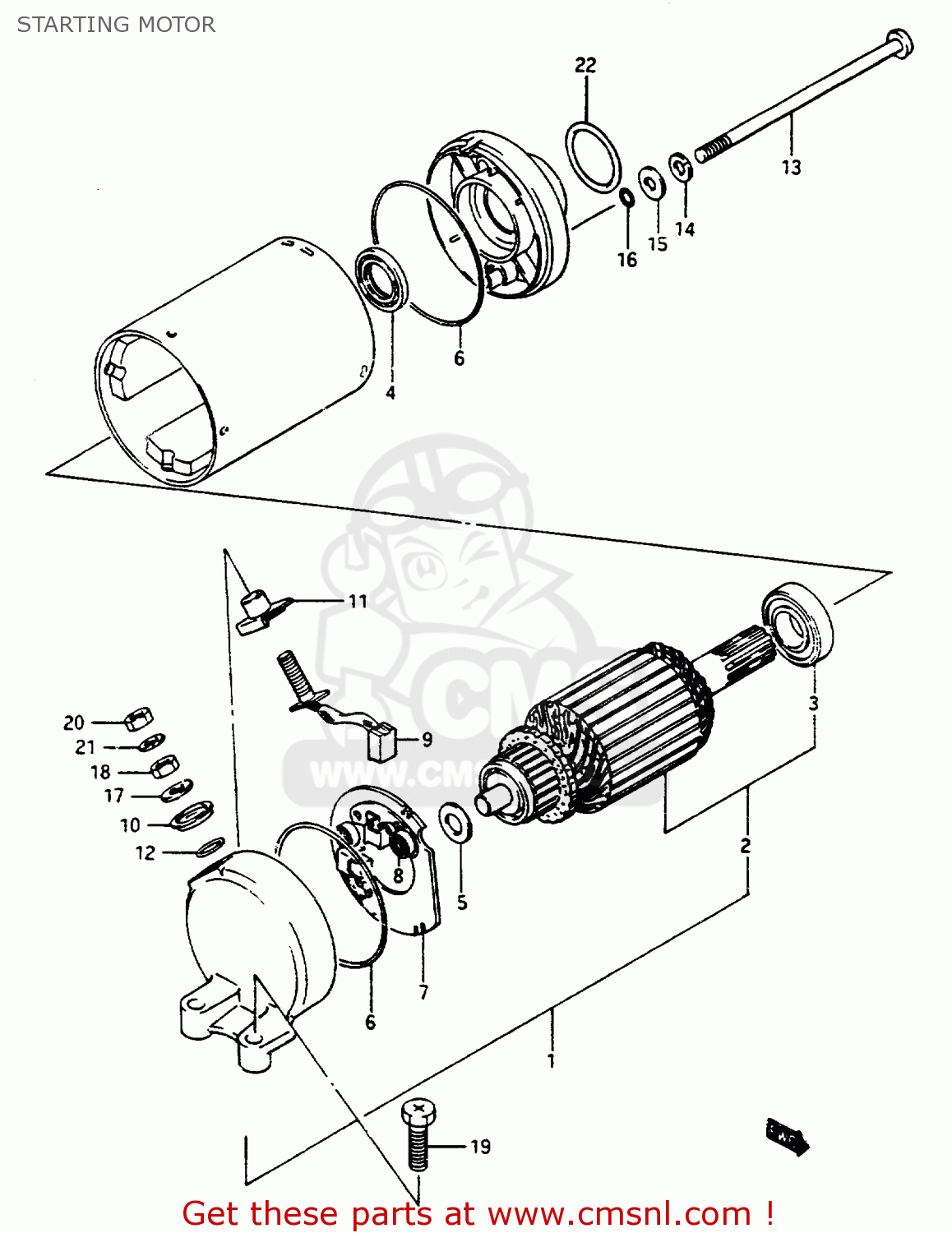

Starting motor diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

STARTING MOTOR GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
STARTING MOTOR GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
STARTING MOTOR GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1
3110000A00
ref: 1
MOTOR ASSEMBLY,STARTING
€ 766.50
2
3131000A00
ref: 2
ARMATURE
€ 221.00
3
3115545010
ref: 3
BEARING
€ 21.00
4
3115349210
ref: 4
SEAL,OIL
3115349210
€ 15.00
5
3136147010
ref: 5
SHIM,ARMATURE
€ 3.50
6
3126444110
ref: 6
O RING
3126444110
€ 8.00
7
3113244110
ref: 7
HOLDER,BRUSH
€ 47.00
8
3113565010
ref: 8
SPRING
3113565010
€ 3.00
9
3113038300
ref: 9
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 12.50
10
3117238300
ref: 10
BUSHING
3117238300
€ 4.00
11
3117138300
ref: 11
BUSH,B
3117138300
€ 5.50
12
3114338300
ref: 12
O RING
3114338300
€ 3.50
13
3128105300
ref: 13
BOLT
€ 8.50
14
0832121057
ref: 14
LOCK WASHER
0832121057
€ 2.00
15
3116138300
ref: 15
WASHER
3116138300
€ 2.50
16
3115638300
ref: 16
O RING
3115638300
€ 3.00
17
0832221067
ref: 17
WASHER
0832221067
€ 2.00
18
0831022068
ref: 18
NUT 6MM
€ 2.50
19
0912806024
ref: 19
SCREW (6X25)
0912806024
€ 2.50
20
0831011066
ref: 20
NUT
€ 2.00
21
0832121066
ref: 21
WASHER,LOCK
0832121066
€ 2.00
22
0928024003
ref: 22
O RING(D:3,ID:24.5)
0928024003
€ 2.00
