HEADLAMP (GSC1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EEF/EFG)

GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

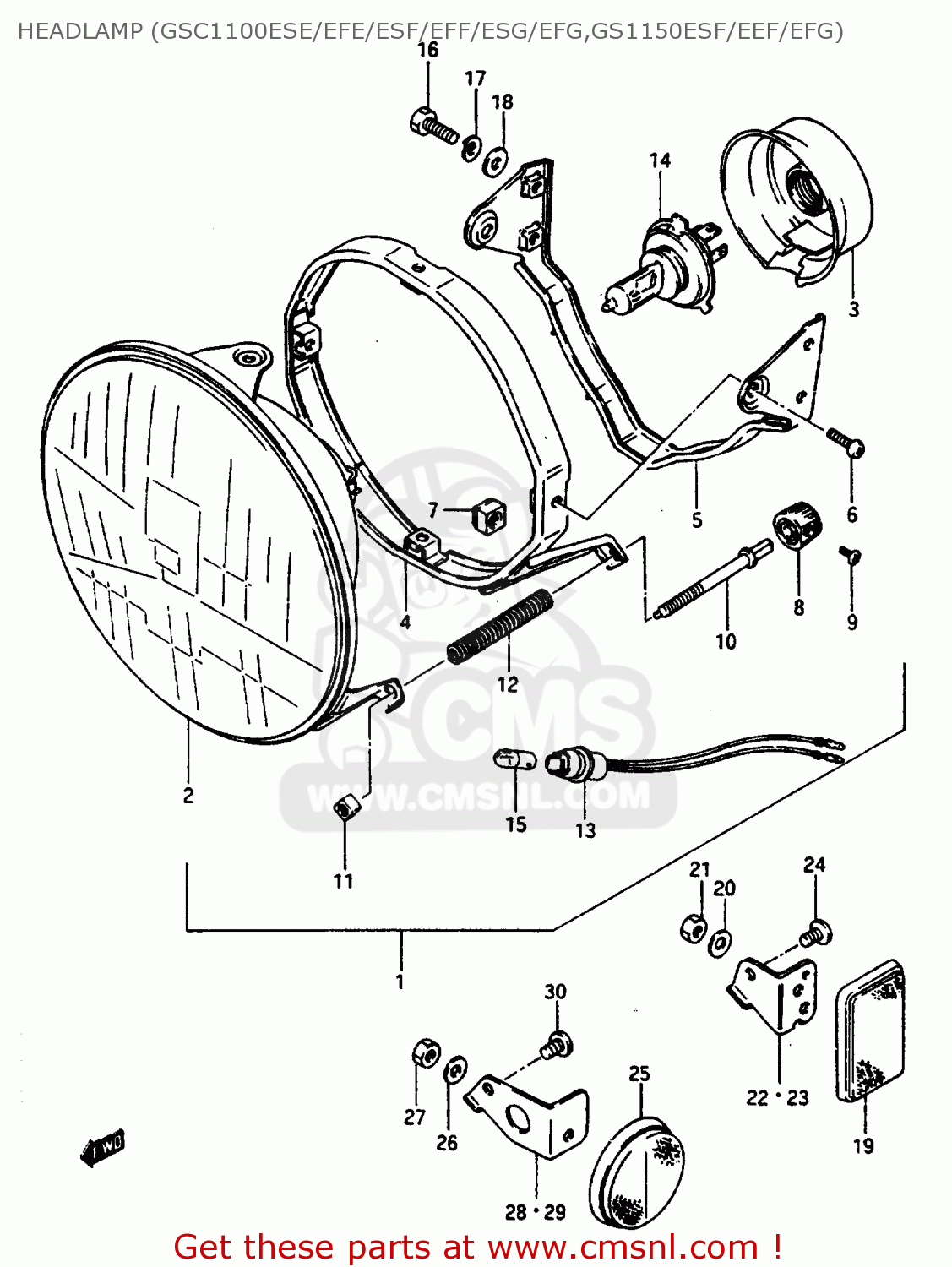

Headlamp (gsc1100ese/efe/esf/eff/esg/efg,gs1150esf/eef/efg) diagram GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

HEADLAMP (GSC1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EEF/EFG) GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
HEADLAMP (GSC1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EEF/EFG) GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
HEADLAMP (GSC1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EEF/EFG) GSX1100EF 1984 (E) (01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1-1
3510000A60999
ref: 1-1
E1,E6,E24
LAMP ASSEMBLY,HEAD
€ 0.00
1-2
3510000A70999
ref: 1-2
E2
HEADLAMP ASSY
€ 0.00
1-3
3510000A80999
ref: 1-3
E4
HEADLAMP ASSY
€ 127.50
1-4
3510000A90999
ref: 1-4
E15,E16,E17,E18,E21,
HEADLAMP ASSY
€ 127.50
2-1
3512100A60
ref: 2-1
E1,E6,E24
UNIT,HEADLAMP
€ 0.00
2-2
3512100A70
ref: 2-2
E2
UNIT
€ 0.00
2-3
3512100A90
ref: 2-3
E4,E15,E16,E17,E18,E
UNIT,HEAD LAMP
3512100A90
€ 145.50
3
3517349200
ref: 3
COVER,HEADLAMP SOCKET
3517349200
€ 12.50
4
3513000A60
ref: 4
RING,MOUNTING
€ 36.00
5
3514100A60
ref: 5
HOUSING,LAMP UNIT
€ 29.00
6
0211205125
ref: 6
SCREW
0211205125
€ 1.50
7
3513545900
ref: 7
NUT
3513545900
€ 2.50
8
3516149320
ref: 8
KNOB,ADJUSTER
3516149320
€ 6.00
9
0211203108
ref: 9
SCREW
0211203108
€ 1.50
10
3515149500
ref: 10
SCREW,HEADLAMP ADJUST
€ 16.50
11
3515249500
ref: 11
NUT,HEADLAMP ADJUSTER
3515249500
€ 2.50
12
3515449500
ref: 12
SPRING
3515449500
€ 4.50
13
3611845900
ref: 13
E2,E4,E15,E16,E18,E2
SOCKET,PARKING
3611845900
€ 13.00
14-1
0947112060
ref: 14-1
BULB(12V60/55W,H4)
0947112060
€ 8.00
14-2
0947112061
ref: 14-2
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
15
0947112063
ref: 15
E2,E4,E15,E16,E18,E2
BULB(12V4W)
0947112063
€ 6.00
16
0110706165
ref: 16
BOLT 6X16
0110706165
€ 2.00
17
0832121064
ref: 17
WASHER,LOCK
0832121064
€ 2.00
18
0832221064
ref: 18
WASHER
0832221064
€ 2.00
19
3595031310
ref: 19
E39
REFLEX REFLECTOR, FRONT SIDE
€ 0.00
20
0832221055
ref: 20
E39
WASHER,5MM
0832221055
€ 2.50
21
0831012055
ref: 21
E39
NUT ,5MM
0831012055
€ 2.50
22
3595600A00
ref: 22
E39
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
23
3595700A00
ref: 23
E39
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
24
0214205085
ref: 24
E39
SCREW
0214205085
€ 2.00
25
3595014A00
ref: 25
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
26
0832221055
ref: 26
E39
WASHER,5MM
0832221055
€ 2.50
27
0831012055
ref: 27
E39
NUT ,5MM
0831012055
€ 2.50
28
3595600A10
ref: 28
E39
BRACKET, RH
€ 0.00
29
3595700A10
ref: 29
E39
BRACKET, LH
€ 0.00
30
0214205085
ref: 30
E39
SCREW
0214205085
€ 2.00
