CAM SHAFT - VALVE (MODEL D)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

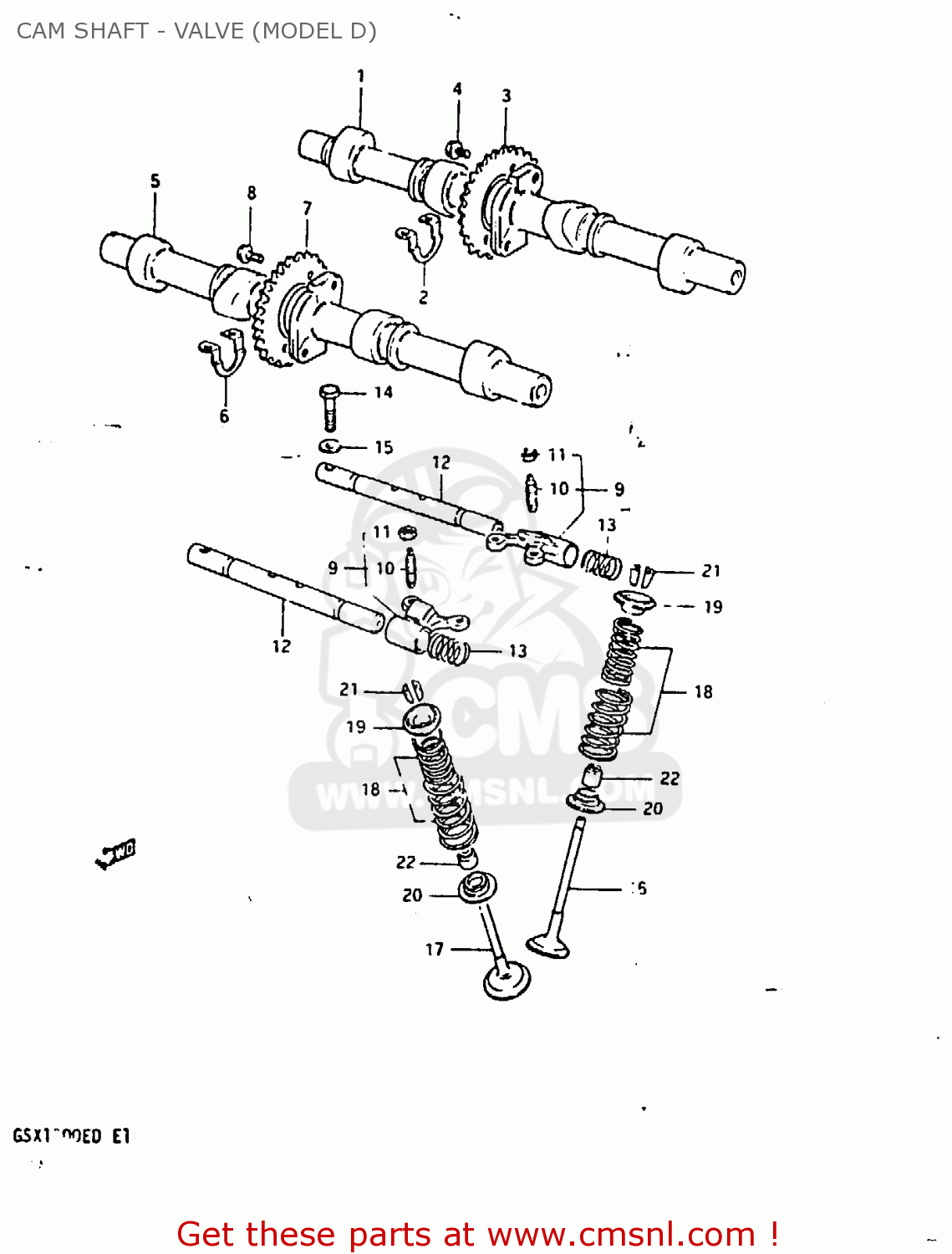

Cam shaft - valve (model d) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CAM SHAFT - VALVE (MODEL D) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CAM SHAFT - VALVE (MODEL D) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

1270049810
ref: 1-2
E2, E4, E15, E16, E1

CAMSHAFT,INTAKE

€ 228.50

2-1

1271245070
ref: 2-1

SHIM,CAMSHAFT

€ 11.50

2-2

1271245071
ref: 2-2

SHIM

€ 7.50

2-3

1271245072
ref: 2-3

SHIM,CAMSHAFT

€ 9.50

3-1

NOTUSED
ref: 3-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3-2

1274145111
ref: 3-2
E2, E4, E15, E16, E1

SPROCKET,INTAKE CAMSHAFT

€ 33.50

4

0910307001
ref: 4

BOLT(7X11)

€ 2.00

5-1

NOTUSED
ref: 5-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5-2

1270045820
ref: 5-2
E2, E4, E15, E16, E1

CAMSHAFT SET,EXHAUST

€ 372.50

6-1

1271245070
ref: 6-1

SHIM,CAMSHAFT

€ 11.50

6-2

1271245071
ref: 6-2

SHIM

€ 7.50

6-3

1271245072
ref: 6-3

SHIM,CAMSHAFT

€ 9.50

7

1275147002
ref: 7

SPROCKET,EXHAUST CAMSHAFT

€ 30.00

8

0910307001
ref: 8

BOLT(7X11)

€ 2.00

9

1284049200
ref: 9

ARM,VALVE ROCKER

€ 77.00

10

1284249210
ref: 10

SCREW,TAPPET ADJUSTING

€ 5.50

11

1284349210
ref: 11

NUT,ADJUSTING

€ 3.00

12

1286049200
ref: 12

SHAFT,VALVE ROCKER

€ 33.50

13

0944013014
ref: 13

SPRING

€ 2.50

14

0110706308
ref: 14

BOLT

€ 2.50

15

0832221068
ref: 15

WASHER

€ 2.00

16

1291149220
ref: 16

VALVE,INTAKE

€ 27.50

17

1291249220
ref: 17

VALVE,EXHAUST

€ 48.00

18

1292049210
ref: 18

SPRING SET,VALVE

€ 16.00

19

1293149200
ref: 19

RETAINER,VALVE SPRING

€ 5.50

20

1293349200
ref: 20

SEAT,VALVE SPRING

€ 4.50

21

1293249200
ref: 21

COTTER VALVE

€ 2.50

22

0928905003
ref: 22

OIL SEAL

€ 6.50
