STEERING STEM (GSX1100Z/D/XD)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

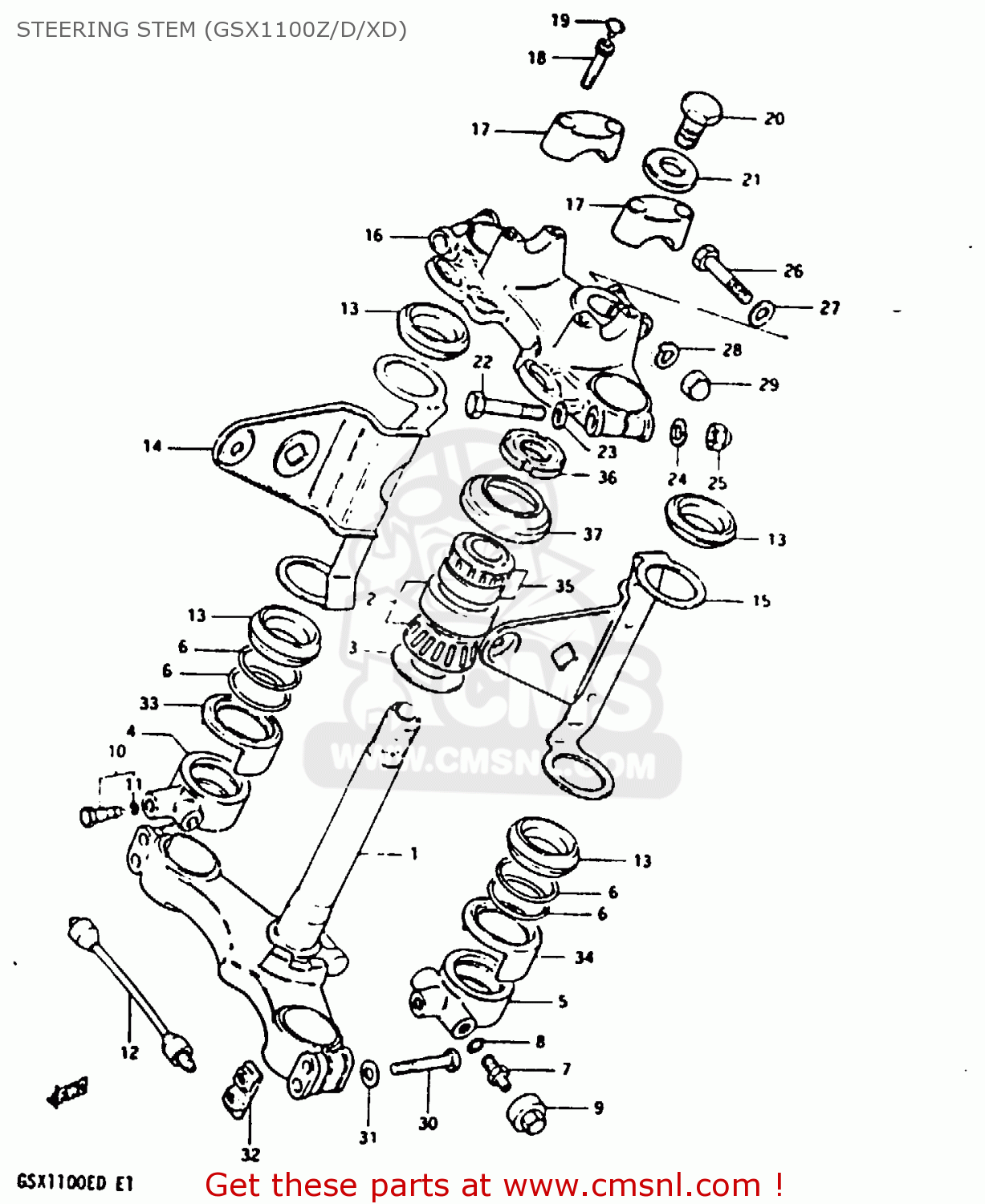

Steering stem (gsx1100z/d/xd) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

STEERING STEM (GSX1100Z/D/XD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

STEERING STEM (GSX1100Z/D/XD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1

5141049520291
ref: 1

STEM,STEERING

€ 140.00

2

0926530005
ref: 2

BEARING

€ 49.50

3

0821130402
ref: 3

WASHER,THRUST

€ 4.00

4

5143149200291
ref: 4

JOINT,AIR,RIGHT

€ 38.50

5

5143249200291
ref: 5

BRACKET,FORK CONNECTING

€ 48.50

6

5143649200
ref: 6

O RING

€ 3.00

7

5129349001
ref: 7

VALVE

€ 18.00

8

5111741211
ref: 8

O RING

€ 6.50

9

5129449000
ref: 9

CAP,VALVE

€ 22.50

10

5143449200
ref: 10

VALVE,STOP

€ 8.00

11

5143549200
ref: 11

O RING

€ 2.50

12

5143349500
ref: 12

HOSE,FORK CONNECTING

€ 22.50

13

5155349000
ref: 13

CUSHION,HEADLAMP BRACKET

€ 4.50

14

5153049500291
ref: 14

BRACKET,HEADLAMP,RIGHT

€ 112.00

15

5154049500291
ref: 15

BRACKET,HEADLAMP,LEFT

€ 56.00

16

5131149500291
ref: 16

HEAD,STEERING STEM

€ 198.50

17

5621149500291
ref: 17

HOLDER,HANDLEBAR

€ 26.00

18

0910608013
ref: 18

BOLT

€ 3.00

19

0925006004
ref: 19

CAP(OD:14.5)

€ 1.50

20

5135349300A
ref: 20

NUT,STEM HEAD

€ 11.50

21

5135649300A
ref: 21

WASHER,STEERING STEM B

€ 4.00

22

0110710558
ref: 22

BOLT 10X55

€ 3.50

23

0832221108
ref: 23

WASHER

€ 2.50

24

0832121108
ref: 24

LOCK WASHER

€ 2.00

25

0831311105
ref: 25

NUT 10MM

€ 2.00

26

0110708508
ref: 26

BOLT 8X50

€ 3.00

27

0832221088
ref: 27

WASHER

€ 2.00

28

0832121088
ref: 28

LOCK WASHER

€ 2.00

29

0831311085
ref: 29

NUT,M8X1.25X12

€ 2.00

30

0110708558
ref: 30

BOLT 8X55

€ 3.00

31

0832221088
ref: 31

WASHER

€ 2.00

32

5145849000
ref: 32

NUT,FR FORK INNER TUBE

€ 5.00

33

5155449500291
ref: 33

COVER,FORK BRACKET,RIGHT

€ 12.00

34

5155749500291
ref: 34

COVER,FORK BRACKET,LEFT

€ 12.00

35

0926525008
ref: 35

TAPER,ROLLER BEARING

€ 48.50

36

5163134200
ref: 36

NUT,STEERING STEM

€ 23.00

37

5164340502
ref: 37

DUST SEAL,STEERING UPR

€ 8.00
