FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

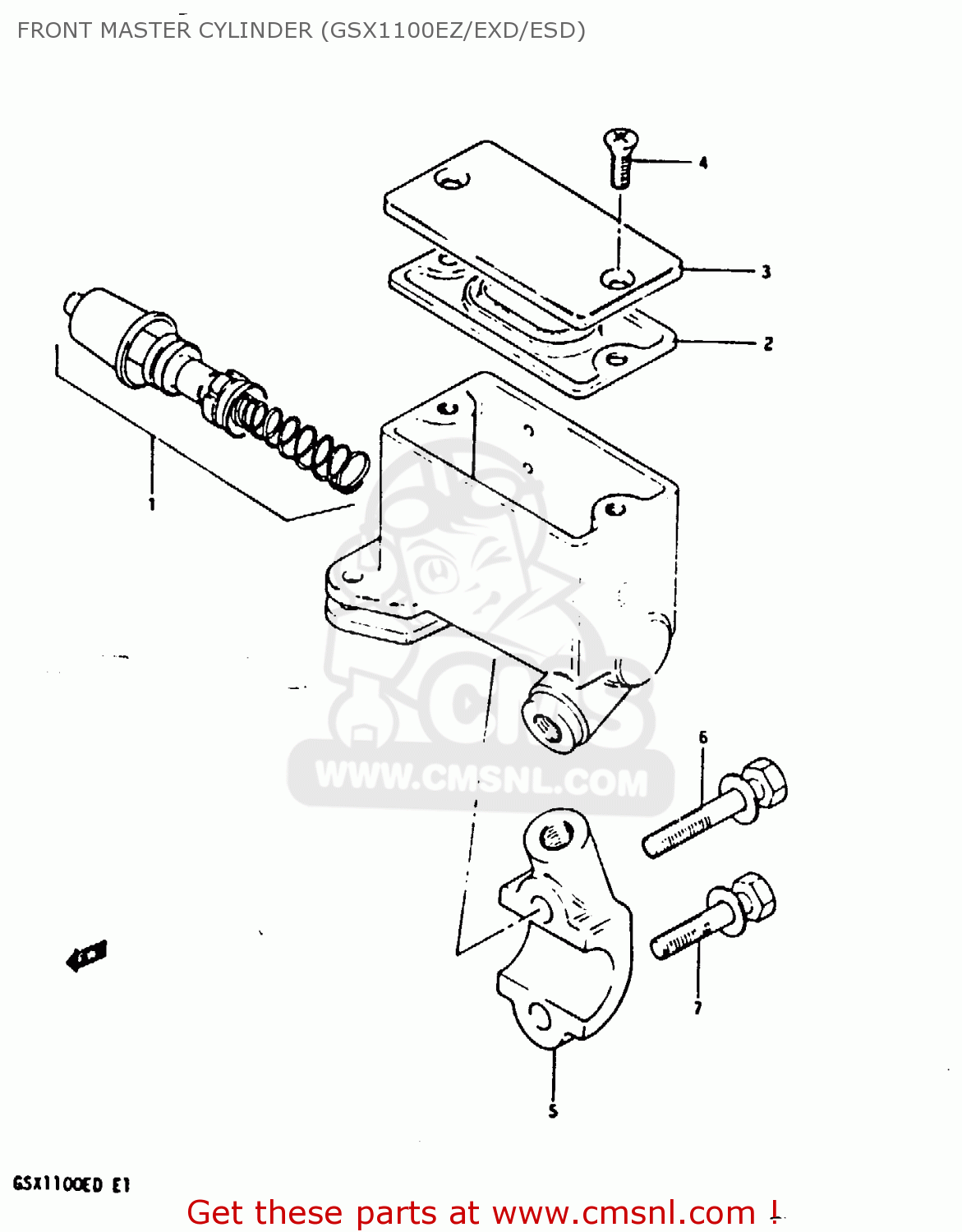

Front master cylinder (gsx1100ez/exd/esd) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

0

5960034210
ref: 0

CYLINDER ASSY, MASTER

€ 148.50

1

5960049830
ref: 1

PISTON & CUP SET

€ 46.50

2

5966749300
ref: 2

DIAPHRAGM,MASTER CYLINDER

€ 15.50

3

5966949300
ref: 3

CAP

€ 23.50

4

5969149300
ref: 4

SCREW,RESERVOIR CAP

€ 6.50

5

5967149000
ref: 5

HOLDER

€ 22.50

6

5969449001
ref: 6

BOLT,MASTER CYLINDER H

€ 3.00

7

5969349001
ref: 7

BOLT,MASTER CYLINDER H

€ 4.00
