CYLINDER HEAD

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

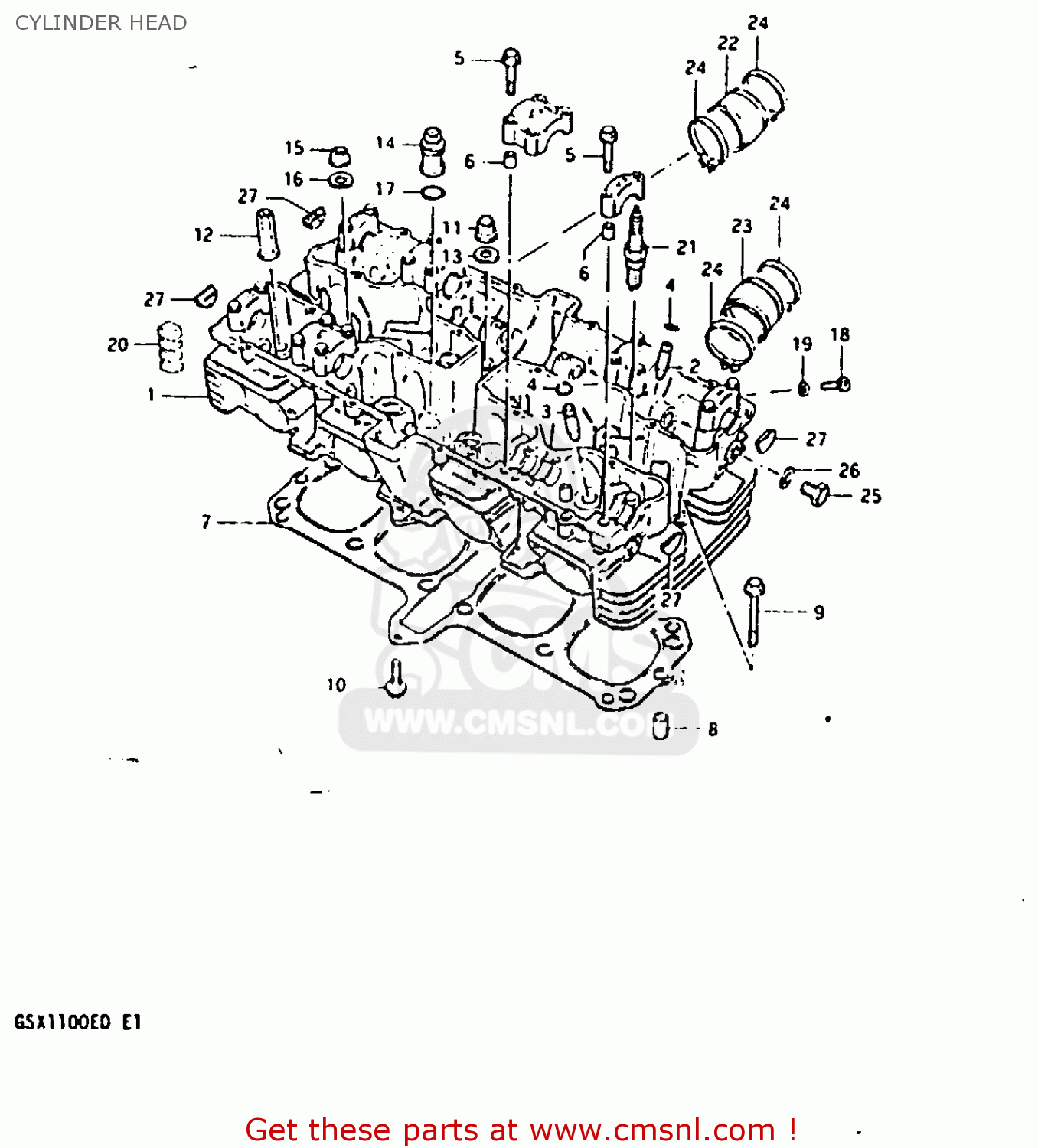

Cylinder head diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CYLINDER HEAD GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CYLINDER HEAD GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1-1

1110049250
ref: 1-1
MODEL Z

HEAD ASSY,CYLINDER

€ 1,678.00

1-2

1110049260
ref: 1-2
MODEL D

HEAD ASSY,CYLINDER

€ 1,624.50

2

1111549290
ref: 2

GUIDE,INTAKE VALVE

€ 19.50

3

1111549290
ref: 3

GUIDE,INTAKE VALVE

€ 19.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7-1

1114149202
ref: 7-1
MODEL Z

GASKET,CYLINDER HEAD (NAS)

€ 120.50

7-2

NOTUSED
ref: 7-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7-3

1114149202
ref: 7-3
MODEL D:E2, E4, E15,

GASKET,CYLINDER HEAD (NAS)

€ 120.50

8

0421111189
ref: 8

PIN

€ 2.00

9-1

0151706558
ref: 9-1
MODEL Z

BOLT

€ 2.50

9-2

0151706555
ref: 9-2
MODEL D

BOLT 6X55

€ 2.00

10-1

0151706308
ref: 10-1
MODEL Z

BOLT

€ 2.00

10-2

0151706305
ref: 10-2
MODEL D

BOLT 6X30

€ 2.50

11

0915910026
ref: 11

NUT

€ 6.00

12

0915910029
ref: 12

NUT

€ 59.50

13

0916810017
ref: 13

GASKET(10.5X22X2) (NAS)

€ 3.50

14

1114549200
ref: 14

NUT,CYLINDER HEAD SEAL

€ 12.50

15

0831616108
ref: 15

NUT

€ 2.00

16

0916010039
ref: 16

WASHER(10.5X22X2.3)

€ 2.50

17

0928017002
ref: 17

O RING(D:2.4,ID:16.8)

€ 3.50

18

0910605006
ref: 18

BOLT

€ 2.00

19

0916805010
ref: 19

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

20

1125148000
ref: 20

PAD,CYLINDER

€ 6.50

21-1

NOTUSED
ref: 21-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21-2

NOTUSED
ref: 21-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21-3

0948200149
ref: 21-3
E2, E4, E6, E15, E16

SPARK PLUG DR8ES-L

€ 3.50

21-4

0948200223
ref: 21-4
E2, E4, E6, E15, E16

PLUG,SPARK(X24ESR-U)

€ 3.50

22

1311149200
ref: 22

PIPE,INTAKE,R

€ 20.00

23

1312149200
ref: 23

PIPE,INTAKE,L

€ 20.00

24

0940252306
ref: 24

CLAMP

€ 6.00

25

0924714012
ref: 25

PLUG (14X12)

€ 3.50

26

0916814004
ref: 26

GASKET(14X19.2X2) (NAS)

€ 2.50

27

0924123002
ref: 27

PLUG

€ 8.50
