HEADLAMP HOUSING - FRONT FENDER

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

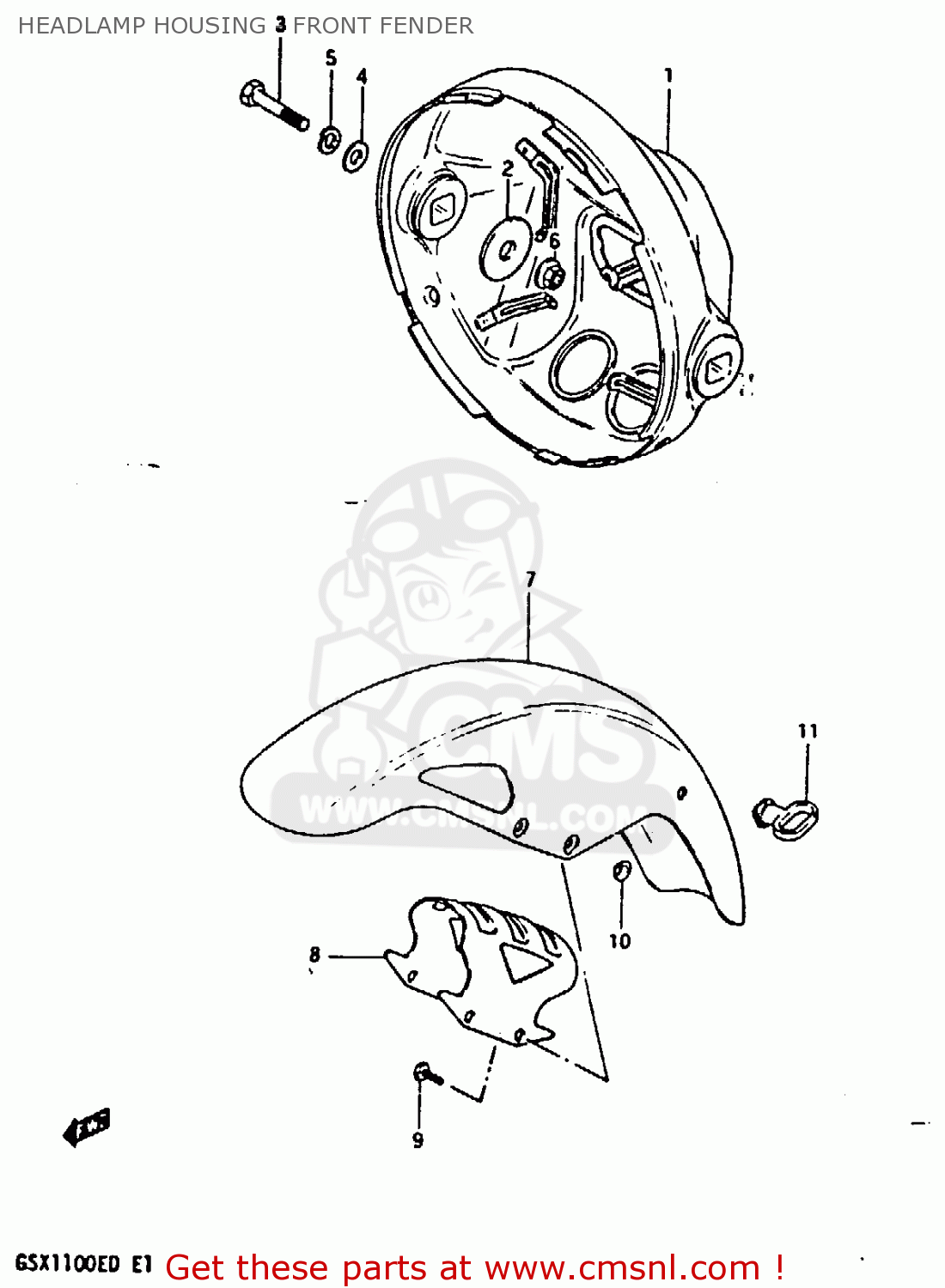

Headlamp housing - front fender diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

HEADLAMP HOUSING - FRONT FENDER GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)
HEADLAMP HOUSING - FRONT FENDER GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)
HEADLAMP HOUSING - FRONT FENDER GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)
prices are in EUR
ref
part #
description
quantity
1
5181045900291
ref: 1
HOUSING,HEADLAMP
€ 139.00
2
0916008002
ref: 2
WASHER (8.5X29X1.6)
0916008002
€ 2.00
3
0120408307
ref: 3
BOLT
0120408307
€ 2.50
4
0832211088
ref: 4
WASHER
0832211088
€ 2.00
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
0831616088
ref: 6
NUT
0831616088
€ 2.50
7-1
531114590114B
ref: 7-1
GSX1100Z/EZ/D/ED
FENDER,FRONT
531114590114B
€ 106.50
7-2
531114590113L
ref: 7-2
GSX1100D/ED
FENDER,FR
€ 106.50
7-3
531114590113Z
ref: 7-3
GSX1100XD/EXD/ESD
FENDER,FRONT
531114590113Z
€ 106.50
7-4
531114590117R
ref: 7-4
GSX1100XD/EXD
FENDER,FRONT
€ 106.50
7-5
531114590116D
ref: 7-5
GSX1100ESD
FENDER,FRONT
€ 106.50
8
5311445900
ref: 8
BRACE,FRONT FENDER
€ 19.00
9
0910008135
ref: 9
BOLT 8X16
0910008135
€ 3.00
10
0916908032
ref: 10
WASHER
0916908032
€ 11.50
11
5862121203A
ref: 11
GUIDE,CABLE
€ 7.50
