CHAIN CASE - REAR SHOCK ABSORBER (GSX1100ED/EXD,ESD)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

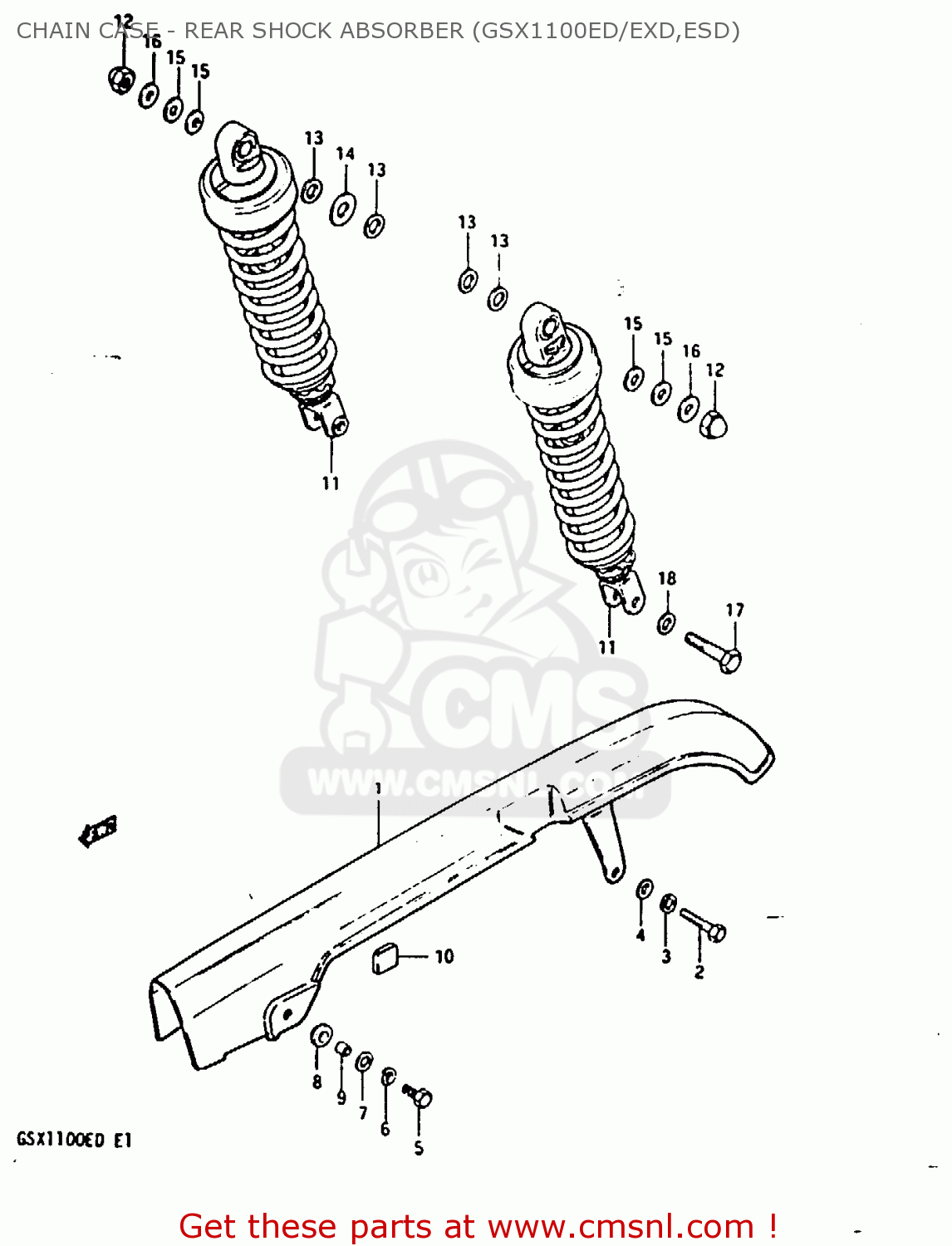

Chain case - rear shock absorber (gsx1100ed/exd,esd) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CHAIN CASE - REAR SHOCK ABSORBER (GSX1100ED/EXD,ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CHAIN CASE - REAR SHOCK ABSORBER (GSX1100ED/EXD,ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1

6131049501291
ref: 1

CASE,CHAIN

€ 131.00

2

0110706258
ref: 2

BOLT

€ 2.00

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

0832221068
ref: 4

WASHER

€ 2.00

5

0110706128
ref: 5

BOLT

€ 2.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0916006007
ref: 7

WASHER

€ 2.00

8

0932008026
ref: 8

CUSHION

€ 0.00

9

0918006001
ref: 9

SPACER(6.2X8.3X5.7)

€ 2.00

10

0925120001
ref: 10

CAP

€ 0.00

11-1

6210049540
ref: 11-1

SHOCK ABSORBER

€ 0.00

11-2

6210049570
ref: 11-2
GSX1100ESD

SHOCK ABSORBER

€ 361.00

12

0831311108
ref: 12

NUT, LOWER LH

€ 2.50

13

0832211128
ref: 13

WASHER

€ 2.00

14

0916012012
ref: 14

WASHER (12.5X24X3.2)

€ 2.50

15

0916010001
ref: 15

WASHER

€ 2.00

16

0916010033
ref: 16

WASHER(10.5X24X3.2)

€ 2.00

17

0910410002
ref: 17

BOLT(10X36)

€ 4.50

18

0832211108
ref: 18

WASHER

€ 2.50
