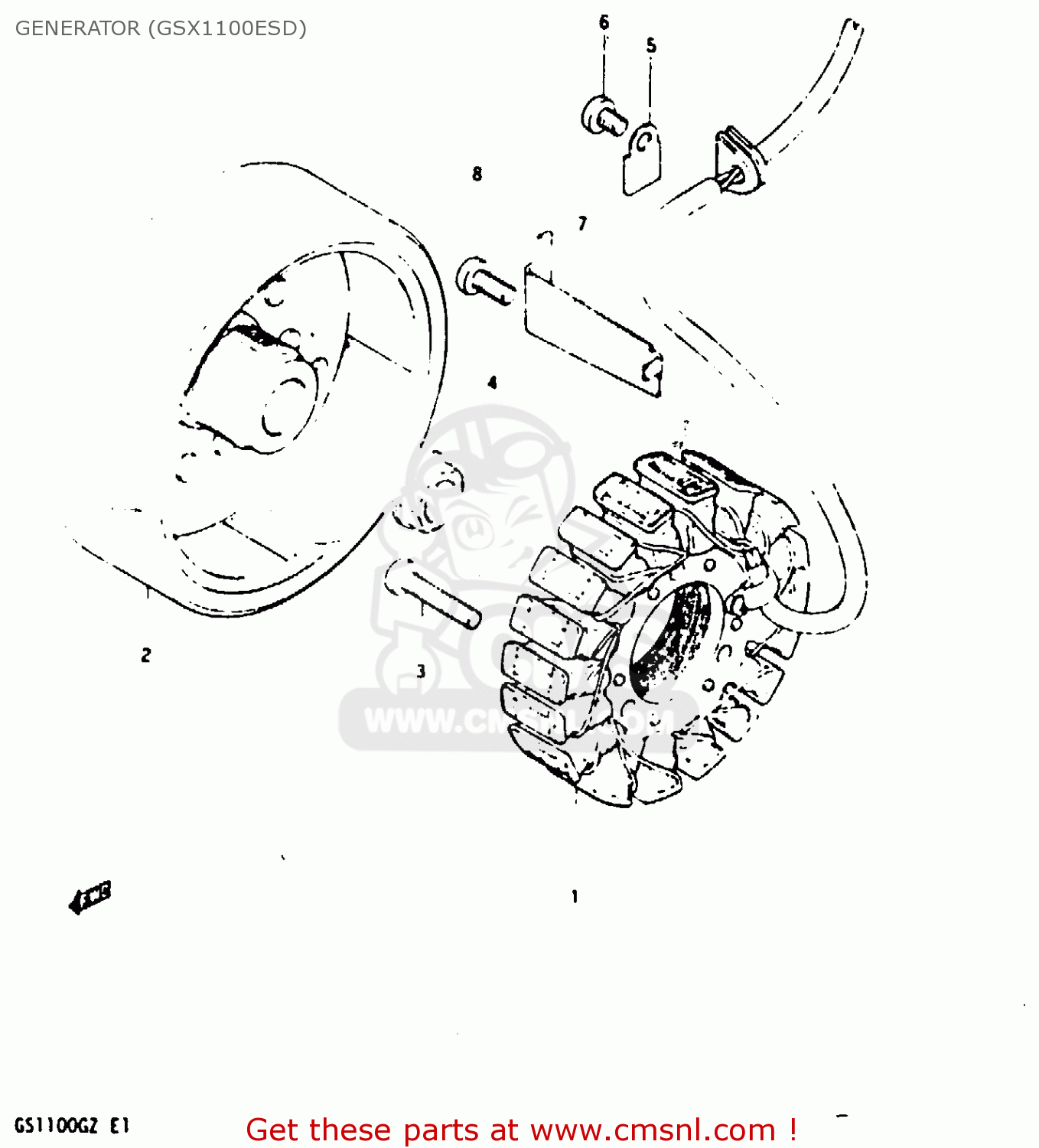

GENERATOR (GSX1100ESD)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

Generator (gsx1100esd) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

GENERATOR (GSX1100ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

GENERATOR (GSX1100ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1

3140149420
ref: 1

STATOR ASSEMBLY

€ 405.50

2

3140249330
ref: 2

ROTOR ASSY

€ 403.50

3

0211206308
ref: 3

SCREW 6X30

€ 2.50

4

3179249200
ref: 4

NUT,GENERATOR ROTOR

€ 10.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6

0211205088
ref: 6

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8

0211206108
ref: 8

SCREW

€ 1.50
