FRAME COVER (GSX1100ESD)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

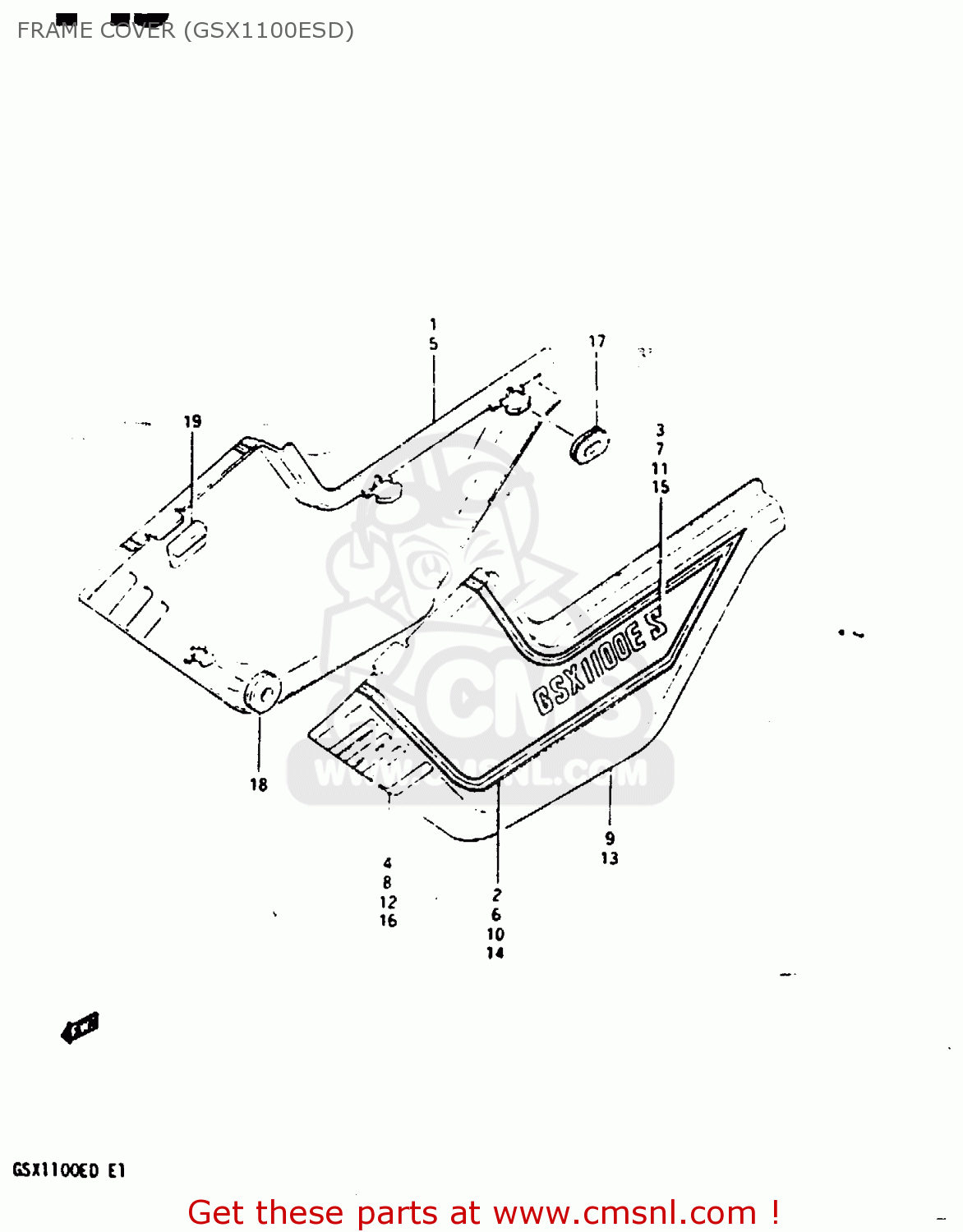

Frame cover (gsx1100esd) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRAME COVER (GSX1100ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRAME COVER (GSX1100ESD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1

471104953086S
ref: 1

COVER, FRAME RH

€ 77.00

2

681304951082S
ref: 2

TAPE SET,FRAME COVER

€ 0.00

3

681314954069P
ref: 3

EMBLEM, LH

€ 23.50

4

6813449500
ref: 4

LABEL, DENT

€ 0.00

5

471104953091J
ref: 5

COVER, FRAME RH

€ 77.00

6

681304951093K
ref: 6

TAPE SET,FRAME COVER,RIGHT

€ 23.50

7

681314954073H
ref: 7

EMBLEM,FRAME COVER

€ 23.50

8

6813449500
ref: 8

LABEL, DENT

€ 0.00

9

472104953086S
ref: 9

COVER, FRAME LH

€ 72.50

10

681404951082S
ref: 10

TAPE SET,FRAME COVER,LEFT

€ 23.00

11

681314954069P
ref: 11

EMBLEM, LH

€ 23.50

12

6814449500
ref: 12

EMBLEM,FRAME COVER,CENTER

€ 3.00

13

472104953091J
ref: 13

COVER, FRAME LH

€ 72.50

14

681404951093K
ref: 14

TAPE SET,FRAME COVER

€ 0.00

15

681314954073H
ref: 15

EMBLEM,FRAME COVER

€ 23.50

16

6814449500
ref: 16

EMBLEM,FRAME COVER,CENTER

€ 3.00

17

0932003005
ref: 17

CUSHION

€ 2.00

18

0932008018
ref: 18

CUSHION

€ 4.00

19

4711745000
ref: 19

CUSHION,FRAME COVER

€ 1.50
