SEAT TAIL COVER (MODEL Z)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

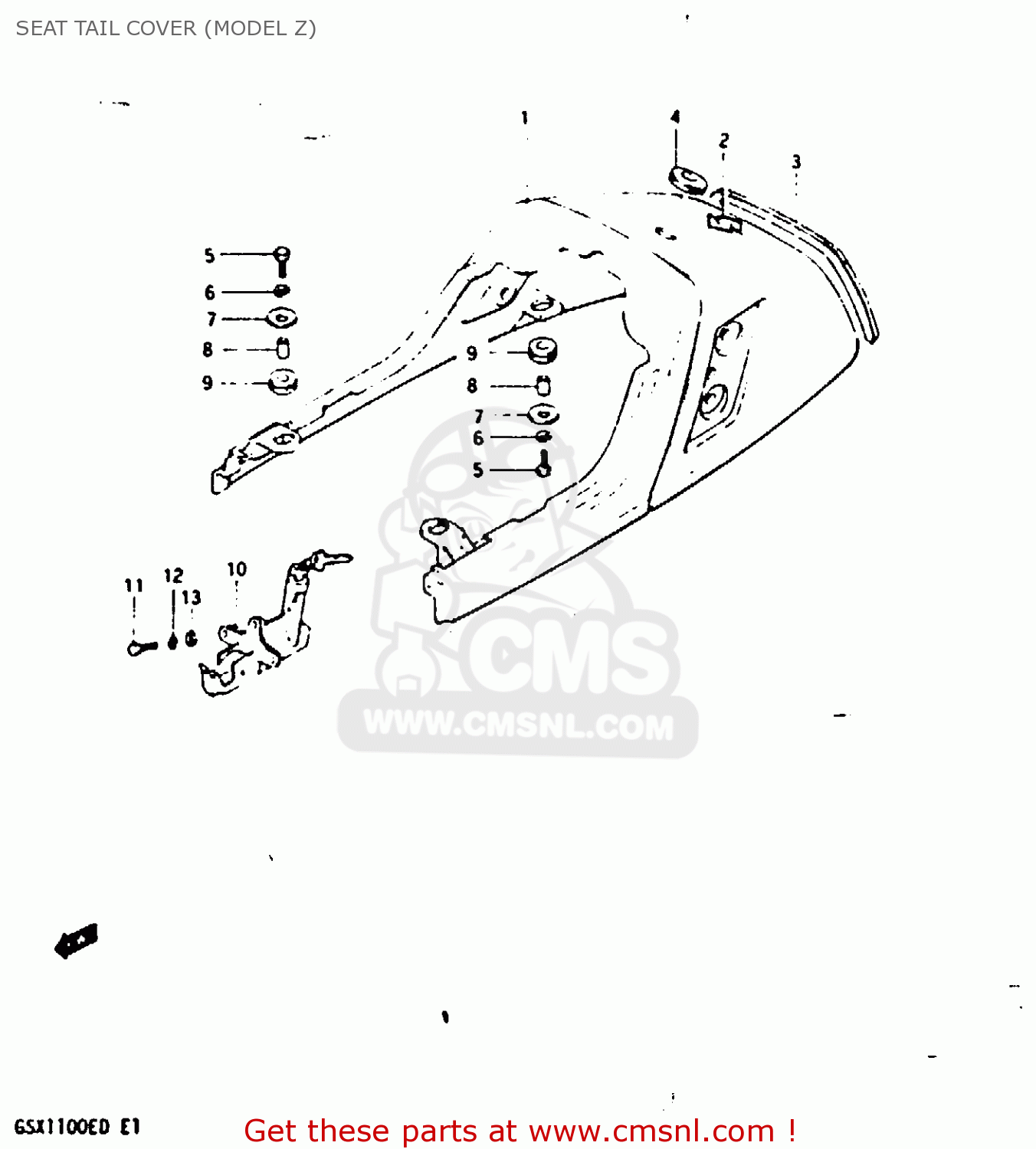

Seat tail cover (model z) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

SEAT TAIL COVER (MODEL Z) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)
SEAT TAIL COVER (MODEL Z) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)
SEAT TAIL COVER (MODEL Z) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)
prices are in EUR
ref
part #
description
quantity
1
455114950014B
ref: 1
COVER,SEAT TAIL
€ 120.50
2
681664950067U
ref: 2
EMBLEM (S)
681664950067U
€ 4.50
3
4556249500
ref: 3
RUBBER,BLIND,SEAT TAIL COVER
4556249500
€ 20.00
4
4552249200
ref: 4
GROMMET,SEAT LOCK HOLE
4552249200
€ 5.50
5
0110706208
ref: 5
BOLT
0110706208
€ 2.00
6
0832121068
ref: 6
LOCK WASHER
0832121068
€ 2.50
7
0916006012
ref: 7
WASHER(6,5X22X1.6)
€ 2.00
8
0918007004
ref: 8
SPACER(6.5X10.5X12)
0918007004
€ 2.50
9
0932010011
ref: 9
CUSHION
0932010011
€ 5.50
10
9570049830
ref: 10
LOCK SET,SEAT
9570049830
€ 81.50
11
0110706128
ref: 11
BOLT
0110706128
€ 2.00
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
0832221068
ref: 13
WASHER
0832221068
€ 2.00
