SEAT

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

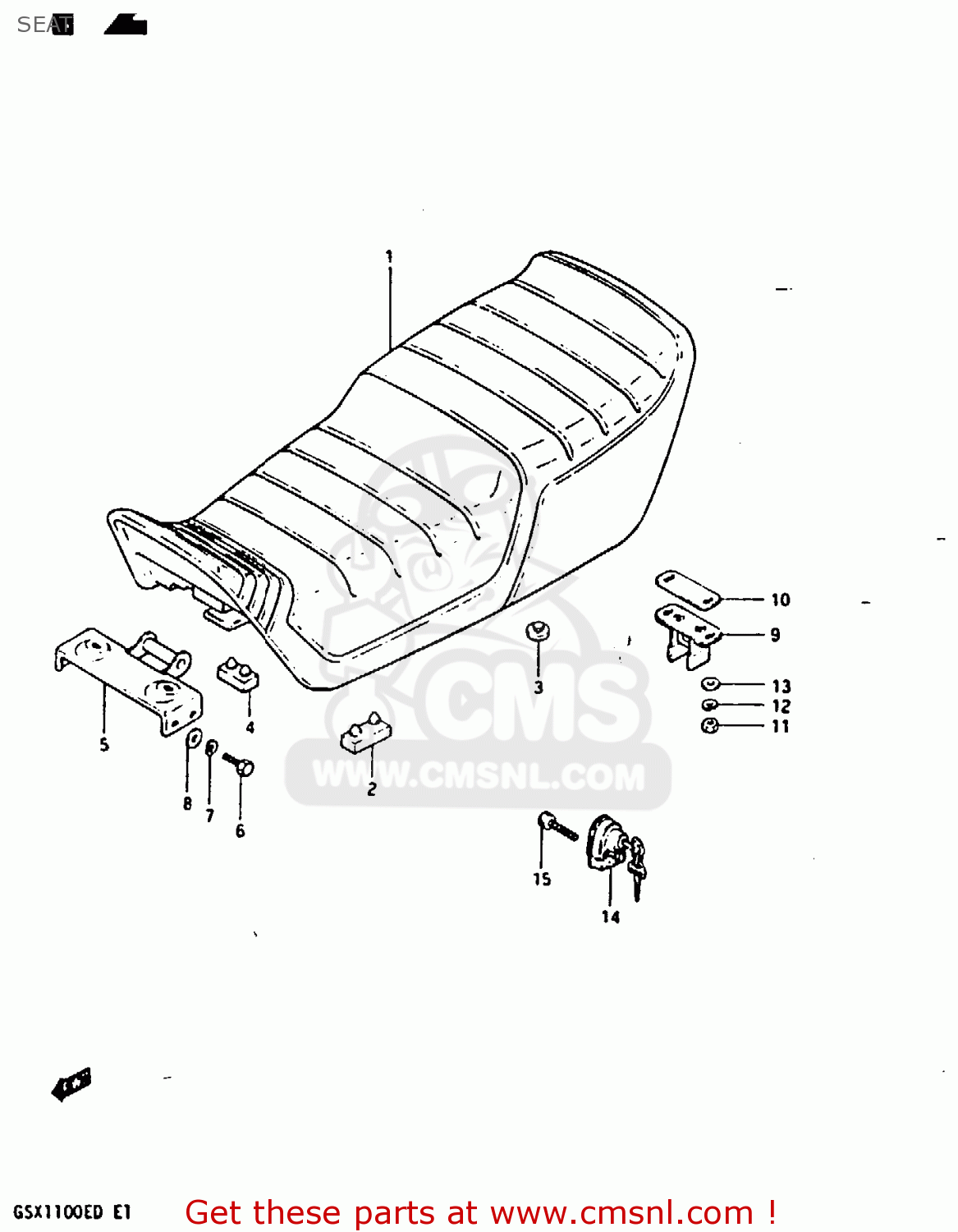

Seat diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

SEAT GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

SEAT GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1-1

451004950050C
ref: 1-1
MODEL Z

SEAT ASSY (BLACK)

€ 524.50

1-2

451004950150C
ref: 1-2
MODEL D

SEAT ASSY (BLACK)

€ 524.50

1-3

451004950248H
ref: 1-3
GSX1100ESD

SEAT ASSY (BLACK)

€ 271.50

2

0932108009
ref: 2

CUSHION

€ 4.00

3

0932110007
ref: 3

CUSHION

€ 4.50

4

0932108010
ref: 4

CUSHION

€ 4.00

5

4527049500
ref: 5

PLATE,SEAT HOOK

€ 12.50

6

0110405108
ref: 6

BOLT

€ 1.50

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

0832221058
ref: 8

WASHER

€ 2.50

9

4521044101
ref: 9

STRIKER,SEAT LOCK

€ 32.50

10

4521744100
ref: 10

SHIM,SEAT LOCK STRIKER

€ 4.50

11

0831022068
ref: 11

NUT 6MM

€ 2.50

12

0832121068
ref: 12

LOCK WASHER

€ 2.50

13

0832221068
ref: 13

WASHER

€ 2.00

14

9570034210
ref: 14

LOCK ASSY,HELMET

€ 59.00

15

0910605008
ref: 15

BOLT 5X25

€ 2.00
