FRONT WHEEL (GSX1100EZ)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

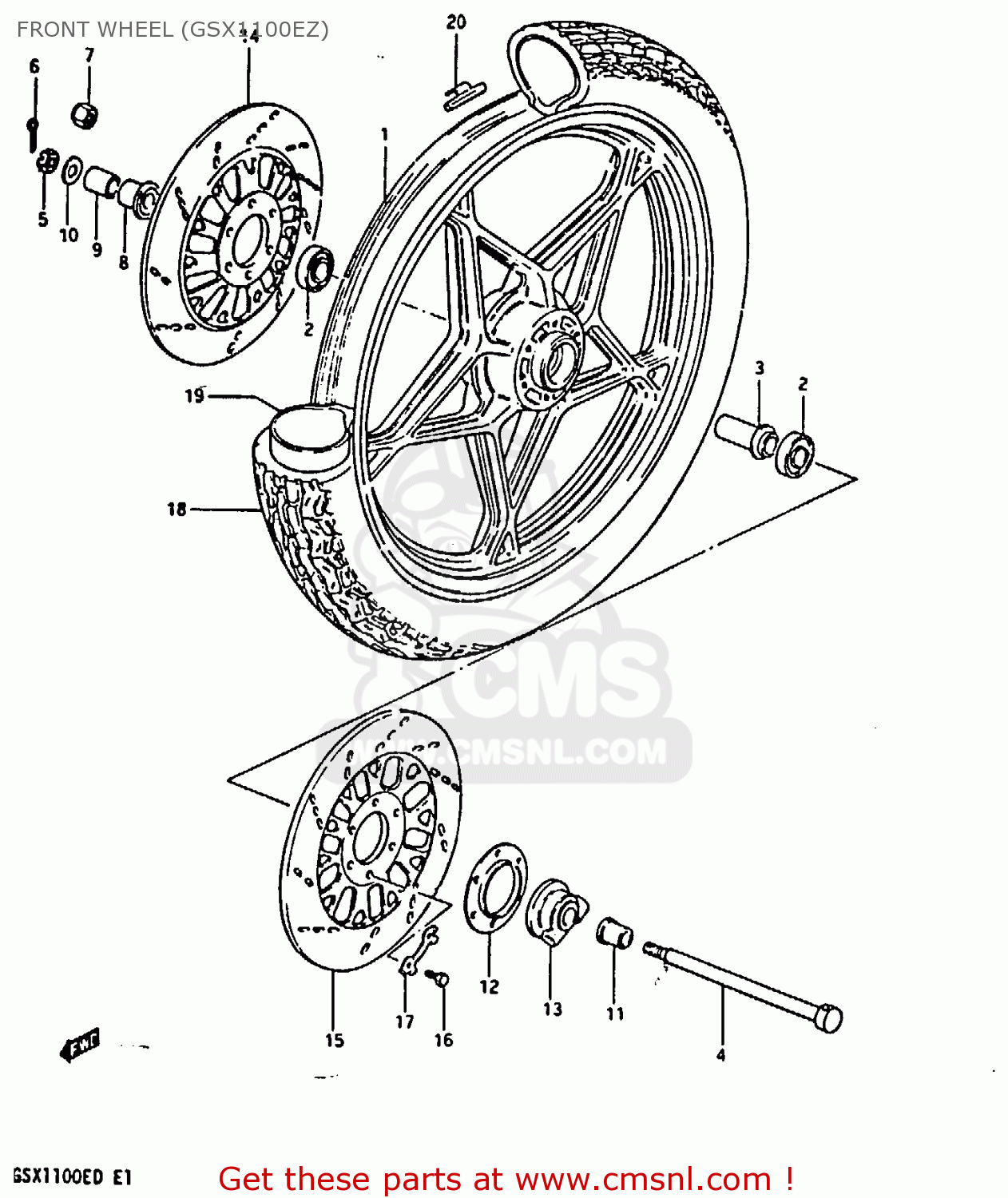

Front wheel (gsx1100ez) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRONT WHEEL (GSX1100EZ) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRONT WHEEL (GSX1100EZ) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1

541114930012U
ref: 1
DARK GRAY

WHEEL, FRONT (19X1.85) (GRAY)

€ 491.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471149000
ref: 4

AXLE,FR

€ 79.50

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

9

5474149300
ref: 9

SPACER,FR AXLE,R

€ 19.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

5474149000
ref: 11

SPACER,FR AXLE,L

€ 16.50

12

5487145010
ref: 12

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

13

5460018401
ref: 13

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

14

5921145250
ref: 14

DISC,FR BRAKE,R

€ 149.00

15

5922145250
ref: 15

DISC,FR BRAKE,L

€ 149.00

16

0910008140
ref: 16

BOLT(8X25)

€ 2.00

17

0916908016
ref: 17

WASHER

€ 3.50

18

5510049530
ref: 18
BS

TIRE,FRONT

€ 319.00

19

5520015030
ref: 19

TUBE,INNER

€ 41.00

20-1

5541149300
ref: 20-1

BALANCER,WHEEL

€ 7.00

20-2

5541249300
ref: 20-2

BALANCER,WHEEL (30G)

€ 4.00
