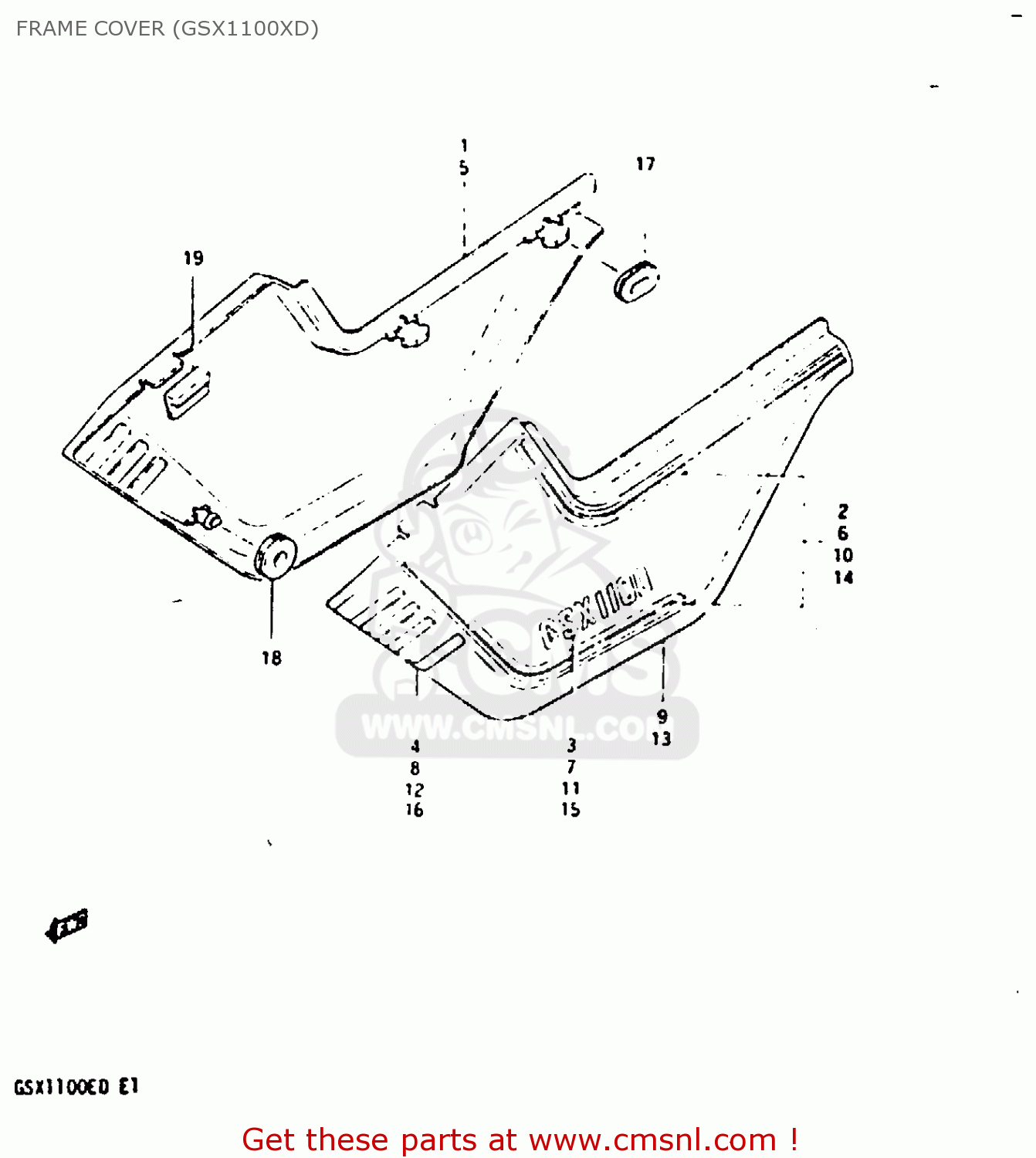

FRAME COVER (GSX1100XD)

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

Frame cover (gsx1100xd) diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRAME COVER (GSX1100XD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

FRAME COVER (GSX1100XD) GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1

471104955013Z
ref: 1

COVER, FRAME RH (BLACK)

€ 0.00

2

681304952067N
ref: 2

TAPE SET, FRAME COVER RH

€ 0.00

3

6813149520764
ref: 3

EMBLEM, LH (BLACK)

€ 0.00

4

6813449500
ref: 4

LABEL, DENT

€ 0.00

5

471104955017R
ref: 5

COVER, FRAME RH (RED)

€ 0.00

6

681304952065M
ref: 6

TAPE SET, FRAME COVER RH

€ 0.00

7

6813149520764
ref: 7

EMBLEM, LH (BLACK)

€ 0.00

8

6813449500
ref: 8

LABEL, DENT

€ 0.00

9

472104955013Z
ref: 9

COVER, FRAME LH (BLACK)

€ 0.00

10

681404952067N
ref: 10

TAPE SET, FRAME COVER LH

€ 0.00

11

6813149520764
ref: 11

EMBLEM, LH (BLACK)

€ 0.00

12

6814449500
ref: 12

EMBLEM,FRAME COVER,CENTER

€ 3.00

13

472104955017R
ref: 13

COVER, FRAME LH (RED)

€ 0.00

14

681404952065M
ref: 14

TAPE SET, FRAME COVER LH

€ 0.00

15

6813149520764
ref: 15

EMBLEM, LH (BLACK)

€ 0.00

16

6814449500
ref: 16

EMBLEM,FRAME COVER,CENTER

€ 3.00

17

0932003005
ref: 17

CUSHION

€ 2.00

18

0932008018
ref: 18

CUSHION

€ 4.00

19

4711745000
ref: 19

CUSHION,FRAME COVER

€ 1.50
