CRANKSHAFT

GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

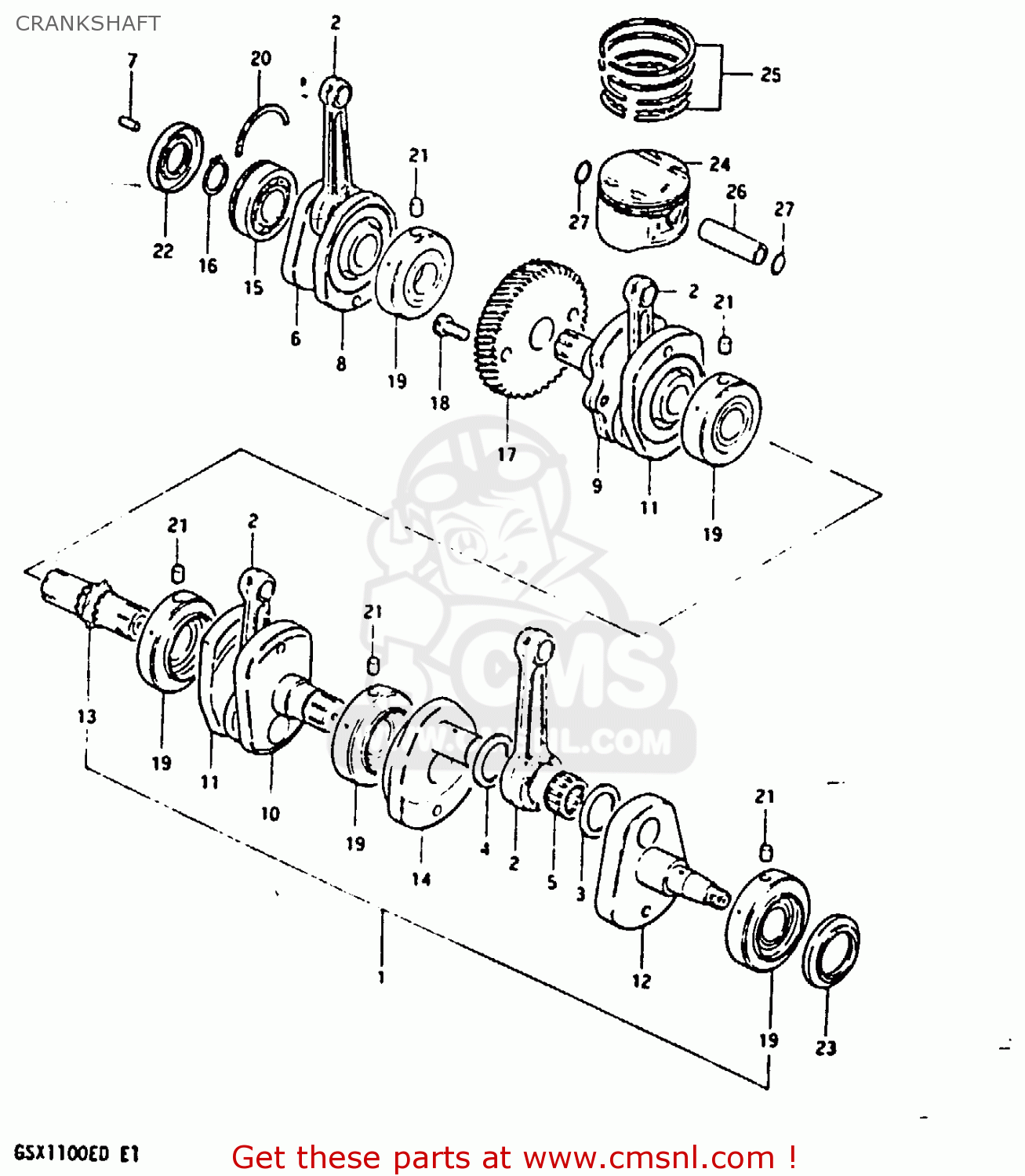

Crankshaft diagram GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CRANKSHAFT GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

CRANKSHAFT GSX1100ES 1983 (D) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1-1

1220049303
ref: 1-1
MODEL Z

CRANKSHAFT ASSEMBLY

€ 3,492.00

1-2

1220049603
ref: 1-2
MODEL D

CRANKSHAFT ASSEMBLY

€ 2,629.50

2

1216149201
ref: 2

CONNECTING ROD

€ 184.50

3

0916031002
ref: 3

WASHER(31X48.5X1)

€ 7.00

4

0916031003
ref: 4

WASHER(31X48.5X2)

€ 11.50

5

0926331004
ref: 5

BEARING(31X39X21)

€ 53.00

6

1222049202
ref: 6

CRANKSHAFT,RIGHT

€ 153.00

7

0422104089
ref: 7

PIN

€ 1.50

8

1223049201
ref: 8

WEB,CRANK

€ 218.00

9

1224149202
ref: 9

CRANKSHAFT

€ 153.00

10

1227149202
ref: 10

CRANKSHAFT,MIDDLE,LEFT

€ 89.50

11

1225049201
ref: 11

WEB,CRANK,MIDDLE

€ 153.00

12-1

1226149302
ref: 12-1
MODEL Z

CRANKSHAFT,LEFT

€ 216.00

12-2

1226149601
ref: 12-2
MODEL D

CRANKSHAFT,LH

€ 211.50

13

1228149200
ref: 13

SHAFT,TIMING CHAIN DRIVE

€ 93.50

14

1229049201
ref: 14

WEB,CRANK,LEFT

€ 228.50

15

0926230033
ref: 15

BEARING(30X72X19)

€ 47.00

16

0833111308
ref: 16

CIRCLIP,30MM

€ 3.00

17

2111149002
ref: 17

GEAR,PRIMARY DRIVE

€ 56.50

18

0910608006
ref: 18

BOLT

€ 3.00

19

0926432005
ref: 19

BEARING

€ 138.00

20

0939072004
ref: 20

C RING

€ 3.00

21

0422107129
ref: 21

PIN

€ 1.50

22

0928330021
ref: 22

SEAL,OIL(30X72X11)

€ 22.00

23

0928948002
ref: 23

SEAL,OIL(47.3X60X6.5)

€ 12.00

24-1

1211149203
ref: 24-1
MODEL Z

PISTON (72.00MM)

€ 1,114.50

24-2

1211149221
ref: 24-2
MODEL D

PISTON (72.00MM)

€ 1,114.50

24-3

1211149203050
ref: 24-3
OPT, MODEL Z

PISTON

€ 640.00

24-4

1211149221050
ref: 24-4
OPT, MODEL D

PISTON

€ 640.00

24-5

1211149203100
ref: 24-5
OPT, MODEL Z

PISTON

€ 104.00

24-6

1211149221100
ref: 24-6
OPT, MODEL D

PISTON (73.00MM)

€ 104.00

25-1

1214049220
ref: 25-1

RING SET,PISTON

€ 67.00

25-2

1214049220050
ref: 25-2
OPT

RING SET,PISTON (OS:0.5)

€ 59.00

25-3

1214049220100
ref: 25-3
OPT

RING SET,PISTON (OS:1.0)

€ 38.50

26

1215115500
ref: 26

PIN,PISTON

€ 15.00

27

0938118002A
ref: 27

CIRCLIP,PISTON PIN

€ 1.50

all assemblies
