BATTERY

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

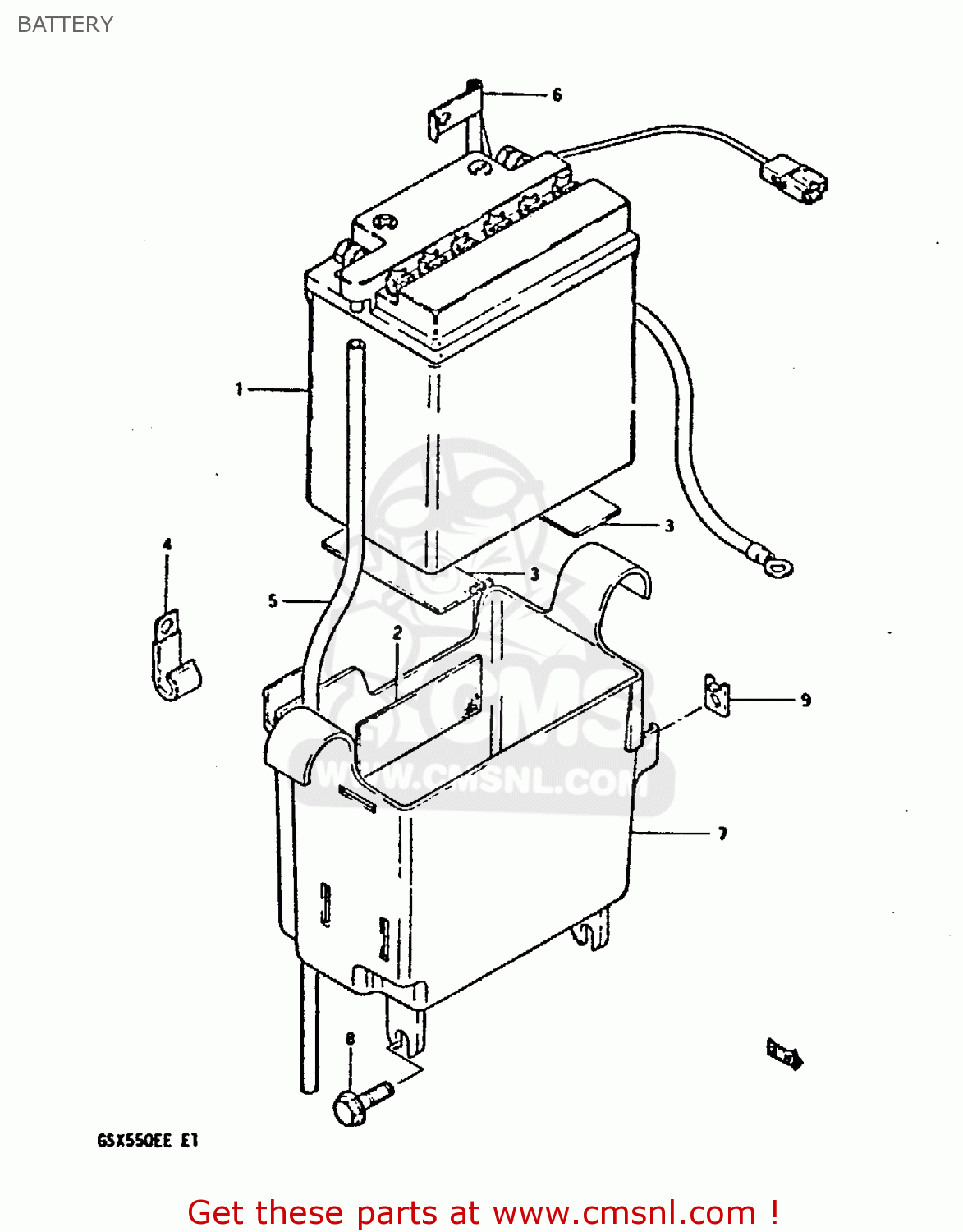

Battery diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

3361008310
ref: 1

BATTERY(YB10L-B,12V12AH)

€ 78.50

3365234000
ref: 2

PROTECTOR(30X80X2)

€ 4.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0940309303
ref: 4

CLAMP

€ 5.50

3368031003
ref: 5

HOSE,BATTERY EXHAUST

€ 4.50

3385043400
ref: 6

WIRE,STARTER MOTOR LEAD

€ 10.50

4154143400
ref: 7

HOLDER,BATTERY

€ 20.50

0153406165
ref: 8

BOLT

€ 2.50

4154843400
ref: 9

WASHER,IGNITER

€ 0.00
